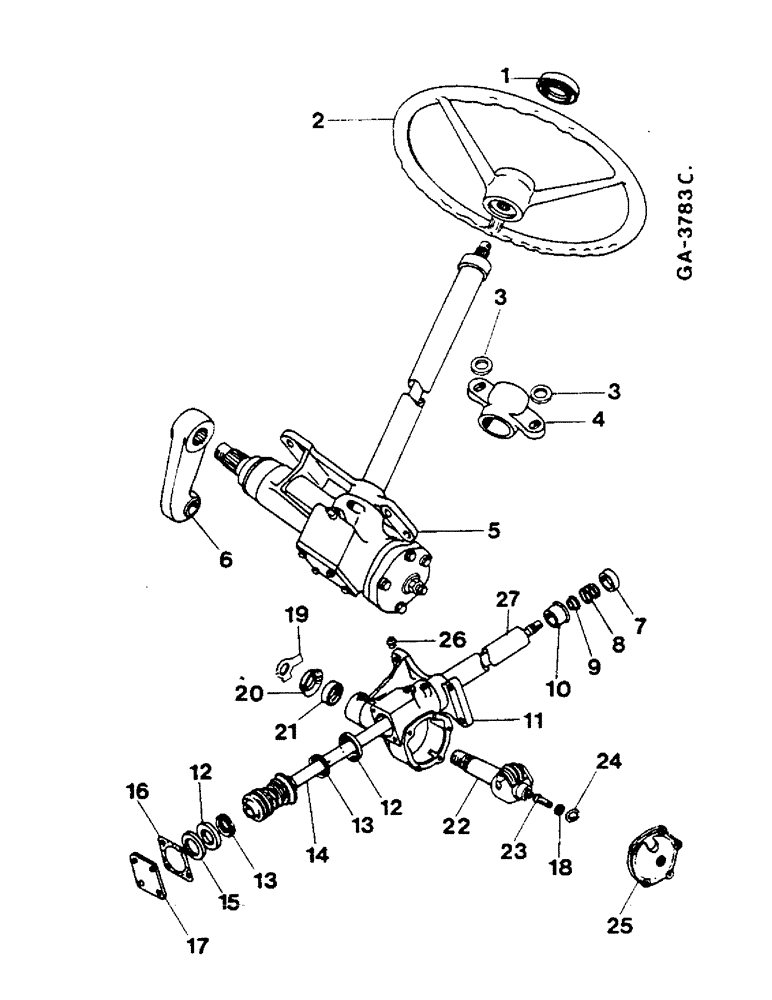

Запчасти Case IH 844S (05-2) - STEERING (04) - STEERING

1

790680R1

BUTTON

CAP, STEERING WHEEL - "PETRI" + "VDM" -

1шт.

1

3232081R1

CAP

STEERING WHEEL - "KS " -

1шт.

2

3057154R91

WHEEL (STEERING)

- "PETRI" -

1шт.

2

3057155R91

STEERING WHEEL

- "VDM" -

1шт.

2

3232080R1

SCREW

- "KS" -

1шт.

3

50793H

WASHER

4шт.

4

3059783R1

BEARING CARRIER

STEERING COLUMN

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

5

3145715R91

STEERING BOX

MECHANISM CPTE - WITH 7-27

1шт.

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

4шт.

103322

LOCK WASHER,7/16"

4шт.

3057161R1

SPLIT PIN/SAFETY PIN

14 X 20 MM

2шт.

6

3137709R1

ARM

DROP

1шт.

7

3058219R1

SEALING RING

OIL

1шт.

8

3131820R2

COIL SPRING

1шт.

9

715872R1

RING

CENTERING

1шт.

10

715871R91

BUSHING

1шт.

11

3216149R1

HOUSING

1шт.

12

3058221R1

BEARING, CUP

RACE

2шт.

13

3058220R91

ROLLER BEARING

CONE

2шт.

14

3216137R1

WORM

STEERING

1шт.

934726R1

NUT

M16

1шт.

3142834R1

LOCK WASHER

1шт.

15

3058224R1

WASHER

1шт.

16

3148820R1

DISC

SHIM, 0.10 MM

1шт.

16

3148821R1

DISC

SHIM, 0.12 MM

1шт.

16

3148822R1

ADJUSTING PLATE

SHIM, 0.15 MM

1шт.

16

3148823R1

SHIM

0.30 MM - AS REQUIRED

1шт.

17

3131713R1

FLANGE

ADJUSTING

1шт.

931599R1

SCREW,M8 x 25mm, Cl 8.8

SPARE PART BOLT, M8 X 25 MM

4шт.

18

3216140R1

SHIM

2.10 MM

1шт.

18

3216141R1

SHIM

2.15 MM

1шт.

18

3216142R1

DISC

SHIM, 2.20 MM

1шт.

18

3216143R1

SHIM

2.25 MM

1шт.

18

3216144R1

SHIM

2.30 MM

1шт.

18

3216145R1

SHIM

2.35 MM

1шт.

18

3216146R1

RING

SHIM, 2.40 MM

1шт.

18

3216147R1

DISC

SHIM, 2.45 MM

1шт.

18

3216148R1

WASHER

SHIM, 2.50 MM - AS REQUIRED

1шт.

19

934273R1

WASHER

WASHER, LOCK

1шт.

20

3142833R1

SEAL

DUST

1шт.

21

3131687R1

OIL SEAL

1шт.

22

3216150R91

SHAFT

- WITH 18, 23, 24

1шт.

934840R1

NUT

M30

1шт.

23

3058230R1

ADJUSTMENT SCREW

ADJUSTING

1шт.

NUT, M14

1шт.

24

715849R2

RING, SNAP

RING SNAP RETAINING

1шт.

25

3058228R2

COVER

GEAR HOUSING

1шт.

931599R1

SCREW,M8 x 25mm, Cl 8.8

SPARE PART BOLT, M8 X 25 MM

5шт.

26

3058223R1

PLUG

OIL

1шт.

27

3216138R1

COLUMN JACKET

1шт.
