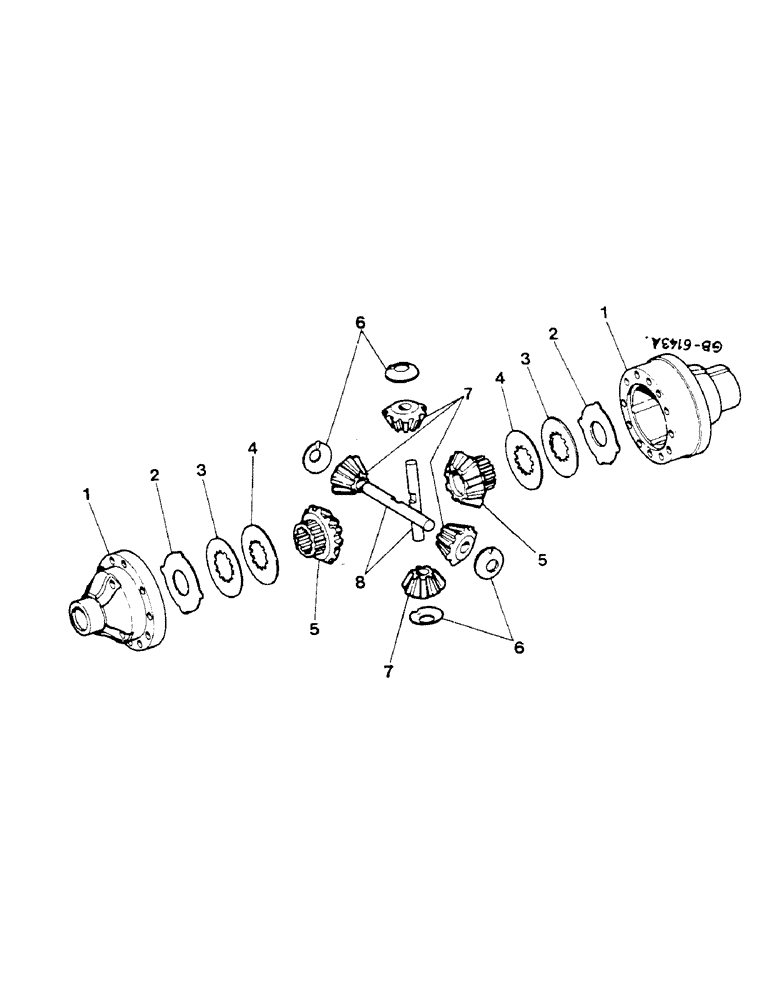

Запчасти Case IH 844S (07-106) - DISC TYPE DIFFERENTIAL, APL 3052 (04) - Drive Train

1

3216741R91

CASE

DIFFERENTIAL

1шт.

934645R1

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

12шт.

2

3216742R1

CLUTCH PLATE,60mm ID x 90.5mm OD x 1.5mm Thk

CLUTCH OUTER

8шт.

3

3216743R1

PLATE

CLUTCH INNER

6шт.

4

3216746R1

PLATE, THRUST

2.8 MM

2шт.

4

3216745R1

WASHER

PLATE, 2.9 MM

1шт.

4

3216744R1

PLATE, THRUST

3.0 MM - AS REQUIRED

1шт.

5

3216747R1

GEAR

BEVEL

2шт.

6

3216749R1

WASHER

4шт.

7

3216748R1

PINION

GEAR

4шт.

8

3216750R1

DIFF. SPIDER

AXLE

2шт.
