Запчасти Case IH 844S (07-100) - FRONT AXLE, APL 3052 (04) - Drive Train

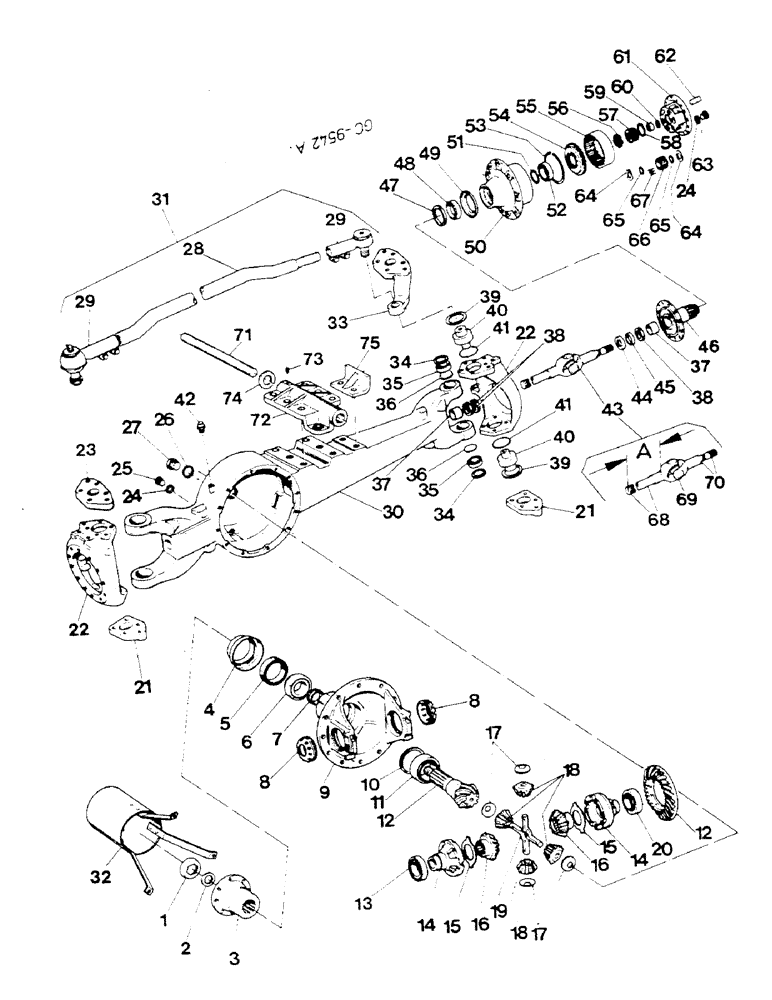

Схема запчастей Case IH 844S - (07-100) - FRONT AXLE, APL 3052 (04) - Drive Train
46
15
48
29
40
52
73
70
29
4
34
50
45
7
38
25
66
53
20
6
75
16
22
61
15
69
19
68
27
34
21
24
37
37
13
32
14
72
5
44
40
43
67
74
39
33
39
16
11
10
8
14
26
36
17
23
18
41
64
1
56
12
62
28
47
42
8
60
18
63
22
55
64
51
35
31
21
71
38
24
57
41
30
36
3
59
65
12
65
58
17
49
35
9
2
54

Артикул

Название

Примечание

Количество

1

3146651R1

PLATE, LOCKING

SHEET

1шт.

2

3146650R1

WASHER

1шт.

3

3146653R1

FLANGE

DRIVE

1шт.

3223426R1

SCREW

M8 x 35

8шт.

3223425R1

LOCK NUT

M8

8шт.

4

3146654R1

SLINGER

DEFLECTOR

1шт.

5

3146649R1

SEAL, OIL

1шт.

6

406535R91

ROLLER BEARING,1.5005" ID x 3.251" OD x 1.1643, 0.9063"

1шт.

6

530745R1

BEARING, CUP

1шт.

7

3223200R1

RING

BUSHING

1шт.

8

3134297R1

NUT

ADJUSTING

2шт.

9

3146646R1

HOUSING

1шт.

3222867R1

BOLT

BOLT, M10 X 30 MM

7шт.

3229110R1

LOCK BOLT,M10 x 40

5шт.

932671R1

LOCK PIN,M6 x 30, Slotted

Cotter

2шт.

10

3134949R1

DISC

SHIM, 0.1 MM

1шт.

10

3134303R1

DISC

SHIM, 0.2 MM

1шт.

10

3134302R1

SHIM

0.3 MM

1шт.

10

3134301R1

SHIM

0.5 MM

1шт.

10

3224747R1

DISC

SHIM, 1.2 MM

1шт.

10

3224746R1

DISC

SHIM, 1.5 MM

1шт.

10

3224745R1

DISC

SHIM, 1.8 MM

1шт.

10

3224744R1

DISC

SHIM, 2.0 MM - AS REQUIRED

1шт.

11

298033R91

TAPERED BEARING,53.98mm ID x 36.51mm W

CONE

1шт.

11

107577R1

BEARING, CUP

CUP

1шт.

12

3221720R91

GEAR-SET

SHAFT, WITH BEVEL GEAR

1шт.

931590R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

931589R1

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

8шт.

934208R1

NUT

M26

1шт.

3146657R1

LOCK WASHER

WASHER

12шт.

13

659458R91

ROLLER BEARING

1шт.

13

659459R1

BEARING, CUP

CUP

1шт.

14

3146656R91

HOUSING

1шт.

15

3146661R1

THRUST WASHER

2шт.

16

3221075R1

GEAR

BEVEL

2шт.

17

3146662R1

THRUST WASHER

4шт.

18

3134290R1

PINION

GEAR, BEVEL

4шт.

19

3146660R1

DIFF. SPIDER

1шт.

20

105503H

ROLLER BEARING,57.15mm ID x 24.61mm W

1шт.

20

105496H

BEARING CUP,97.63mm OD x 19.45mm W

CUP

1шт.

21

3147883R1

COVER

PLATE

2шт.

931643R1

HEX SOC SCREW,M14 x 35mm, Cl 8.8

8шт.

933801R91

LUBE NIPPLE,45 Degree, M8 x 1

2шт.

22

3230325R1

HOUSING

BALL, JOINT, RH

1шт.

22

3230324R1

HOUSING

BALL, JOINT, LH

1шт.

3134225R1

BOLT

BOLT, M12

4шт.

933698R1

NUT,M12 x 1.25, Cl 6

2шт.

934652R1

THIN NUT,Thin, M12 x 1.5, Cl 05

2шт.

932166R1

LOCK PIN,M10 x 50, Slotted

2шт.

932804R1

LOCK PIN,M16 x 50, Slotted

2шт.

23

3230900R1

COVER

1шт.

931643R1

HEX SOC SCREW,M14 x 35mm, Cl 8.8

4шт.

280264

BOLT,Hex, M14 x 50mm, Cl 8.8

1шт.

712992R91

LUBE NIPPLE

2шт.

24

933709R1

PACKING RING

24 MM

3шт.

24

933222R1

SEALING WASHER,M18 x 22 x 1.5

1шт.

25

898172H1

PLUG

1шт.

26

933710R1

SEALING RING,M42 x 49 x 2

1шт.

27

933716R1

PLUG,Hex Soc, M42 x 1.5

1шт.

28

3140942R1

TIE-ROD

1шт.

28

3147030R91

TIE-ROD

WITH BALL JOINTS

1шт.

29

3146733R1

BALL JOINT

2шт.

30

3146677R1

FRONT AXLE

1шт.

30

3230167R91

AXLE, FRONT - WITH DIFFERENTIAL AND PLANETARY DRIVE -

1шт.

30

3230169R91

FRONT AXLE

- W/SELF-LOCKING DIFFERENTIAL AND PLANETARY DRIVE -

1шт.

31

3147030R91

TIE-ROD

1шт.

32

3233784R1

PROTECTOR

1шт.

32

KARDANWELLENSCHUTZ

1шт.

33

3230326R1

LEVER

SPARE PART LEVER

1шт.

3229114R1

LOCK BOLT

BOLT, M14 X 50 MM

4шт.

712992R91

LUBE NIPPLE

LUBRICATOR

1шт.

34

3134217R1

CAP

CAP, SEAL

4шт.

35

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

BEARING, CONE

4шт.

35

530741R1

BEARING CUP

CUP, BEARING

4шт.

36

933085R1

PLUG,Exp, M52

PLUG, EXPANSION

4шт.

37

3146683R1

BUSHING

BUSHING

4шт.

38

3223861R2

SEAL

SEAL, OIL

6шт.

38

3223862R1

SEALING RING

SEAL, OIL - OPTIONAL

1шт.

39

3146700R1

SHIM

SHIM, 2.60 MM

1шт.

39

3145699R1

SHIM, 2.70 MM

1шт.

39

3147889R1

SHIM

SHIM, 2.75 MM

1шт.

39

3146698R1

SHIM

SHIM, 2.80 MM

1шт.

39

3147888R1

SHIM

SHIM, 2.85 MM

1шт.

39

3146697R1

SHIM

SHIM, 2.90 MM

1шт.

39

3147887R1

SHIM

SHIM, 2.95 MM

1шт.

39

3146696R1

SHIM

SHIM, 3.00 MM

1шт.

39

3147886R1

SHIM

SHIM, 3.05 MM

1шт.

39

3146695R1

SHIM

SHIM, 3.10 MM

1шт.

39

3147885R1

SHIM

SHIM, 3.15 MM

1шт.

39

3146694R1

SHIM

SHIM, 3.20 MM

1шт.

39

3147884R1

SHIM

SHIM, 3.30 MM - AS REQUIRED

1шт.

40

3146693R1

LARGE PIN

PIN, LARGE PIN

4шт.

41

3146701R1

O-RING

O-RING

4шт.

42

3222497R1

PLUG

PLUG

1шт.

42

898138H1

BREATHER

BREATHER

1шт.

43

3146678R91

SHAFT

SHAFT, LH

1шт.

43

3146679R91

SHAFT

SHAFT, RH

1шт.

44

3223863R1

RING, LOCKING

RING, LOCK SHEET

2шт.

45

3223864R1

SEALING RING

SEAL, FELT

2шт.

46

3230889R91

HUB CARRIER

CARRIER, HUB

2шт.

931218R1

BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd

4шт.

931426R1

BOLT,Hex, M16 x 35, 8.8, Full Thd

20шт.

47

3146686R91

OIL SEAL

SEAL, OIL

2шт.

48

529452R91

ROLLER BEARING

BEARING, CONE

2шт.

48

529453R1

BEARING, CUP

CUP, BEARING

2шт.

49

3146689R1

PROTECTOR

DEFLECTOR

2шт.

50

3146688R1

HUB

HUB, WHEEL

2шт.

3230878R1

BOLT

BOLT, M18

16шт.

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

NUT, M18

16шт.

3230348R1

WASHER

WASHER, BALL FLANGE

16шт.

51

3225928R1

RETAINER

RING, SPACER 5.20 MM

2шт.

51

3225927R1

SPACER

RING, SPACER 5.25 MM

1шт.

51

3146690R1

SPACER

RING, SPACER 5.30 MM

1шт.

51

3225926R1

SPACER

RING, SPACER 5.40 MM - AS REQUIRED

1шт.

52

102161H

BEARING ASSY,68.262mm ID x 21.996mm

BEARING, CONE

2шт.

52

29241H

SPARE PART CUP, BEARING

2шт.

53

3146675R1

RING, SNAP

RING SNAP RING, SNAP

2шт.

54

3146673R2

RING CARRIER

CARRIER, GEAR RING

2шт.

55

3146674R1

GEAR, RING

RING, GEAR RING, GEAR

2шт.

56

3229142R1

NUT

NUT, ADJUSTING

2шт.

57

3146672R1

GEAR

GEAR, SUN

2шт.

58

933804R1

SNAP RING,M38, Ext

CIRCLIP

2шт.

59

3134211R2

PLUG

KNOB, THRUST

2шт.

60

3146671R1

DISC

SHIM, 0.3 MM

1шт.

60

3146670R1

DISC

SHIM, 0.5 MM

1шт.

60

3146669R1

DISC

SHIM, 1.0 MM

1шт.

60

3222157R1

SHIM

SPARE PART SHIM, 3.0 MM - AS REQUIRED

1шт.

61

3230327R1

PINION CARRIER

GEAR CARRIER CARRIER, PINION - 743/745S -

2шт.

930294R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

54шт.

932840R1

LOCK PIN,M8 x 26, Slotted

8шт.

932742R1

LOCK PIN,M5 x 26, Slotted

8шт.

933565R1

PLUG,M14, Conical

PLUG, "U"

2шт.

62

3146664R1

SHAFT

SHAFT

6шт.

63

933718R1

PLUG,Hex, M24 x 1.5

2шт.

63

934651R1

PLUG,Hex Soc, M18 x 1.5

2шт.

64

3146668R1

THRUST WASHER

WASHER, THRUST

12шт.

65

3146667R1

WASHER

WASHER

12шт.

66

3146665R1

GEAR

GEAR, PINION

6шт.

67

3146666R1

NEEDLE

NEEDLE

132шт.

68

3230388R1

SHAFT

SHAFT, LH - A - 350 MM

1шт.

68

3230387R1

SHAFT

SHAFT, RH - A - 794 MM

1шт.

69

3224326R1

SPIDER ASSY.

SPIDER

2шт.

70

3230386R1

SHORT SHAFT FORK

SHAFT

2шт.

71

3140082R1

PIVOT

PIVOT, FRONT AXLE

1шт.

72

3141007R2

FLANGE

BEARING, PIVOT FRONT AXLE

1шт.

931605R1

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

4шт.

3142216R1

BOLT,Hex, M20 x 2.5 x 65mm, Cl 8.8

BOLT, 20 X 60 MM

2шт.

933714R1

WASHER

WASHER, 20 MM

6шт.

3142217R1

NUT

NUT, M20

2шт.

73

3059875R6

SCREW,5/8" - 11 x 40mm

BOLT

1шт.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

74

3057042R1

SHIM,40.05mm ID x 59.94mm OD x 0.55mm Thk

SHIM, 0.5 MM

1шт.

74

3059771R1

SHIM

SHIM, 0.2 MM - AS REQUIRED

1шт.

75

3141006R21

SUPPORT

SUPPORT, ANGLE

1шт.

931145R1

BOLT,Hex, M20 x 2.5 x 40mm, Cl 8.8, Full Thd

2шт.

933813R1

LOCK WASHER,M20

2шт.

Выбрано товаров: 156
