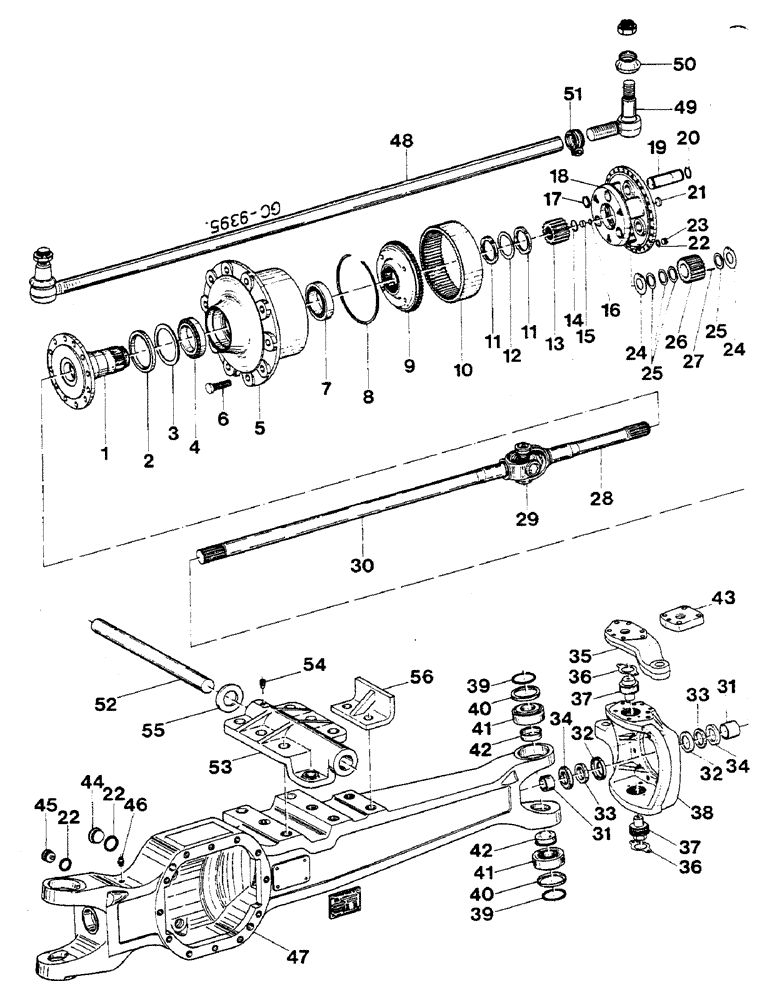

Запчасти Case IH 844S (07-091) - FRONT AXLE, APL 1351 (04) - Drive Train

1

3232082R91

HUB CARRIER

2шт.

934654R1

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

24шт.

2

3216594R1

OIL SEAL

2шт.

3

3216593R1

WASHER

WASHER

2шт.

4

3230271R91

TAPERED BEARING

TAPERED

2шт.

5

3230280R1

HUB

WHEEL

2шт.

6

3230876R1

BOLT,Wheel, Serr, M18 x 1.5 x 61 mm

SCREW

16шт.

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

M18

16шт.

3230348R1

WASHER

BALL FLANGE

16шт.

7

533726R91

BEARING

INNER RING

2шт.

7

533727R1

BEARING, CUP

OUTER RACE

2шт.

8

3146675R1

RING, SNAP

RING SNAP SNAP

2шт.

9

3230266R1

RING CARRIER

GEAR

2шт.

10

3230267R1

GEAR, RING

RING, GEAR

2шт.

11

3230269R1

NUT

ADJUSTING

4шт.

12

3230270R1

DISC

RING, LOCK

2шт.

13

3230265R1

GEAR

SUN

2шт.

14

933074R1

SNAP RING,M28, Ext

CIRCLIP

2шт.

15

3147209R2

PLUG

KNOB, THRUST

2шт.

16

3147212R1

WASHER

SHIM, 0.3 MM

1шт.

16

3147211R1

WASHER

SHIM, 0.5 MM

1шт.

16

3147219R1

SHORT SHAFT

SHIM, 1.0 MM - AS REQUIRED

1шт.

17

717072R1

SNAP RING,M22, Ext

CIRCLIP

6шт.

18

3230259R1

PINION CARRIER

GEAR CARRIER PINION

2шт.

930294R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

54шт.

932840R1

LOCK PIN,M8 x 26, Slotted

8шт.

932742R1

LOCK PIN,M5 x 26, Slotted

ROLL 6 X 26 MM

8шт.

19

3230260R1

SHAFT

6шт.

20

933255R1

CIRCLIP,Ext, M20.2

6шт.

21

933565R1

PLUG,M14, Conical

EXPANSION

2шт.

22

933222R1

SEALING WASHER,M18 x 22 x 1.5

2шт.

22

933709R1

PACKING RING

24 MM

2шт.

23

934651R1

PLUG,Hex Soc, M18 x 1.5

2шт.

23

933718R1

PLUG,Hex, M24 x 1.5

2шт.

24

3146668R1

THRUST WASHER

12шт.

25

3146667R1

WASHER

12шт.

26

3230261R1

GEAR

PINION

6шт.

27

3230262R1

NEEDLE BEARING

AS REQUIRED

1шт.

28

3216599R91

SHAFT

2шт.

29

3230277R1

SPIDER ASSY.

2шт.

3223197R1

RING, SNAP

RING SNAP CIRCLIP

8шт.

30

3230276R1

SHAFT

LH

1шт.

30

3230278R1

SHAFT

RH

1шт.

31

3216585R1

BUSHING,28mm ID x 32mm OD x 30mm L

2шт.

32

3226008R1

HOLDER

SHEET, PROTECTION

4шт.

33

3226009R1

SEALING RING

FELT

4шт.

34

3226006R1

OIL SEAL

OIL

4шт.

35

3230279R1

LEVER

1шт.

3229114R1

LOCK BOLT

BOLT

6шт.

36

3216589R1

PLATE, LOCKING

SHEET

4шт.

930107R1

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

8шт.

37

3216588R1

LARGE PIN

PIN, LARGE

4шт.

712992R91

LUBE NIPPLE

4шт.

38

3230955R1

HOUSING

BALL JOINT, RH

1шт.

38

3230954R1

HOUSING

BALL JOINT, LH

1шт.

3134225R1

BOLT

BOLT, M12 X 40 MM

4шт.

934652R1

THIN NUT,Thin, M12 x 1.5, Cl 05

4шт.

39

3147244R1

O-RING

4шт.

40

3147243R1

CUP WASHER

CAP, SEAL

4шт.

41

3147242R91

ROLLER BEARING

INNER RING

4шт.

41

3147241R1

BEARING, CUP

Outer race

4шт.

42

3147245R1

PLUG

4шт.

43

3230953R1

COVER

1шт.

280264

BOLT,Hex, M14 x 50mm, Cl 8.8

4шт.

44

933799R1

PLUG,Hex Soc, M24 x 1.5

1шт.

45

3216584R1

PLUG

M18

1шт.

46

898138H1

BREATHER

1шт.

46

3222497R1

PLUG

M10

1шт.

47

3230274R1

HOUSING

AXLE, FRONT

1шт.

47

3230163R91

AXLE

FRONT - W/DIFFERENTIAL Q PLANETARY DRIVE

1шт.

47

3230165R91

AXLE

FRONT W/SELF LOCKING DIFFERENTIAL AND PLANETARY DRIVE -

1шт.

932601

PIN, ROLL 10 X 30 MM

2шт.

48

ROD, TIE

1шт.

48

3230275R91

ROD

TIE WITH BALL JOINTS

1шт.

934683R1

NUT,M18 x 1.5

2шт.

932956R1

COTTER PIN,M4 x 40

COTTER 4 X 40 MM

2шт.

49

3217282R1

BALL JOINT

1шт.

50

3217437R1

BELLOWS

BOOT, DUST

1шт.

51

3230366R1

CLAMP

1шт.

52

3140082R1

PIVOT

PIVOT, FRONT AXLE

1шт.

53

3141007R2

FLANGE

BEARING, PIVOT FRONT AXLE

1шт.

931605R1

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

4шт.

3142216R1

BOLT,Hex, M20 x 2.5 x 65mm, Cl 8.8

BOLT, M20 X 60 MM

2шт.

933714R1

WASHER

LOCK 20 MM

6шт.

3142217R1

NUT

M20

2шт.

54

3059875R6

SCREW,5/8" - 11 x 40mm

1шт.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

55

3057042R1

SHIM,40.05mm ID x 59.94mm OD x 0.55mm Thk

0.5 MM

1шт.

55

3059771R1

SHIM

0.2 MM - AS REQUIRED

1шт.

56

3141006R1

SUPPORT, ANGLE

1шт.

931145R1

BOLT,Hex, M20 x 2.5 x 40mm, Cl 8.8, Full Thd

2шт.

933813R1

LOCK WASHER,M20

2шт.
