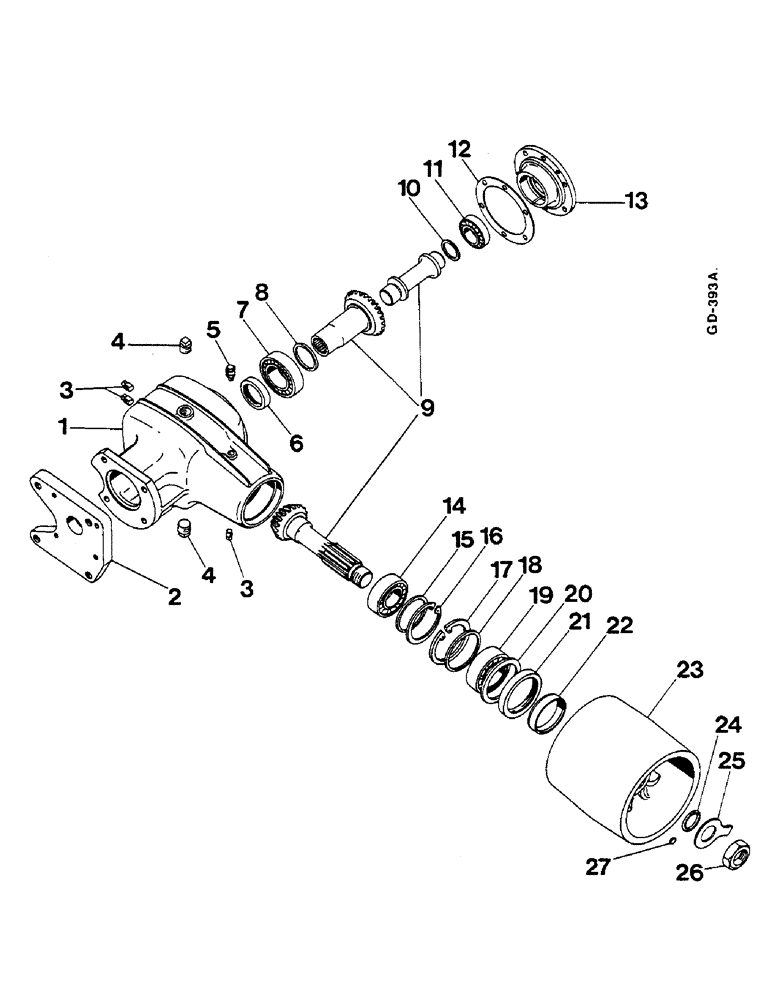

Запчасти Case IH 844S (07-088) - BELT PULLEY (04) - Drive Train

3058605R91

PULLEY ASSY.

BELT CPTE - CONSISTS OF ITEMS 1-27 -

1шт.

1

3131080R11

HOUSING

WITH PACKING RINGS

1шт.

20295R1

HEX SOC SCREW,5/8"-11 x 3"

4шт.

3146317R1

SCREW

SPARE PART BOLT, 5/8 X 92 MM

4шт.

2

3058606R1

PLATE

SPARE PART SPACER

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.

103323

LOCK WASHER,1/2"

4шт.

3

787702R1

PLUG

3шт.

4

787710R1

PLUG

2шт.

5

898138H1

BREATHER

1шт.

6

787703R91

OIL SEAL

1шт.

7

787701R91

BEARING, ROLLER

TAPERED

1шт.

8

787683R1

SHIM

1.6 MM - .063 INCHES -

1шт.

8

787684R1

SHIM

1.8 MM - .071 INCHES -

1шт.

8

787679R1

SHIM

2.0 MM - .079 INCHES -

1шт.

8

787680R1

SHIM

2.2 MM - .087 INCHES -

1шт.

8

787685R1

SHIM

2.4 MM - .094 INCHES -

1шт.

8

787686R1

SHIM

2.6 MM - .102 INCHES -

1шт.

8

787682R1

SHIM

2.8 MM - .110 INCHES -

1шт.

8

787678R1

SHIM

3.0 MM - .118 INCHES - - AS REQUIRED-

1шт.

9

3131082R12

GEAR-SET

BEVEL, WITH SHAFT 17/22 TEETH -

1шт.

10

787692R1

SHIM

2.0 MM - .091 INCHES -

1шт.

10

787693R1

SHIM

2.4 MM - .094 INCHES -

1шт.

10

787690R1

SHIM

2.5 MM - .098 INCHES -

1шт.

10

787694R1

SPARE PART 2.6 MM - .102 INCHES -

1шт.

10

787695R1

SPARE PART 2.7 MM - .106 INCHES -

1шт.

10

787691R1

SPARE PART 2.8 MM - .110 INCHES -

1шт.

10

787687R1

SHIM

3.0 MM - .118 INCHES - - AS REQUIRED-

1шт.

11

787709R91

CRANKSHAFT BEARING

TAPERED ROLLER

1шт.

12

787699R1

PACKING RING

SHIM

1шт.

13

787711R1

COVER

BEARING

1шт.

930048R1

BOLT,Hex, M10 x 1.5 x 22mm, Cl 8.8, Full Thd

6шт.

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

6шт.

14

787704R91

BEARING, ROLLER

TAPERED

1шт.

15

787672R1

SHIM

4.0 MM - .157 INCHES -

1шт.

15

787695R1

SPARE PART 4.1 MM - .161 INCHES -

1шт.

15

787673R1

SPARE PART 4.2 MM - .165 INCHES -

1шт.

15

787676R1

SHIM

SPARE PART 4.3 MM - .169 INCHES -

1шт.

15

787674R1

SPARE PART 4.5 MM - .177 INCHES -

1шт.

15

787677R1

SHIM

4.6 MM - .181 INCHES -

1шт.

15

787671R1

SHIM

4.8 MM - .189 INCHES - - AS REQUIRED-

1шт.

16

787705R1

RING, SNAP

RING SNAP CIRCLIP

1шт.

17

933752R1

SNAP RING,M125, Int

CIRCLIP

1шт.

18

787696R1

SPACER

RING

1шт.

19

787706R91

TAPERED BEARING,70mm ID x 125mm OD x 26.25mm W

TAPERED

1шт.

20

787697R1

SPACER

RING

1шт.

21

787707R1

OIL SEAL

1шт.

22

787698R1

BUSHING

BUSHING

1шт.

23

787700R1

PULLEY

SPARE PART BELT

1шт.

24

787708R1

O-RING

1шт.

25

933753R1

PLATE, LOCKING

WASHER

1шт.

26

933754R1

NUT

1шт.

27

933755R1

PLUG

EXPANSION

1шт.
