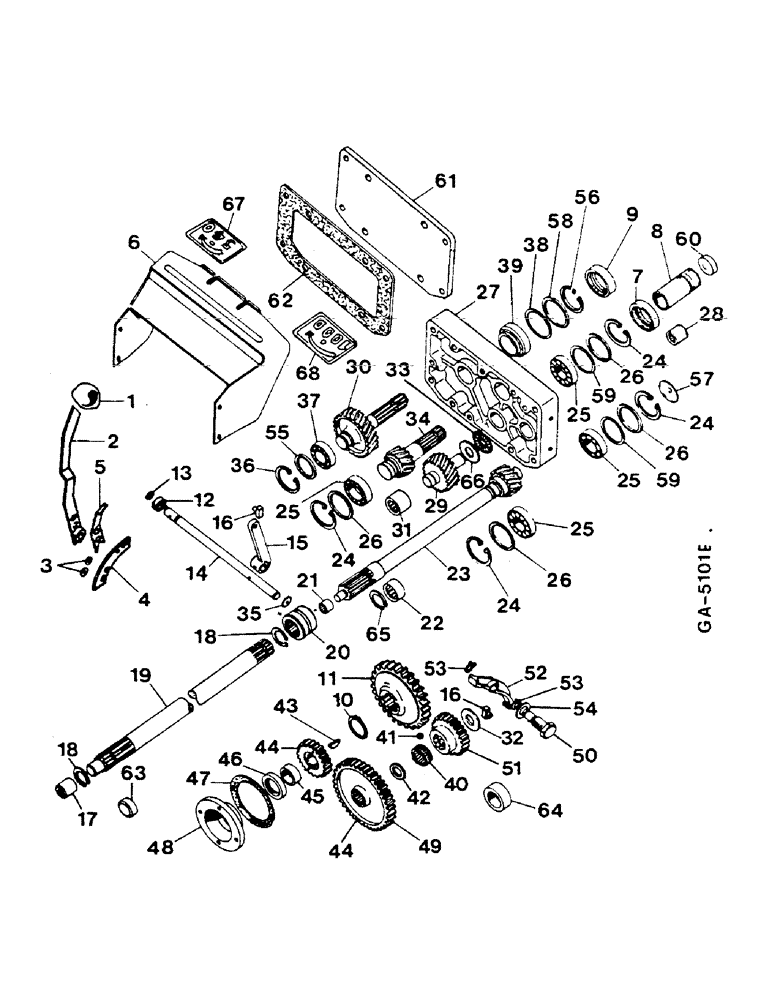

Запчасти Case IH 844S (07-082) - ENGINE PTO, GROUND SPEED PTO (04) - Drive Train

1

3137539R2

KNOB

BALL, SHIFTER LEVER

1шт.

2

3229545R91

LEVER

SHIFTING - WITH 5

1шт.

932671R1

LOCK PIN,M6 x 30, Slotted

1шт.

932738R1

LOCK PIN,3.5mm OD x 30mm L, Slotted

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

3

120394

WASHER,3/8", SAE

2шт.

4

3145864R1

SECTOR

1шт.

5

3145868R1

PLATE

SPRING, LOCK

1шт.

102684

RIVET,But Hd, 5/16" x 11/16"

2шт.

6

3230787R1

SHIELD

MASTER

1шт.

6

3220552R91

SHIELD

MASTER - FINLAND ONLY -

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

3шт.

7

3142410R91

OIL SEAL

1шт.

7

3142411R91

OIL SEAL,40mm ID x 80mm OD x 10mm Thk

OPTIONAL

1шт.

8

3054841R2

TUBE

CAP, PTO GUARD, FOR SPLINED SHAFT - AS REQUIRED -

1шт.

8

3058648R2

CAP

PTO GUARD, FOR SERRATED SHAFT

1шт.

9

3142404R91

OIL SEAL

1шт.

9

3142405R91

OIL SEAL

OPTIONAL

1шт.

10

3058041R1

RING, SNAP

RING SNAP CIRCLIP

1шт.

11

GEAR, GROUND SPEED PTO - SEE RANGE TRANSMISSION, VERSION WITH OR W/O SPEED REDUCER AND RANGE TRNSMISSION -

1шт.

12

3145862R91

COLLAR

RING, LOCK, WITH SCREW

1шт.

102870

SET SCREW,Sq Hd, 1/4"-20 x 1/2"

1шт.

13

355966R1

O-RING,0.424" ID x 0.103" Width

1шт.

14

3145865R1

SHAFT

SHIFTER PTO

1шт.

15

3145023R91

LEVER

SHIFTER

1шт.

932671R1

LOCK PIN,M6 x 30, Slotted

1шт.

932738R1

LOCK PIN,3.5mm OD x 30mm L, Slotted

1шт.

16

3057313R1

SLIDE

BLOCK

2шт.

17

3057316R91

CAGE

BEARING, NEEDLE

1шт.

18

933075R1

SNAP RING,M40, Ext

CIRCLIP

2шт.

19

3145022R2

SHAFT

PTO, FRONT - STANDARD -

1шт.

19

3223007R1

SHAFT

PTO, FRONT - FOR FOUR WHEEL DRIVE AND GROUND SPEED PTO -

1шт.

20

3145028R3

COUPLING

SHAFT, PTO - STANDARD -

1шт.

20

3221042R1

COUPLING

SHAFT, PTO - FOR FOUR WHEEL DRIVE AND GROUND SPEED PTO -

1шт.

21

3057317R91

NEEDLE BEARING CAGE

1шт.

22

3057318R91

BEARING, NEEDLE,Needle, 39.99mm ID x 46.98mm OD x 19.9mm W

1шт.

23

3145029R2

SHAFT

PTO, REAR - STANDARD -

1шт.

23

3224441R1

SHAFT

PTO, REAR - FOR FOUR WHEEL DRIVE AND GROUND SPEED PTO -

1шт.

24

3146818R1

RING, SNAP

RING SNAP CIRCLIP, - AS REQUIRED

1шт.

25

3142394R91

TAPERED BEARING

TAPERED - AS REQUIRED

1шт.

26

3142413R1

RING

BACK-UP - AS REQUIRED

1шт.

27

3225800R1

HOUSING

PTO

1шт.

20296R1

HEX SOC SCREW,5/8"-11 x 2"

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

9406825

HEX SOC SCREW,1/2" - 13 x 2 1/2"

2шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

3шт.

103323

LOCK WASHER,1/2"

4шт.

103325

LOCK WASHER,5/8"

3шт.

28

3232190R91

ROLLER BEARING,38.1 mm ID x 47.58 mm OD x 31.75 mm

1шт.

29

3225802R2

GEAR

INTERMEDIATE

1шт.

30

3142397R4

SHAFT

PTO 540 RPM

1шт.

31

3232189R91

ROLLER BEARING,38.1 mm ID x 47.63 mm OD x 31.75 mm

1шт.

32

3221295R1

WASHER,40mm ID x 64mm OD x 1mm Thk

1шт.

33

3147274R91

BEARING, NEEDLE

WITH 66

1шт.

34

3142401R1

PTO

SHAFT, 1000 RPM SERRATED

1шт.

34

3142418R2

SHAFT

PTO 1000 RPM SPLINED

1шт.

35

172532

PLUG,Exp, 13/16"

EXPANSION

1шт.

36

3146817R1

RING, SNAP

RING SNAP CIRCLIP

1шт.

37

3142398R91

TAPERED BEARING

TAPERED

1шт.

37

3142399R91

TAPERED BEARING

TAPERED - OPTIONAL

1шт.

38

3142406R1

SHIM

0.1 MM - .004 INCHES -

1шт.

38

3146815R1

SHIM

0.15 MM - .006 INCHES -

1шт.

38

3142633R1

SHIM

0.2 MM - .008 INCHES -

1шт.

38

3142634R1

SHIM

0.5 MM - .020 INCHES -

1шт.

38

3142635R1

SHIM

1.0 MM - .040 INCHES - - OPTIONAL

1шт.

39

3142407R91

BEARING

TAPERED ROLLER

1шт.

39

3142408R91

TAPERED BEARING

TAPERED - OPTIONAL

1шт.

40

3221289R91

BEARING, NEEDLE

1шт.

41

17006R1

BALL

STEEL

1шт.

42

3224443R1

SPACER

RING, 40.3 X 60 X 5.85 MM

1шт.

42

3221043R1

SPACER

RING, 40.3 X 60 X 6.50 MM

1шт.

42

3221044R1

SPACER

RING, 40.3 X 60 X 7.10 MM

1шт.

42

3221045R1

SPACER

RING, 40.3 X 60 X 7.70 MM

1шт.

42

3221046R1

SPACER

RING, 40.3 X 60 X 8.30 MM - AS REQUIRED

1шт.

43

218211

DRIVING SPROCKET

1шт.

44

3134541R91

GEAR-SET

PTO DRIVE 28/56 TEETH (SINGLE CLUTCH) -

1шт.

45

3057315R1

SPACER

RING

1шт.

46

3131160R91

OIL SEAL

1шт.

46

3145778R1

SEAL

OIL - OPTIONAL

1шт.

47

3134518R1

GASKET,0.5mm Thk

1шт.

48

3057187R3

RETAINER

- 743/745S -

1шт.

48

3145775R1

FLANGE

RETAINER, - 844S -

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

4шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

4шт.

103320

LOCK WASHER,5/16"

4шт.

49

GEAR, DRIVE, W/HOLLOW SHAFT SEE DOUBLE CLUTCH -

1шт.

50

3057801R1

SCREW

LOCK

1шт.

51

3221041R1

PINION

GEAR, SHIFTER, GROUND SPEED PTO 30 TEETH -

1шт.

52

3216412R1

LEVER

LOCKING SEE ALSO RANGE SHIFTER MECHANISM

1шт.

53

933120R1

SNAP RING,M15, Ext

CIRCLIP

2шт.

54

Q3501

WASHER

1шт.

55

3142409R3

DISC

RING, BACK-UP

1шт.

56

3146819R1

SNAP RING

1шт.

57

3225803R1

PLUG

EXPANSION

1шт.

58

3142412R1

RING

BACK-UP

1шт.

59

3142414R1

SHIM

0.1 MM

1шт.

59

3146816R1

SHIM

0.15 MM

1шт.

59

3142630R1

SHIM

0.2 MM

1шт.

59

3142631R1

SHIM

0.5 MM

1шт.

59

3142632R1

SHIM

1.0 MM - AS REQUIRED

1шт.

60

3225803R1

PLUG

COVER, CLOSING

1шт.

61

3133249R1

COVER

SPARE PART (-XXX)

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

4шт.

103323

LOCK WASHER,1/2"

4шт.

103325

LOCK WASHER,5/8"

4шт.

62

3133250R1

GASKET

(-XXX)

1шт.

63

3133251R1

PLUG

(-XXX)

1шт.

64

3133252R1

SPACER

BUSHING - IN PLACE OF ITEM 44 -

1шт.

3058102R1

PLUG

(-XXX)

2шт.

65

3221294R1

RING, SNAP

RING SNAP CIRCLIP

1шт.

66

3134194R1

WASHER,40mm ID x 60mm OD x 1mm Thk

1шт.

66

3146247R1

WASHER

OPTIONAL

1шт.

67

1091659R1

DECAL

PRODUCT-GRAPHIC

1шт.

68

1091660R1

DECAL

PRODUCT-GRAPHIC

1шт.
