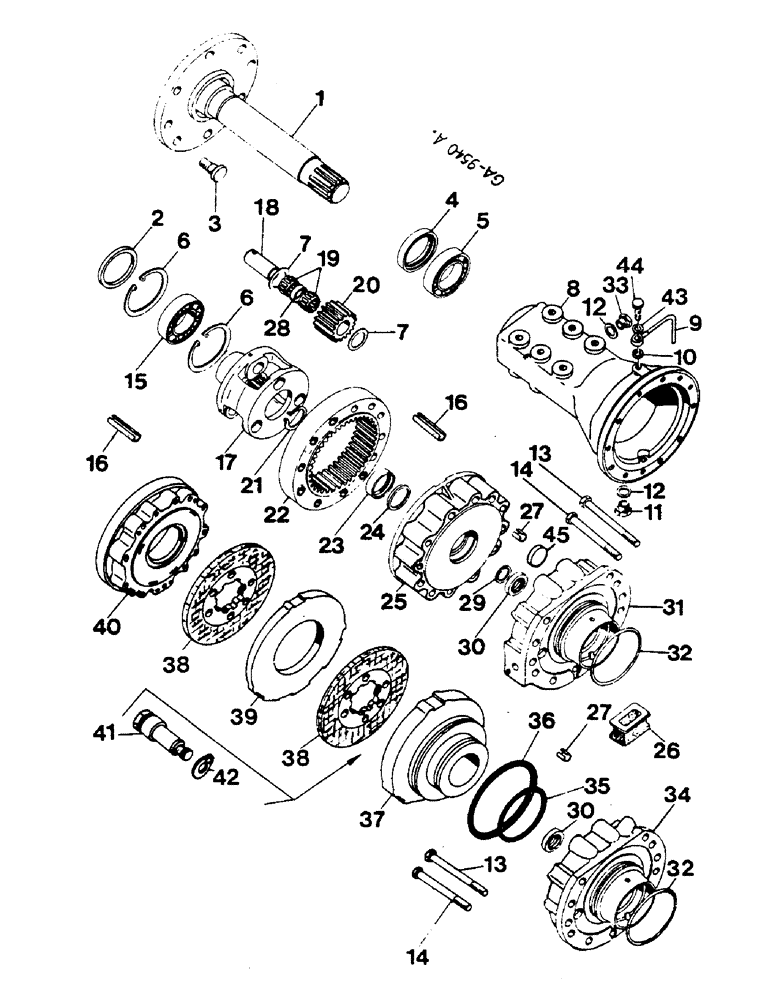

Запчасти Case IH 844S (07-077) - REAR AXLE, BRAKES (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
3220575R92
SHAFT
AXLE, REAR WITH BOLTS
2шт.
1
3220508R92
AXLE
FOR FRANCE ONLY
2шт.
743/745S - TRACTORS W/MECH. BRAKE
1шт.
743/745S - TRACTORS W/HYDR. BRAKE
1шт.
2
3145059R1
THRUST WASHER
THRUST
2шт.
3
3058254R1
SCREW
BOLT, WHEEL HUB, RIBBED NECK - M18 X 50 MM -
16шт.
3
3399467R1
STUD
WHEEL HUB, RIBBED NECK - M18 X 55 MM -
16шт.
905514R1
NUT
M18 FOR 3 399 467 R1
16шт.
933602R1
WHEEL NUT,Wheel, M18 x 1.5
M18 FOR 3 058 254 R1
16шт.
3230348R1
WASHER
BALL
16шт.
4
3145061R91
OIL SEAL
OIL
2шт.
5
712794R91
BEARING, BALL,65 mm ID x 100 mm OD x 18 mm
2шт.
6
933752R1
SNAP RING,M125, Int
CIRCLIP
4шт.
7
3137111R1
THRUST WASHER
THRUST
12шт.
8
3145079R1
AXLE CARRIER
REAR AXLE
2шт.
8
3220510R1
CARRIER
FOR FRANCE ONLY
2шт.
743/745S - TRACTORS W/MECH. BRAKE
1шт.
743/745S - TRACTORS W/HYDR. BRAKE
1шт.
9
3230894R1
TUBE,128 mm Length
BREATHER
2шт.
10
934662R1
SEALING RING,10mm ID x 14mm OD x 1mm Thk
PACKING
2шт.
11
3131883R2
SCREW
PLUG, 1 INCH
2шт.
12
933609R1
RING
4шт.
13
3223408R1
BOLT
1/2 X 178 MM
8шт.
743/745S - TRACTORS W/MECH. BRAKE
1шт.
13
3223408R1
BOLT
1/2 X 178 MM
4шт.
844S - TRACTORS W/HYDR. BRAKE
1шт.
103323
LOCK WASHER,1/2"
8шт.
743/745S - TRACTORS W/HYDR. BRAKE
1шт.
103323
LOCK WASHER,1/2"
4шт.
743/745S - TRACTORS W/MECH. BRAKE
1шт.
844S - TRACTORS W/HYDR. BRAKE
1шт.
14
3223407R1
SCREW
1/2 X 165 MM
16шт.
743/745S - TRACTORS W/HYDR. BRAKE
1шт.
14
3223407R1
SCREW
1/2 X 165 MM
20шт.
743/745S - TRACTORS W/MECH. BRAKE
1шт.
844S - TRACTORS W/HYDR. BRAKE
1шт.
103323
LOCK WASHER,1/2"
16шт.
743/745S - TRACTORS W/HYDR. BRAKE
1шт.
103323
LOCK WASHER,1/2"
20шт.
743/745S - TRACTORS W/MECH. BRAKE
1шт.
844S - TRACTORS W/HYDR. BRAKE
1шт.
15
85661H
BEARING, BALL
2шт.
16
932571R1
LOCK PIN,M16 x 80, Slotted
4шт.
17
3230883R2
PINION CARRIER
GEAR CARRIER PLANET (XXX-)
2шт.
17
3230883R2
PINION CARRIER
GEAR CARRIER PLANET (-XXX) - ORDER 3230884R1
2шт.
Q2930
LOCK PIN,M8 x 28, Slotted
6шт.
932148R1
LOCK PIN,M5 x 28, Slotted
6шт.
18
3230884R1
PIN
PLANET 38 X 130 MM (XXX-)
6шт.
18
3145065R1
PIN
PLANET 38 X 125 MM (-XXX)
6шт.
743/745S - TRACTORS W/HYDR. BRAKE
1шт.
19
3137157R91
BEARING, NEEDLE
12шт.
19
3147248R91
BEARING ASSY
- SET OF TWO - - WITH 28
6шт.
20
3137108R91
PACKAGE
GEAR, PLANET, SET OF 3
2шт.
21
3047960R1
SNAP RING,M65, Ext
2шт.
22
3145088R1
GEAR
INTERNAL SPUR
2шт.
23
3058106R91
OIL SEAL
2шт.
743/745S - TRACTORS W/HYDR. BRAKE
1шт.
24
3137608R1
SEAL,60.8mm ID x 73mm OD x 3.1mm Thk
OIL
2шт.
743/745S - TRACTORS W/HYDR. BRAKE
1шт.
25
3148609R2
HOUSING
SPACER, FLANGE HOUSING
2шт.
743/745S - TRACTORS W/HYDR. BRAKE
1шт.
26
3142892R1
BELLOWS
LH.
1шт.
743/745S - TRACTORS W/HYDR. BRAKE
1шт.
26
3142893R1
GROMMET
RH
1шт.
743/745S - TRACTORS W/HYDR. BRAKE
1шт.
27
932570R1
LOCK PIN,M16 x 20, Slotted
4шт.
28
3137109R1
SPACER
RING
6шт.
29
3134944R1
SEAL,45mm ID x 59mm OD x 3.1mm Thk
SCRAPER, OIL
2шт.
743/745S - TRACTORS W/HYDR. BRAKE
1шт.
30
3058107R91
SEAL,42.5mm ID x 65.18mm OD x 13mm Thk
OIL
2шт.
31
3224599R91
HOUSING
BRAKE WITH 23, 24, 29, 30, 45
2шт.
743/745S - TRACTORS W/HYDR. BRAKE
1шт.
21571R1
SCREW,Hex Soc Hd, 5/8" - 11 x 1 1/2"
18шт.
21572R1
SCREW,Hex Soc Hd, 5/8" - 11 x 3 1/4"
2шт.
3057242R1
STUD
5/8 X 54 MM - ON TRACTORS W/CAB - TIMMERMAN -
2шт.
114507
JAM NUT,Jam, 5/8"-11, G5
1шт.
743/745S - TRACTORS W/HYDR. BRAKE
1шт.
32
713791R1
O-RING,5mm Thk x 144mm ID, 75 Duro
2шт.
33
3059999R2
PLUG
1 INCH
2шт.
34
3145541R6
HOUSING
BRAKE
2шт.
743/745S - TRACTORS W/MECH. BRAKE
1шт.
844S - TRACTORS W/HYDR. BRAKE
1шт.
21571R1
SCREW,Hex Soc Hd, 5/8" - 11 x 1 1/2"
20шт.
9406825
HEX SOC SCREW,1/2" - 13 x 2 1/2"
6шт.
743/745S - TRACTORS W/MECH. BRAKE
1шт.
844S - TRACTORS W/HYDR. BRAKE
1шт.
35
3230854R1
O-RING
2шт.
743/745S - TRACTORS W/MECH. BRAKE
1шт.
844S - TRACTORS W/HYDR. BRAKE
1шт.
36
3230853R1
O-RING,5.84mm Thk x 164.2mm ID, Cl 7, 70 Duro
2шт.
743/745S - TRACTORS W/MECH. BRAKE
1шт.
844S - TRACTORS W/HYDR. BRAKE
1шт.
37
3223252R6
PISTON
2шт.
743/745S - TRACTORS W/MECH. BRAKE
1шт.
844S - TRACTORS W/HYDR. BRAKE
1шт.
38
3145546R91
BRAKE DISC
DISC, BRAKE
4шт.
743/745S - TRACTORS W/MECH. BRAKE
1шт.
844S - TRACTORS W/HYDR. BRAKE
1шт.
39
3145548R1
DISC
PLATE, SPACER
2шт.
743/745S - TRACTORS W/MECH. BRAKE
1шт.
844S - TRACTORS W/HYDR. BRAKE
1шт.
40
3145542R1
FLANGE
HOUSING BRAKE
2шт.
743/745S - TRACTORS W/MECH. BRAKE
1шт.
844S - TRACTORS W/HYDR. BRAKE
1шт.
41
3230978R1
ADJUSTER
6шт.
743/745S - TRACTORS W/MECH. BRAKE
1шт.
844S - TRACTORS W/HYDR. BRAKE
1шт.
42
3221968R1
RING, SNAP
RING SNAP CIRCLIP
24шт.
743/745S - TRACTORS W/MECH. BRAKE
1шт.
844S - TRACTORS W/HYDR. BRAKE
1шт.
43
933697R1
SEALING RING,M10 x 13.5 x 1
2шт.
44
930009R1
BANJO BOLT,M10 x 1 x 23mm
HOLLOW M10
2шт.
45
3059995R1
RETAINER
PACKING RING ON TRACTORS W/CAB - TIMMERMAN -
2шт.
743/745S - TRACTORS W/HYDR. BRAKE
1шт.
Выбрано товаров: 115
