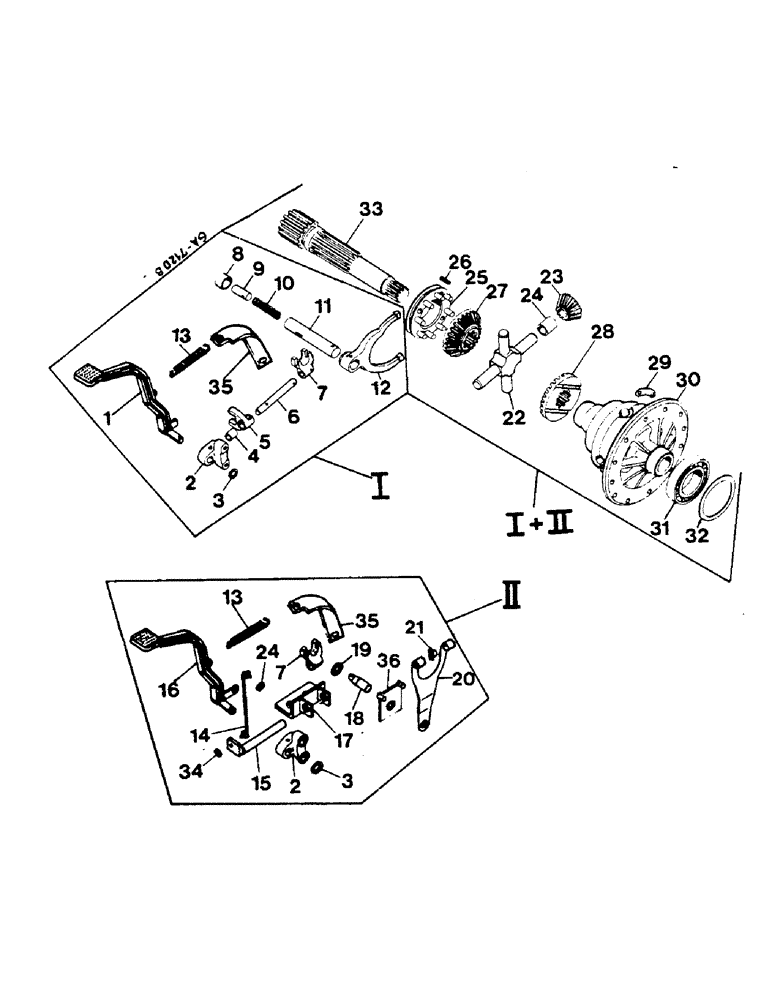

Справочник запчастей Case IH 844S (07-073) - DIFFERENTIAL, DIFFERENTIAL LOCK (04) - Drive Train со схемами

1

3145071R91

PEDAL

1шт.

718031R1

SET SCREW

BOLT, 5/16 X 45 MM

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

932228R1

LOCK PIN,M6 x 24, Slotted

1шт.

934006R1

WASHER,M8 x 16 x 1.6

1шт.

FOR TRACTORS W/MECH, BRAKE NOT FOR 844S.

1шт.

2

3057229R2

BRACKET

HOLDER

1шт.

FOR TRACTORS W/MECH, BRAKE NOT FOR 844S.

1шт.

2

3145357R1

SUPPORT

HOLDER

1шт.

FOR TRACTORS W/HYDR, BRAKE 743/45S IF FITTED.

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

103321

LOCK WASHER,3/8"

2шт.

933190R91

LUBE NIPPLE,1/8"-28 BSP x 20mm lg

FITTING

1шт.

FOR TRACTORS W/HYDR, BRAKE 743/45S IF FITTED.

1шт.

933201R91

LUBE NIPPLE,67 Degree, 1/8" BSP

FITTING - OPTIONAL

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING

1шт.

FOR TRACTORS W/MECH, BRAKE NOT FOR 844S.

1шт.

3

578274R1

WASHER

1шт.

4

3057213R1

BUSHING

NG

1шт.

FOR TRACTORS W/MECH, BRAKE NOT FOR 844S.

1шт.

5

3057228R1

CRADLE

LEVER

1шт.

932228R1

LOCK PIN,M6 x 24, Slotted

1шт.

FOR TRACTORS W/MECH, BRAKE NOT FOR 844S.

1шт.

6

3147028R1

SHAFT

1шт.

FOR TRACTORS W/MECH, BRAKE NOT FOR 844S.

1шт.

7

3057226R2

FORK

1шт.

932228R1

LOCK PIN,M6 x 24, Slotted

1шт.

8

3057214R1

BUSHING

1шт.

FOR TRACTORS W/MECH, BRAKE NOT FOR 844S.

1шт.

9

3057225R2

BOLT

1шт.

932234R1

LOCK PIN,M6 x 40, Slotted

1шт.

FOR TRACTORS W/MECH, BRAKE NOT FOR 844S.

1шт.

10

3057224R1

SPRING

1шт.

FOR TRACTORS W/MECH, BRAKE NOT FOR 844S.

1шт.

11

3057072R21

SHAFT

1шт.

FOR TRACTORS W/MECH, BRAKE NOT FOR 844S.

1шт.

12

3057223R2

FORK

1шт.

932323R1

LOCK PIN,M6 x 45, Slotted

1шт.

FOR TRACTORS W/MECH, BRAKE NOT FOR 844S.

1шт.

13

3233488R1

SPRING

RETURN 3141796R1 -

1шт.

14

3145078R93

ROD

PEDAL

1шт.

FOR TRACTORS W/HYDR, BRAKE 743/45S IF FITTED.

1шт.

14

3224604R91

ROD

PEDAL - FOR TRACTORS WITH CAB -

1шт.

FOR TRACTORS W/HYDR, BRAKE 743/45S IF FITTED.

1шт.

934791R1

COTTER PIN,M3.2 x 18

3.2 X 18 MM

2шт.

FOR TRACTORS W/HYDR, BRAKE 743/45S IF FITTED.

1шт.

15

3145073R91

SHAFT

1шт.

FOR TRACTORS W/HYDR, BRAKE 743/45S IF FITTED.

1шт.

16

3145080R91

PEDAL

1шт.

FOR TRACTORS W/HYDR, BRAKE 743/45S IF FITTED.

1шт.

718031R1

SET SCREW

BOLT, 5/16 X 45 MM

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

932228R1

LOCK PIN,M6 x 24, Slotted

1шт.

934006R1

WASHER,M8 x 16 x 1.6

1шт.

FOR TRACTORS W/HYDR, BRAKE 743/45S IF FITTED.

1шт.

17

3145072R91

SUPPORT

BRACKET, SHIFTER SHAFT

1шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

FOR TRACTORS W/HYDR, BRAKE 743/45S IF FITTED.

1шт.

103326

LOCK WASHER,3/4"

2шт.

FOR TRACTORS W/HYDR, BRAKE 743/45S IF FITTED.

1шт.

18

3230704R1

SHAFT

1шт.

FOR TRACTORS W/HYDR, BRAKE 743/45S IF FITTED.

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

103323

LOCK WASHER,1/2"

1шт.

932234R1

LOCK PIN,M6 x 40, Slotted

1шт.

FOR TRACTORS W/HYDR, BRAKE 743/45S IF FITTED.

1шт.

19

3145060R91

OIL SEAL,30mm ID x 40mm OD x 8mm Thk

RING, PACKING

1шт.

FOR TRACTORS W/HYDR, BRAKE 743/45S IF FITTED.

1шт.

20

3230701R91

SPRING, LEAF

FORK SHIFTER

1шт.

FOR TRACTORS W/HYDR, BRAKE 743/45S IF FITTED.

1шт.

21

3226497R1

SLIDE

BLOCK

2шт.

FOR TRACTORS W/HYDR, BRAKE 743/45S IF FITTED.

1шт.

22

3057218R1

DIFF. SPIDER

1шт.

23

3137206R91

SET

PINION, DIFFERENTIAL BEVEL

1шт.

24

NSS

NOT SOLD SEPARAT

ORDER 3137206R91 - AS REQUIRED -

1шт.

25

3137118R12

COUPLING

SHIFTER

1шт.

FOR TRACTORS W/MECH, BRAKE NOT FOR 844S.

1шт.

25

3145067R92

COUPLING, BREAK AWAY

SHIFTER

1шт.

FOR TRACTORS W/HYDR, BRAKE 743/45S IF FITTED.

1шт.

26

3057219R1

SPRING

PRESSURE

4шт.

FOR TRACTORS W/MECH, BRAKE NOT FOR 844S.

1шт.

27

3057068R1

PINION

GEAR, DIFFERENTIAL BEVEL 24 TEETH

1шт.

28

3057069R1

PINION

GEAR, DIFFERENTIAL BEVEL 24 TEETH

1шт.

29

713642R1

PLATE, LOCKING

BOLT

4шт.

30

3137116R11

HOUSING

DIFFERENTIAL

1шт.

3137233R1

BOLT

1/2 X 26 MM

12шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

8шт.

31

787706R91

TAPERED BEARING,70mm ID x 125mm OD x 26.25mm W

2шт.

31

3137505R91

TAPERED BEARING

OPTIONAL

1шт.

32

3134980R1

SHIM

0.10 MM

1шт.

32

3134982R1

SHIM

0.14 MM

1шт.

32

3134984R1

SHIM

0.18 MM

1шт.

32

3134986R1

SHIM

0.50 MM

1шт.

32

3134987R1

SHIM

0.70 MM

1шт.

32

3134988R1

SHIM

1.00 MM - AS REQUIRED

1шт.

33

3147700R91

PINION

SHAFT, DIFFERENTIAL - 743/745S -

2шт.

FOR TRACTORS W/MECH, BRAKE NOT FOR 844S.

1шт.

33

3145089R1

SHAFT

DIFFERENTIAL - 844S -

2шт.

FOR TRACTORS W/HYDR, BRAKE 743/45S IF FITTED.

1шт.

34

714421R2

WASHER

2шт.

FOR TRACTORS W/HYDR, BRAKE 743/45S IF FITTED.

1шт.

35

3226412R1

ANGLE

1шт.

36

3226494R91

SUPPORT

1шт.

FOR TRACTORS W/HYDR, BRAKE 743/45S IF FITTED.

1шт.

Запчасти Case IH 844S (07-073) - DIFFERENTIAL, DIFFERENTIAL LOCK (04) - Drive Train
