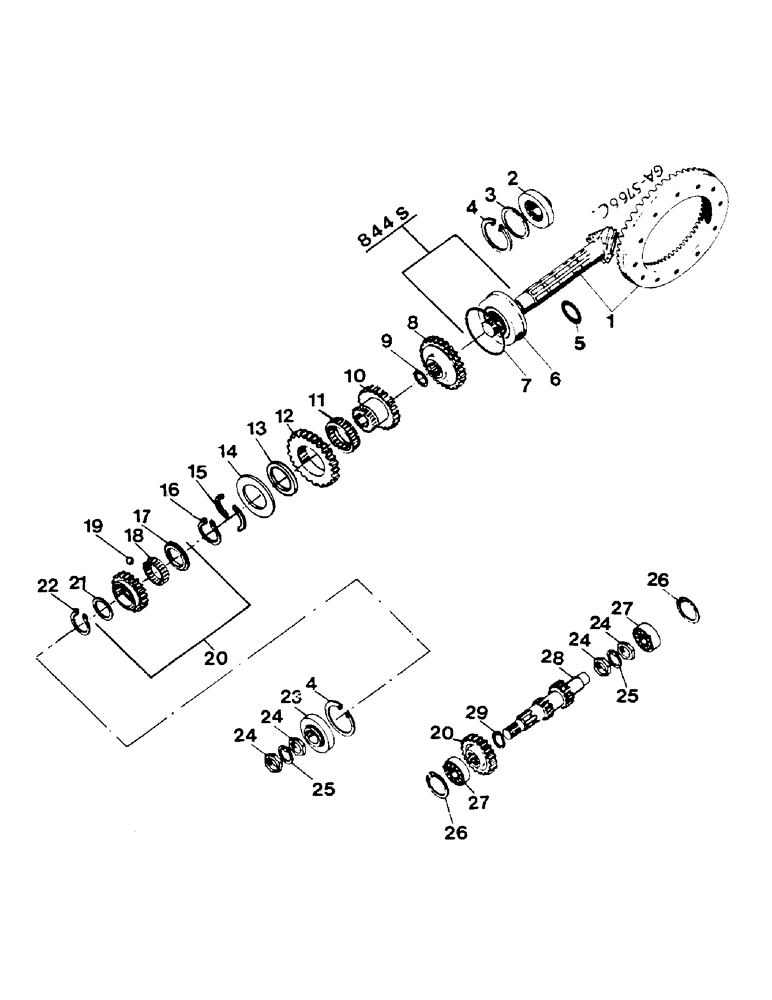

Запчасти Case IH 844S (07-067) - RANGE TRANSMISSION, VERSION WITH POWER-SHIFT TRANSMISSION (04) - Drive Train

1

3142459R92

GEAR, BEVEL

BEVEL GEAR SHAFT, SPLINE, W/DRIVE BEVEL GEAR - 12/51 TEETH - - FOR 743/745S

1шт.

1

3217336R94

GEAR-SET

SHAFT, SPLINE, W/DRIVE BEVEL GEAR - 12/51 TEETH - - FOR 844 S

1шт.

2

3057266R92

TAPERED BEARING

1шт.

3

3137095R1

SHIM

2.0 MM - .079 INCHES -

1шт.

3

3137096R1

SHIM

2.1 MM - .083 INCHES -

1шт.

3

3137097R1

SHIM

2.2 MM - .087 INCHES -

1шт.

3

3137098R1

SHIM

2.3 MM - .091 INCHES -

1шт.

3

3137099R1

SHIM

2.4 MM - .094 INCHES -

1шт.

3

3137100R1

SHIM

2.5 MM - .098 INCHES -

1шт.

3

3137101R1

SHIM

2.6 MM - .102 INCHES -

1шт.

3

3137102R1

SHIM

2.7 MM - .106 INCHES -

1шт.

3

3137103R1

SHIM

2.8 MM - .110 INCHES -

1шт.

3

3137104R1

SHIM

2.9 MM - .114 INCHES - AS REQUIRED

1шт.

4

3137156R1

CIRCLIP

AS REQUIRED

1шт.

5

3220024R92

SPRING

1шт.

6

3147786R91

ROLLER BEARING,55 mm ID x 127 mm OD x 45.5 mm

TAPERED ROLLER

1шт.

7

3147646R1

SHIM

0.1 MM

1шт.

7

3147647R1

SHIM

0.3 MM

1шт.

7

3147648R1

SHIM

0.5 MM

1шт.

7

3147649R1

SHIM

1.0 MM AS REQUIRED

1шт.

8

3057799R4

GEAR

GROUND SPEED PTO - 54 TEETH - 743/745 S -

1шт.

8

3147666R1

GEAR

GROUND SPEED PTO - 54 TEETH - 844 S -

1шт.

9

3058041R1

RING, SNAP

RING SNAP CIRCLIP

1шт.

10

3217335R3

GEAR

SLIDING REVERSE - 37 TEETH - 25/30 KM -

1шт.

11

3057771R92

BEARING, NEEDLE

WHEEL, FREE

1шт.

12

3142477R3

GEAR

SPUR FIELD RANGE 54 TEETH 25/30 KM -

1шт.

13

3147350R1

WASHER

1шт.

14

3142478R1

THRUST WASHER

THRUST

1шт.

15

3147459R1

WASHER

TWO-PIECE

2шт.

16

3142474R1

CIRCLIP

1шт.

17

3216409R1

SPACER

RING

1шт.

18

3147941R91

BEARING, NEEDLE

1шт.

19

17006R1

BALL

STEEL 3/16 DIA

1шт.

20

3142472R96

GEAR-SET

ROAD RANGE 37/32 TEETH - 25 KM -

1шт.

20

3142468R96

GEAR-SET

ROAD RANGE 35/34 TEETH 30 KM -

1шт.

21

3147184R3

THRUST WASHER

HRUST 3.0 MM - .118 INCHES -

1шт.

21

3147298R3

THRUST WASHER

THRUST 3.2 MM - .126 INCHES -

1шт.

21

3147299R3

THRUST WASHER

THRUST 3.4 MM - .134 INCHES -

1шт.

21

3147300R3

THRUST WASHER

THRUST 3.6 MM - .142 INCHES -

1шт.

21

3148301R3

WASHER, THRUST 3.8 MM - .105 INCHES - - AS REQUIRED

1шт.

22

933946R2

CIRCLIP

1шт.

23

3057277R94

TAPERED BEARING

1шт.

24

3057278R2

RING NUT

RING

4шт.

25

3139218R1

WASHER

WASHER

2шт.

26

3146814R1

RING, SNAP

RING SNAP CIRCLIP

2шт.

27

3003911R1

TAPERED BEARING

2шт.

28

3142461R3

COUNTERSHAFT

REAR

1шт.

29

933088R1

SNAP RING,M50, Ext

1шт.
