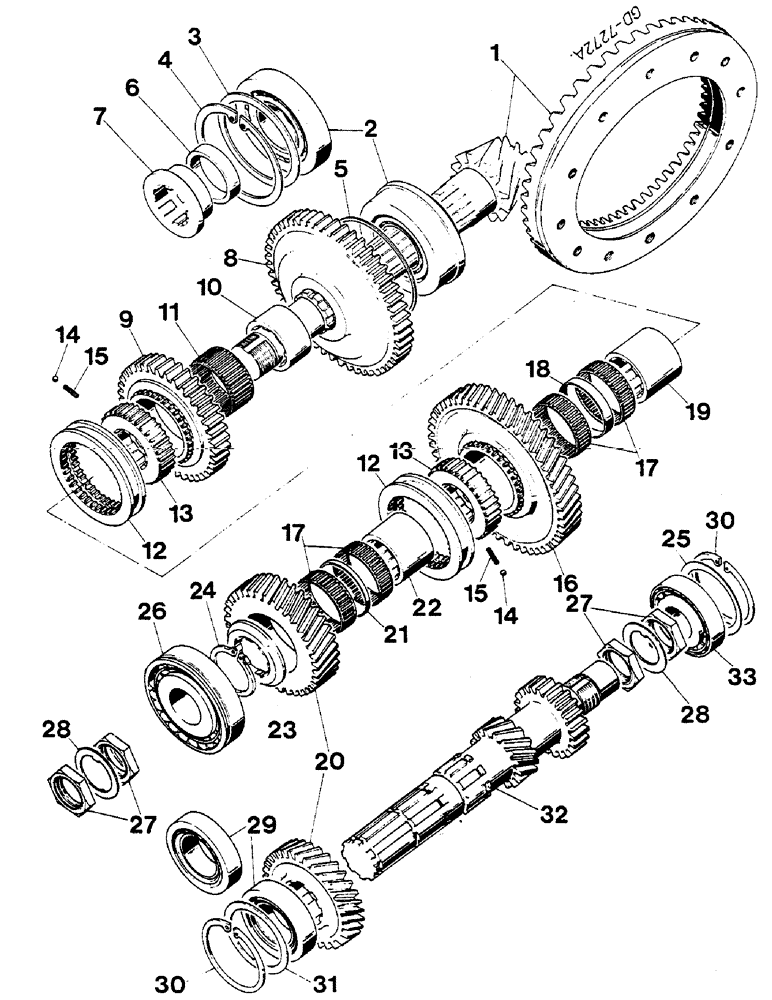

Запчасти Case IH 844S (07-063) - RANGE TRANSMISSION, VERSION WITH OR WITHOUT SPEED REDUCER (04) - Drive Train

1

3220020R94

GEAR, BEVEL

BEVEL GEAR SHAFT, SPLINE WITH DRIVE BEVEL GEAR 12/51 TEETH

1шт.

2

3057266R92

TAPERED BEARING

- 743/745S -

1шт.

2

3147786R91

ROLLER BEARING,55 mm ID x 127 mm OD x 45.5 mm

ROLLER - 844S -

1шт.

3

3137095R1

SHIM

2.0 MM - .079 INCHES -

1шт.

3

3137096R1

SHIM

2.1 MM - .083 INCHES -

1шт.

3

3137097R1

SHIM

2.2 MM - .087 INCHES -

1шт.

3

3137098R1

SHIM

2.3 MM - .091 INCHES -

1шт.

3

3137099R1

SHIM

2.4 MM - .094 INCHES -

1шт.

3

3137100R1

SHIM

2.5 MM - .098 INCHES -

1шт.

3

3137101R1

SHIM

2.6 MM - .102 INCHES -

1шт.

3

3137102R1

SHIM

2.7 MM - .106 INCHES -

1шт.

3

3137103R1

SHIM

2.8 MM - .110 INCHES -

1шт.

3

3137104R1

SHIM

2.9 MM - .114 INCHES - - AS REQUIRED - 743/745S -

1шт.

4

3137156R1

CIRCLIP

- 743/745S -

1шт.

5

3147646R1

SHIM

0.1 MM

1шт.

5

3147647R1

SHIM

0.3 MM

1шт.

5

3147648R1

SHIM

0.5 MM

1шт.

5

3147649R1

SHIM

1.0 MM - AS REQUIRED - 844S -

1шт.

6

3221691R1

BUSHING

RING, SPACER, - 743/745S -

1шт.

7

3221420R2

BUSHING

RING, SPACER - FOR TRACTORS W/O GROUND SPEED PTO -

1шт.

8

3221291R2

GEAR

GROUND SPEED PTO 54 TEETH

1шт.

9

3220016R3

PINION

GEAR, REVERSE RANGE 37 TEETH

1шт.

10

3221419R1

SPLINED COUPLING

BUSHING, BEARING

1шт.

11

3223127R91

BEARING, NEEDLE,65mm ID x 70mm OD x 29.8mm W

1шт.

12

3221690R2

COLLAR

SHIFTER

2шт.

13

3221689R2

PINION

RING, COUPLING

2шт.

14

934965R1

BALL,7.5mm OD, Gr 28

6шт.

15

3221840R2

SPRING

6шт.

16

3221682R1

GEAR

FIELD RANGE - 54 TEETH (-XXX)

1шт.

16

3230155R1

PINION

GEAR, FIELD RANGE - 54 TEETH (XXX-)

1шт.

16

3230155R1

PINION

GEAR, FIELD RANGE - 54 TEETH - VERSION WITH GROUND SPEED PTO -

1шт.

17

3223128R91

BEARING, NEEDLE

4шт.

18

3221412R1

SPACER

RING

1шт.

19

3221417R1

BUSHING

BEARING

1шт.

20

3221836R94

GEAR-SET

OF ROAD RANGE - 37/32 TEETH - 25 KM -

1шт.

20

3221837R94

GEAR-SET

OF ROAD RANGE - 35/54 TEETH - 30 KM -

1шт.

21

3221411R1

SPACER

RING

1шт.

22

3221418R1

SPLINED COUPLING

BUSHING, BEARING

1шт.

23

3221414R1

SPACER

7.4 MM

1шт.

23

3221416R1

SPACER

7.6 MM

1шт.

23

3221407R1

SPACER

7.8 MM

1шт.

23

3221415R1

SPACER

8.0 MM

1шт.

23

3221413R1

SPACER

8.2 MM - AS REQUIRED

1шт.

24

933946R1

RING, SNAP

RING SNAP CIRCLIP

1шт.

25

3147293R1

WASHER

1шт.

26

3057277R94

TAPERED BEARING

1шт.

26

3221424R91

TAPERED BEARING

- VERSION WITH GROUND SPEED PTO -

1шт.

27

3057278R2

RING NUT

RING - AS REQUIRED

1шт.

28

3139218R1

WASHER

WASHER - AS REQUIRED

1шт.

29

3003911R1

TAPERED BEARING

1шт.

30

3146814R1

RING, SNAP

RING SNAP CIRCLIP

2шт.

31

3146676R1

WASHER

1шт.

32

3221688R1

COUNTERSHAFT

REAR

1шт.

33

3003911R1

TAPERED BEARING

1шт.
