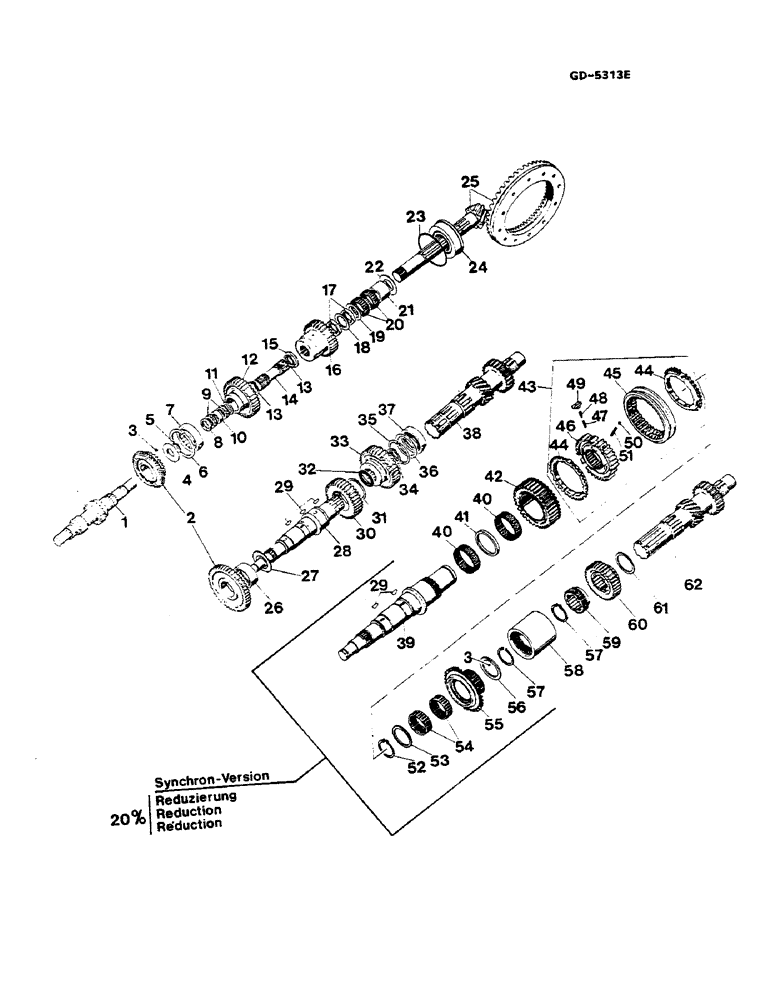

Запчасти Case IH 844S (07-059) - SPEED REDUCER AND SPECIAL PARTS (04) - Drive Train

1

3147663R1

SHAFT

MAIN DRIVE 19/14 TEETH - 25 KM

1шт.

1

3147664R1

SHAFT

MAIN DRIVE 19/13 TEETH 30 KM

1шт.

GEAR, SET 3 RD SPEED - SEE GEARSHIFT TRANSMISSION, SYNCHRONIZER -

1шт.

3

17006R1

BALL

STEEL

2шт.

4

3057258R2

THRUST WASHER

6.40 MM

1шт.

4

3058628R2

THRUST WASHER

6.45 MM

1шт.

4

3058629R2

THRUST WASHER

6.50 MM

1шт.

4

3058630R2

THRUST WASHER

6.55 MM

1шт.

4

3058631R2

THRUST WASHER

6.60 MM

1шт.

4

3058632R2

THRUST WASHER

6.65 MM

1шт.

4

3058633R2

THRUST WASHER

6.70 MM

1шт.

4

3058634R2

THRUST WASHER

6.75 MM

1шт.

4

3058635R2

THRUST WASHER

6.80 MM

1шт.

4

3058636R2

THRUST WASHER

6.85 MM - AS REQUIRED

1шт.

5

933683R1

SNAP RING,M36, Ext

1шт.

6

933374R1

SNAP RING,Int, M100 x 3

CIRCLIP

1шт.

7

3147785R91

ROLLER BEARING,66 mm ID x 100 mm OD x 21 mm

ROLLER

1шт.

8

3147640R1

THRUST WASHER

THRUST

1шт.

9

3142143R1

BEARING, ROLLER

2шт.

10

3147639R1

SPACER

1шт.

11

3147629R1

WASHER

THRUST

1шт.

12

3147638R1

GEAR

SPUR 51 TEETH - 70% REDUCTION

1шт.

12

3147636R1

GEAR

SPUR 35 TEETH 20% REDUCTION

1шт.

13

933075R1

SNAP RING,M40, Ext

CIRCLIP

1шт.

14

3147631R1

SHAFT

CONNECTING

1шт.

15

3225169R1

SHIM

0.5 MM

1шт.

15

3148617R1

SHIM

1.0 MM

1шт.

15

3148618R1

SHIM

2.0 MM - AS REQUIRED

1шт.

16

3234424R1

PINION

GEAR, SPUR - 32 TEETH

1шт.

17

3057278R2

RING NUT

RING

2шт.

18

3139218R1

WASHER

WASHER

1шт.

19

3147665R2

THRUST WASHER

1шт.

20

3148595R91

BEARING, NEEDLE,55mm ID x 63mm OD x 19.8mm W

2шт.

21

3148594R1

BUSHING

G

1шт.

22

3147632R1

THRUST WASHER

1шт.

23

3147646R1

SHIM

0.1 MM

1шт.

23

3147647R1

SHIM

0.3 MM

1шт.

23

3147648R1

SHIM

0.5 MM

1шт.

23

3147649R1

SHIM

1.0 MM - AS REQUIRED

1шт.

24

3147786R91

ROLLER BEARING,55 mm ID x 127 mm OD x 45.5 mm

TAPERED ROLLER

1шт.

25

3221421R93

GEAR, BEVEL

BEVEL GEAR SHAFT, SPLINE WITH DRIVE BEVEL GEAR 12/51 TEETH

1шт.

26

3148655R91

BEARING, NEEDLE

1шт.

27

3057257R1

SPRING WASHER

70% REDUCTION

1шт.

28

3147633R2

COUNTERSHAFT

FRONT 20% REDUCTION

1шт.

28

3147634R3

COUNTERSHAFT

FRONT 19 TEETH - 70% REDUCTION -

1шт.

29

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

AS REQUIRED

1шт.

30

3148604R91

WHEEL GEAR

SPUR 34 TEETH 20% REDUCTION

1шт.

31

934332R1

RING

CIRCLIP, 20% REDUCTION

1шт.

32

3148768R93

SPRING

1шт.

33

3147635R3

GEAR

SPUR - 38 TEETH

1шт.

34

933088R1

SNAP RING,M50, Ext

1шт.

35

3146814R1

RING, SNAP

RING SNAP CIRCLIP

1шт.

36

3146676R1

WASHER

1шт.

37

3148445R91

BEARING, ROLLER

TAPERED

1шт.

38

3221687R1

COUNTERSHAFT

REAR

1шт.

39

3226411R1

COUNTERSHAFT

FRONT 20% REDUCTION

1шт.

40

3226997R91

NEEDLE BEARING CAGE

NEEDLE

2шт.

41

3226396R1

SPACER

RING

1шт.

42

3226402R1

PINION

GEAR, 34 TEETH 20% REDUCTION

1шт.

43

3226391R91

SYNCHRONIZER

1шт.

44

3146645R1

SYNCHRO RING

2шт.

45

3135831R1

COLLAR

SHIFTER

1шт.

46

3226392R1

SYNCHRO BODY

1шт.

47

3135836R1

SPRING

3шт.

48

3135835R1

BALL STUD

BALL PIN BOLT

3шт.

49

3135833R1

LATCH

3шт.

50

3057501R1

BALL

3шт.

51

3232067R1

SPRING

3шт.

52

3232850R1

RING, SNAP

RING SNAP CIRCLIP

1шт.

53

3226394R1

SPACER

RING, SPACER

1шт.

54

3226996R91

NEEDLE BEARING CAGE

NEEDLE

1шт.

55

3226397R1

PINION

GEAR, COUPLING

1шт.

56

3226395R1

WASHER

THRUST

1шт.

57

933088R1

SNAP RING,M50, Ext

2шт.

58

3226399R1

SPLINED COUPLING

1шт.

59

3226400R1

PINION

GEAR, COUPLING

1шт.

60

3226393R1

PINION

GEAR, 38 TEETH

1шт.

61

3226401R1

SPACER

RING

1шт.

62

3226409R1

COUNTERSHAFT

REAR

1шт.
