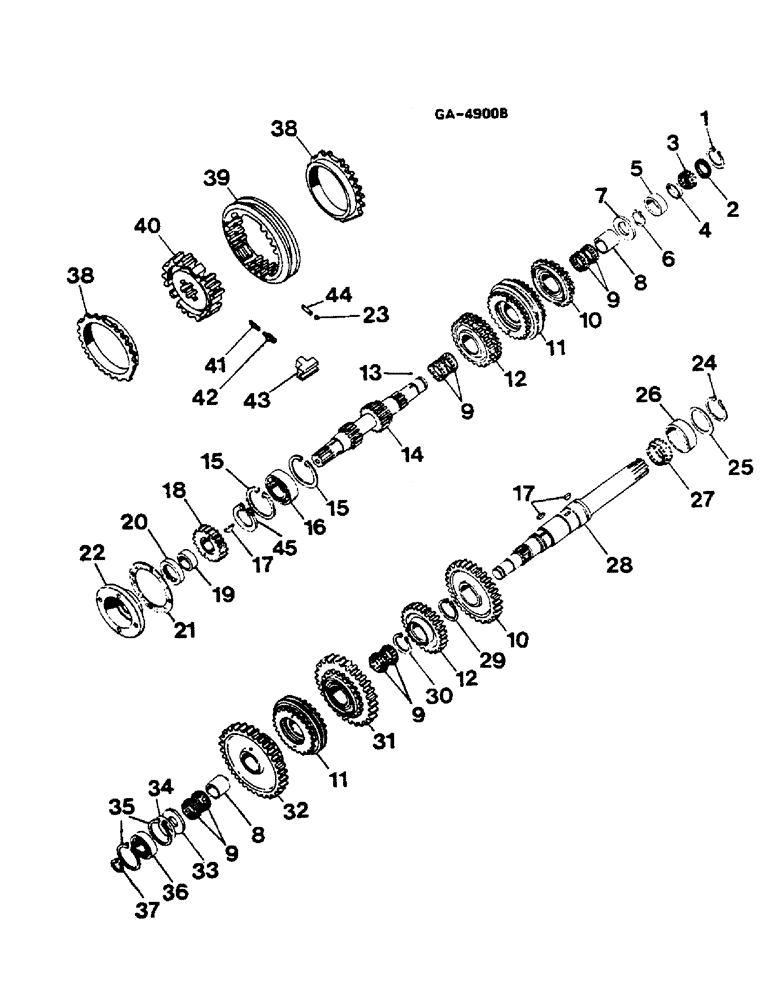

Запчасти Case IH 844S (07-045) - GEARSHIFT TRANSMISSION, SYNCHRONIZER (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
3142144R1
RING, SNAP
RING SNAP CIRCLIP
1шт.
2
3142146R1
WASHER
DISTANCE
1шт.
3
3142143R91
BEARING, ROLLER,33 mm ID x 49 mm OD x 14.8 mm
1шт.
4
3142145R1
SPACER
RING
1шт.
5
3142148R1
RETAINER
RING, BEARING
1шт.
6
933683R1
SNAP RING,M36, Ext
1шт.
7
3057258R2
THRUST WASHER
6.40 MM - .252 INCHES -
1шт.
7
3058628R2
THRUST WASHER
6.45 MM - .254 INCHES -
1шт.
7
3058629R2
THRUST WASHER
6.50 MM - .256 INCHES -
1шт.
7
3058630R2
THRUST WASHER
6.55 MM - .258 INCHES -
1шт.
7
3058631R2
THRUST WASHER
6.60 MM - .260 INCHES -
1шт.
7
3058632R2
THRUST WASHER
6.65 MM - .262 INCHES -
1шт.
7
3058633R2
THRUST WASHER
6.70 MM - .264 INCHES -
1шт.
7
3058634R2
THRUST WASHER
6.75 MM - .266 INCHES -
1шт.
7
3058635R2
THRUST WASHER
6.80 MM - .268 INCHES -
1шт.
7
3058636R2
THRUST WASHER
6.85 MM - .270 INCHES - AS REQUIRED
1шт.
8
3057253R1
NEEDLE BEARING
RING, NEEDLE BEARING
2шт.
9
3145445R91
BEARING ASSY
NEEDLE
4шт.
10
3145436R91
GEAR-SET
3RD SPEED 26/45 TEETH - 25 KM
1шт.
10
3145435R91
GEAR-SET
3RD SPEED 27/44 TEETH - 30 KM
1шт.
10
3148643R92
GEAR-SET
3RD SPEED 26/25 TEETH - 25 KM - FOR TRACTORS W/SPEED REDUCER -
1шт.
10
3148644R92
GEAR-SET
3RD SPEED 27/44 TEETH - 30 KM WITH SPEED REDUCER -
1шт.
11
3146644R91
SYNCHRONIZER
WITH 23, 38-44
2шт.
12
3142823R91
GEAR-SET
4TH SPEED 36/39 TEETH - 25 KM
1шт.
12
3142828R91
GEAR-SET
OF 4 SPEED 37/39 TEETH 30 KM
1шт.
13
17006R1
BALL
STEEL
1шт.
14
3145442R1
SHAFT
MAIN DRIVE, SINGLE CLUTCH - 19/14 TEETH - 25 KM -
1шт.
14
3145450R1
SHAFT
MAIN DRIVE, SINGLE CLUTCH - 19/13 TEETH - 30 KM -
1шт.
14
3145453R1
SHAFT
MAIN DRIVE, DOUBLE CLUTCH - 19/14 TEETH - 25 KM -
1шт.
14
3145452R1
SHAFT
MAIN DRIVE, DOUBLE CLUTCH 19/13 TEETH 30 KM -
1шт.
15
933077R1
SNAP RING,M90, Int
CIRCLIP
2шт.
16
3137155R91
BEARING, ROLLER
1шт.
17
126-117
WOODRUFF KEY,#91, 1/4" x 3/4", HT
SEE ENGINE PTO, GROUND SPEED PTO
3шт.
18
3134541R91
GEAR-SET
PTO DRIVE 28/56 TEETH - SEE ALSO ENGINE PTO, GROUND SPEED PTO-
1шт.
19
3057315R1
SPACER
RING - SEE ALSO ENGINE PTO, GROUND SPEED PTO -
1шт.
20
3131160R1
SEAL, OIL
1шт.
20
3145778R1
SEAL
OIL - OPTIONAL - SEE ALSO ENGINE PTO, GROUND SPEED PTO -
1шт.
21
3134518R1
GASKET,0.5mm Thk
SEE ALSO ENGINE PTO, GROUND SPEED PTO -
1шт.
22
3057187R3
RETAINER
- 743/745S - - SEE ALSO ENGINE PTO, GROUND SPEED PTO -
1шт.
22
3145775R1
FLANGE
RETAINER, - 844S - - SEE ALSO ENGINE PTO, GROUND SPEED PTO -
1шт.
179817
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd
4шт.
179821
BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5
4шт.
23
3057501R1
BALL
6шт.
24
933089R1
SNAP RING,M60, Ext
1шт.
25
3057257R1
SPRING WASHER
SPRING
1шт.
26
3057256R1
NEEDLE BEARING
RING, NEEDLE BEARING, OUTER
1шт.
27
3057255R91
NEEDLE BEARING CAGE,60mm ID x 68mm OD x 23mm W
1шт.
28
3057073R2
COUNTERSHAFT
FRONT, W/OUT MULTI-DISC CLUTCH -
1шт.
29
933030R1
SNAP RING,M55, Ext
CIRCLIP
1шт.
30
933088R1
SNAP RING,M50, Ext
1шт.
31
3145440R91
GEAR
2ND SPEED 52 TEETH
1шт.
32
3142826R91
GEAR
1 ST SPEED 61 TEETH - 25 KM
1шт.
32
3142827R91
GEAR
1ST SPEED 62 TEETH 30 KM
1шт.
33
3059939R1
THRUST WASHER
45 X 30.2 X 5.25 MM
1шт.
33
3059938R1
THRUST WASHER
68 X 30.2 X 10 MM
1шт.
33
3057254R1
THRUST WASHER
68 X 30.2 X 15.3 MM - AS REQUIRED
1шт.
34
3058637R1
SHIM,30.07mm ID x 42.33mm OD x 0.1mm Thk
SHIM, 0.1 MM - .004 INCHES -
1шт.
34
3058638R1
SHIM,30.07mm ID x 42.33mm OD x 0.2mm Thk
SHIM, 0.2 MM - .008 INCHES -
1шт.
34
3058639R1
SHIM,30.07mm ID x 42.33mm OD x 0.3mm Thk
SHIM, 0.3 MM - .012 INCHES -
1шт.
34
3058640R1
SHIM
0.5 MM - .020 INCHES - - AS REQUIRED
1шт.
35
933076R1
SNAP RING,M72, Int
CIRCLIP
2шт.
36
3137154R91
BEARING
ROLLER
1шт.
37
933086R1
SNAP RING,M30, Ext
1шт.
38
3146645R1
SYNCHRO RING
4шт.
39
3135831R1
COLLAR
SHIFTER
2шт.
40
3135834R1
SYNCHRO BODY
2шт.
41
3135836R1
SPRING
6шт.
42
3135835R1
BALL STUD
BALL PIN BOLT
6шт.
43
3135833R1
LATCH
6шт.
44
3057503R1
SPRING
6шт.
45
933045R1
CIRCLIP
1шт.
Выбрано товаров: 72
