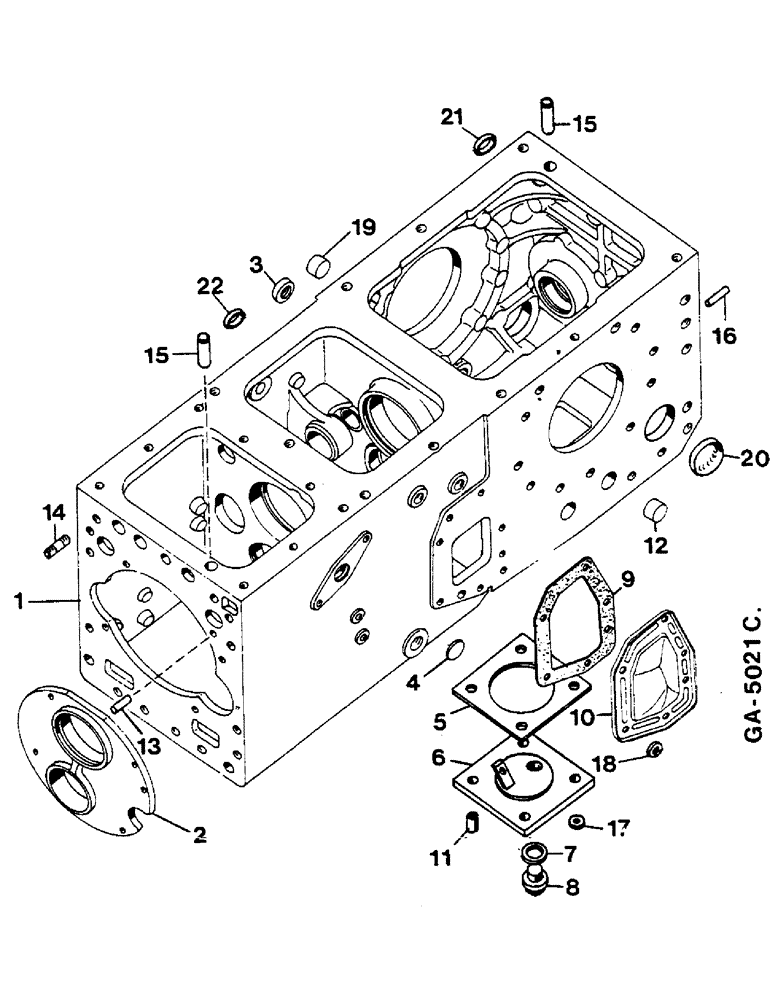

Запчасти Case IH 844S (07-042) - TRANSMISSION CASE (04) - Drive Train

1

3223392R94

CASE

TRANSMISSION, - WITH 3145269R1 FOR 743/745S -

1шт.

1

3224955R93

CASE

TRANSMISSION, - WITH 3145269R1 FOR 844S -

1шт.

1

3223393R94

CASE

TRANSMISSION - WITH 3145269R1 AND 3057012R3, 743/745S/844S WITH SPEED REDUCER -

1шт.

3145368R1

STUD

5/8 X 59 MM

2шт.

103325

LOCK WASHER,5/8"

2шт.

114507

JAM NUT,Jam, 5/8"-11, G5

2шт.

2

3142147R1

COVER

BEARING SUPPORT

1шт.

2

3057012R3

COVER

BEARING SUPPORT - FOR TRACTORS W/SPEED REDUCER -

1шт.

2

3145162R1

WASHER

COVER, BEARING SUPPORT - FOR TRACTORS W/POWER-SHIFT TRANSMISSION -

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

4шт.

103320

LOCK WASHER,5/16"

4шт.

3

715815R91

OIL SEAL

- FOR TRACTORS WITH MECH. BRAKE -

1шт.

4

172558

PLUG,Exp, 1 1/4"

EXPANSION

1шт.

5

3145274R1

GASKET

1шт.

5

3146399R1

GASKET

FOR TRACTORS WITHOUT DRAFT CONTROL

1шт.

6

3145265R91

COVER

1шт.

6

3146397R91

COVER

FOR TRACTORS W/OUT DRAFT CONTROL

1шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

BOLT, 1/2 X 16 MM

2шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

2шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

7

933608R1

SEALING RING,M26 x 31 x 2

1шт.

8

3059999R2

PLUG

1шт.

9

3057245R2

GASKET

1шт.

10

3057244R1

COVER

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

11

932570R1

LOCK PIN,M16 x 20, Slotted

2шт.

12

3232170R1

PLUG

"U"

1шт.

13

37-2614

DOWEL,3/8" x 7/8"

1шт.

14

3057243R1

STUD

8шт.

103323

LOCK WASHER,1/2"

8шт.

102637

NUT,1/2"-13, G5

8шт.

15

932737R1

DOWEL,M16 x 28

PIN

2шт.

16

141284

PIN,25.4mm OD x 31.75mm L

2шт.

17

16038R1

WASHER

13 X 25 X 2.7 MM

4шт.

17

11002VA

WASHER

13 X 22 X 1.3 MM

4шт.

18

50793H

WASHER

6шт.

19

3138578R1

PLUG

PIN

1шт.

20

934243R1

PLUG,M60, Tapered

"U"

2шт.

21

930342R1

PLUG,M16, Conical

"U" 16 MM DIA

4шт.

21

934038R1

PLUG,M11, Conical

"U" 11 MM DIA

2шт.

22

30452R1

PLUG,M22, Tapered

"U" 22 MM DIA

2шт.
