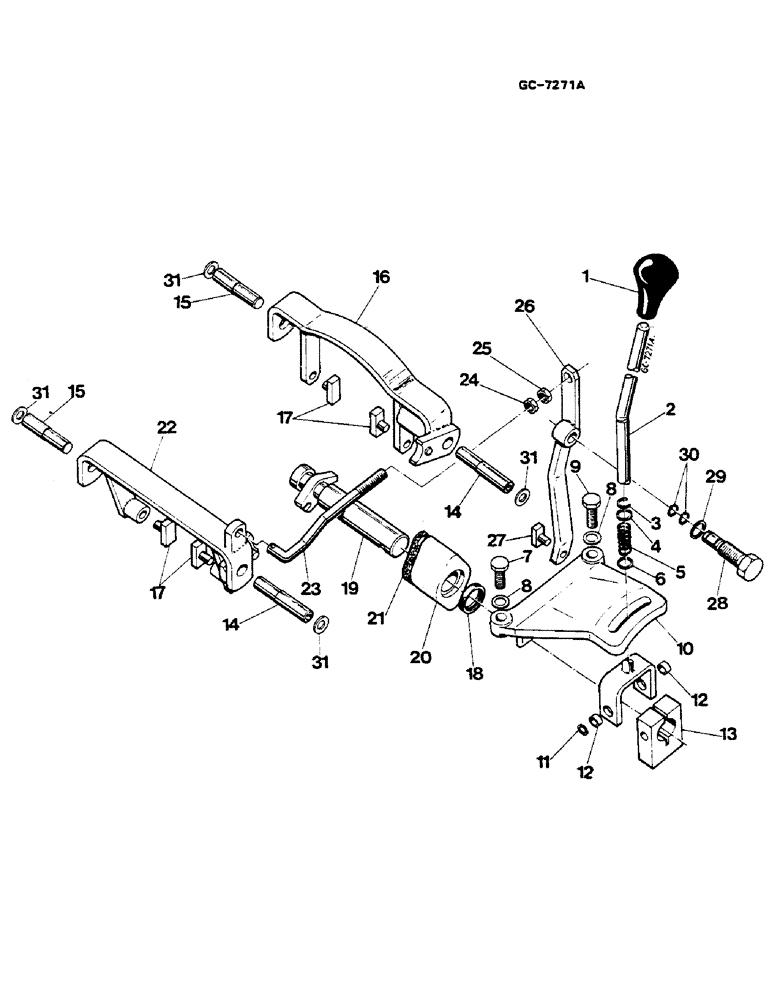

Запчасти Case IH 844S (07-034) - RANGE SHIFTER MECHANISM, FOR TRACTORS W/OUT POWER-SHIFT TRANSMISSION (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
3223643R1
KNOB
BALL, SHIFTER LEVER (-XXX)
1шт.
1
3230671R1
BUTTON
BALL, SHIFTER LEVER (XXX-)
1шт.
1
3230671R1
BUTTON
BALL, SHIFTER LEVER - FOR UNITS WITH SYNCHRON TYPE SPEED REDUCER - NOT FOR FRANCE -
1шт.
2
3223593R93
LEVER
SPEED RANGE
1шт.
2
3230032R1
LEVER
SPEED RANGE - FOR TRACTORS W/SYNCHRON TYPE SPEED REDUCER - NOT FOR FRANCE -
1шт.
3224437R1
BOLT
BOLT, M10 X 80 MM
1шт.
933999R1
THIN NUT,M10 x 1, Thin
M10
1шт.
3
933328R1
SNAP RING,M16, Ext
1шт.
4
933349R1
WASHER,M17 ID x 30 OD x 3 Thk
1шт.
5
3145379R1
SPRING
1шт.
6
934202R1
BELLEVILLE WASHER,M16 Bolt Size x 31.5mm OD x 1.75mm Thk
SPRING
1шт.
8
934364R1
WASHER
2шт.
9
24866R1
BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8
1шт.
10
3221924R4
GUIDE
LEVER
1шт.
11
Q152
WASHER
2шт.
12
3223597R2
BUSHING
SPACER
2шт.
13
3223596R1
CLAMP
BLOCK, CLAMPING
1шт.
14
3223578R1
STRAIGHT PIN
GUIDE 70 MM
2шт.
934590R1
BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd
2шт.
15
3221943R1
PIN
GUIDE 60 MM
2шт.
934590R1
BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd
2шт.
16
3221843R93
FORK
ARM, SHIFTING, REVERSE AND FIELD RANGE
1шт.
17
3223614R2
SLIDE
BLOCK
4шт.
18
3145060R91
OIL SEAL,30mm ID x 40mm OD x 8mm Thk
OIL
1шт.
19
3221842R1
SHAFT
PIN, SHIFTING
1шт.
20
3221841R1
FLANGE
1шт.
61-33828
HEX SOC SCREW,3/8"-16 x 1 3/4"
2шт.
25534R1
WASHER
2шт.
21
GASKET, PLASTIC - SEE LUBRICANTS, ANTIFREEZES ETC - AS REQUIRED -
1шт.
22
3221847R93
SHIFTER FORK
ARM, FIELD RANGE - ROAD RANGE
1шт.
23
3221392R1
LINKAGE
ROD, CONNECTING
1шт.
103384
COTTER PIN,1/8" x 3/4"
1шт.
24
144503
NUT, 3/8
1шт.
25
3223467R1
NUT
3/8
1шт.
26
3221388R92
LEVER
LOCKING, FOR GROUND SPEED PTO
1шт.
27
3057313R1
SLIDE
BLOCK
2шт.
28
3057801R1
SCREW
LOCK
2шт.
29
Q3501
WASHER
1шт.
30
933120R1
SNAP RING,M15, Ext
CIRCLIP
2шт.
31
933133R1
WASHER,M10.5 ID x 20 OD x 2 Thk
4шт.
Выбрано товаров: 41
