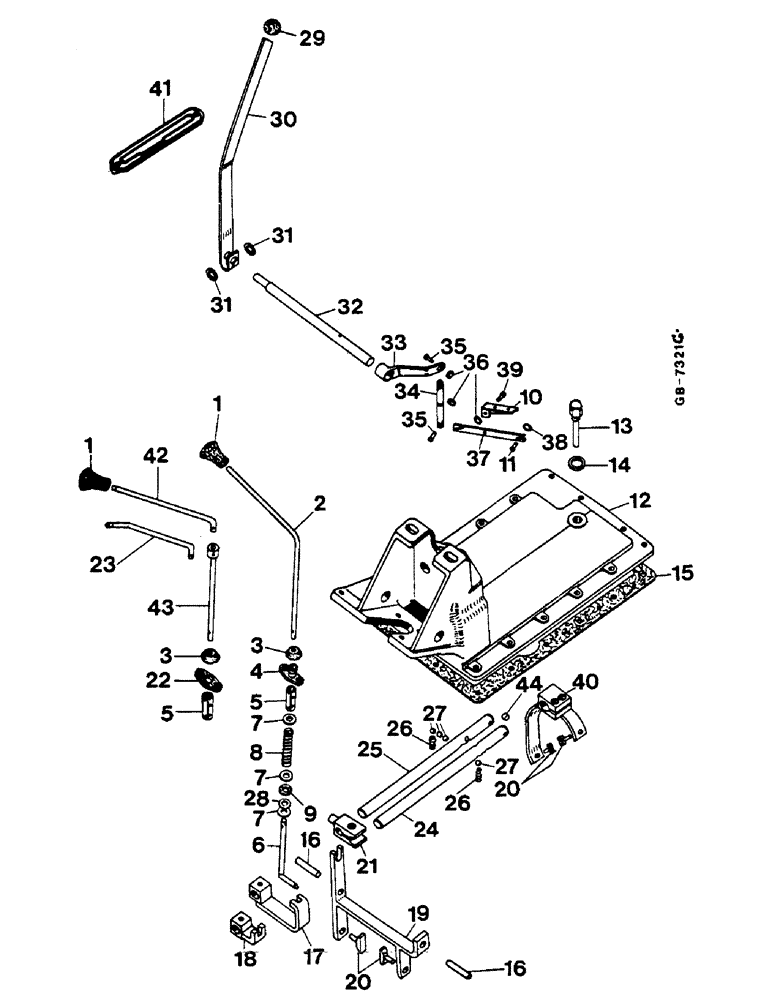

Запчасти Case IH 844S (07-027) - SHIFTER MECHANISM, TRANSMISSION COVER (04) - Drive Train

1

53717DA

BUTTON

KNOB, SHIFTER LEVER

1шт.

2

3145650R2

LEVER

GEARSHIFT

1шт.

3

3146319R1

INSULATOR

CAP, PROTECTION

1шт.

4

3145649R1

GUIDE

FLANGE

1шт.

931118R1

HEX SOC SCREW,M6 x 1 x 20mm, Cl 8.8

2шт.

Q5325

NUT

M6

2шт.

615009R1

WASHER

2шт.

5

3148557R1

BUSHING

1шт.

932265R1

LOCK PIN,M3 x 24, Slotted

4шт.

932742R1

LOCK PIN,M5 x 26, Slotted

4шт.

6

3145644R92

SHAFT

ROD, SHIFTER

1шт.

934794R1

COTTER PIN,M3.2 x 28

COTTER 3.2 X 28 MM

1шт.

7

551177R1

WASHER

AS REQUIRED

1шт.

8

713699R2

SPRING

1шт.

9

3145647R1

RING

FELT

1шт.

10

3145885R91

SUPPORT ASSY.

1шт.

179813

BOLT,Hex, 5/16" - 18 x 9/16", Gr 5

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

2шт.

11

932849R1

PIN,M6 x 22

SPARE PART HEADED

1шт.

934787R1

COTTER PIN,M1.6 x 10

COTTER 1.6 X 10 MM

1шт.

12

3145810R1

COVER

TRANSMISSION

1шт.

12

3145627R1

COVER

- FOR TRACTOR W/POWER-SHIFT TRANSMISSION -

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

13шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

13шт.

Q1504

WASHER

2шт.

13

3145363R3

FILTER

BREATHER

1шт.

14

933609R1

RING

1шт.

15

3057290R1

GASKET

1шт.

16

787583R1

PIN

2шт.

17

3145639R92

FORK

SECTION, SHIFTER, 1ST AND 2ND SPEED

1шт.

932671R1

LOCK PIN,M6 x 30, Slotted

1шт.

18

3145642R91

FORK

SECTION, SHIFTER, 3RD AND 4TH SPEED

1шт.

932671R1

LOCK PIN,M6 x 30, Slotted

1шт.

19

787830R21

NO LONGER SERVICED

ARM, TRIP

1шт.

20

3137031R1

SLIDE

BLOCK

4шт.

21

3057282R3

GUIDE

GEAR SHIFTER

1шт.

138242

HEX SOC SCREW,3/8" - 16 x 1"

1шт.

22

3223893R1

GUIDE

FLANGE, - FOR TRACTORS WITH CAB -

1шт.

931118R1

HEX SOC SCREW,M6 x 1 x 20mm, Cl 8.8

2шт.

Q5325

NUT

M6

2шт.

615009R1

WASHER

2шт.

23

3224672R2

LEVER, GEARSHIFT FOR FINLAND VERSION WITH CAB

1шт.

24

3145652R2

SHAFT

ROD, SHIFTER, 3RD AND 4TH SPEED (XXX-)

1шт.

24

3145652R2

SHAFT

ROD, SHIFTER, 3RD AND 4TH SPEED (-XXX) - ORDER 1 X 3 145 651 R2, 1 X 3 145 652 R2 AND 1 X 3402312R2 -

1шт.

25

3145651R2

SHAFT

ROD, SHIFTER, 1ST AND 2ND SPEED (XXX-)

1шт.

25

3145651R2

SHAFT

ROD, SHIFTER, 1ST AND 2ND SPEED (-XXX) - ORDER 1 X 3 145 651 R2, 1 X 3 145 652 R2 AND 1 X 3402312R2 -

1шт.

26

714409R1

SPRING

2шт.

27

933157R1

BALL,9mm Dia

5шт.

28

3145232R1

WASHER

1шт.

29

3134919R2

KNOB

BALL, SHIFTER LEVER

1шт.

30

3145897R1

LEVER

SHIFTER, FOR MULTI-DISC CLUTCH

1шт.

30

3225017R1

LEVER, SHIFTER, FOR MULTI-DISC CLUTCH FOR FINNISH TRACTORS WITH CAB

1шт.

179863

BOLT,Hex, 7/16" - 14 x 1 5/8"

7/16 X 41 MM

1шт.

425-107

NUT,7/16"-14, G5

1шт.

31

Q5028

WASHER

2шт.

32

3145894R1

ROD

SPARE PART SHIFTER

1шт.

33

3145891R91

ARM

LEVER, FOR MULTI-DISC CLUTCH

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

34

3145890R1

ROD

SHIFTER

1шт.

3145895R1

O-RING,2.4mm Thk x 13.3mm ID, 70 Duro

1шт.

35

932845R1

HEADED PIN,M8 x 22

2шт.

934788R1

COTTER PIN,M2 x 16

2 X 16 MM

2шт.

36

934033R1

WASHER,M8 x 15 x 2

3шт.

37

3145889R1

LEVER

SHIFTER

1шт.

38

934234R1

WASHER,M6 x 12 x 1.6

1шт.

39

932846R1

HEADED PIN,M8 x 35

HEADED

1шт.

934788R1

COTTER PIN,M2 x 16

2 X 16 MM

1шт.

40

3137034R21

FORK

GEAR SHIFTER

1шт.

138242

HEX SOC SCREW,3/8" - 16 x 1"

2шт.

41

3145896R1

GUIDE

LEVER

1шт.

905546R1

SELF-TAP SCREW,Slotted Oval Hd, M5.5 x 32

2шт.

42

3223894R1

ROD

SPARE PART LEVER, GEARSHIFT - FOR TRACTORS WITH CAB -

1шт.

43

3223890R91

ROD

SPARE PART SHIFTER - FOR TRACTORS WITH CAB -

1шт.

932265R1

LOCK PIN,M3 x 24, Slotted

2шт.

932742R1

LOCK PIN,M5 x 26, Slotted

2шт.

44

3402312R1

ROLL

(XXX-)

1шт.
