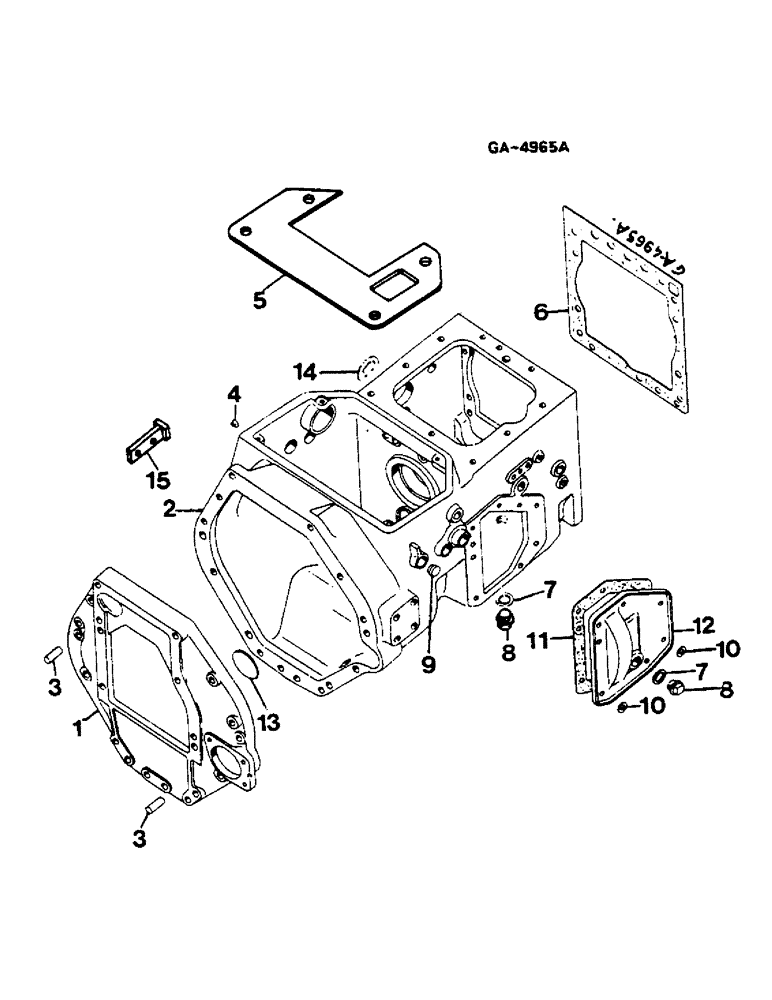

Запчасти Case IH 844S (07-017) - CLUTCH HOUSING (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
3055144R21
HOUSING
FLYWHEEL, - WITH 3 - 743/745S -
1шт.
1
3144583R93
HOUSING
FLYWHEEL - WITH 3 - 844S -
1шт.
3144464R1
STUD
1/2 X 1/2 X 263 MM - 844S -
2шт.
177889
BOLT, 1/2 X 51 MM
1шт.
179884
BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd
4шт.
103323
LOCK WASHER,1/2"
5шт.
102637
NUT,1/2"-13, G5
2шт.
2
3216037R2
HOUSING
CLUTCH - SINGLE CLUTCH -
1шт.
2
3224402R91
CLUTCH HOUSING
CLUTCH - DOUBLE CLUTCH -
1шт.
179856
BOLT,Hex, 7/16" - 14 x 3/4", Gr 5
1шт.
179884
BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd
5шт.
179888
LEVER
1шт.
179889
BOLT,Hex, 1/2" - 13 x 2", Gr 5
BOLT, 1/2 X 59 MM
5шт.
179895
BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5
2шт.
16099R1
BOLT,Hex, 1/2" - 13 x 11", Gr 5
6шт.
413-8136
BOLT,Hex, 1/2" - 13 x 8-1/2", Gr 5
6шт.
271556
WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5
1шт.
103323
LOCK WASHER,1/2"
13шт.
114507
JAM NUT,Jam, 5/8"-11, G5
1шт.
332040
LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg
1шт.
41-16
PLUG,Exp, 1"
EXPANSION 25 X 2 MM
3шт.
933155R1
SEALING RING,M16 x 20 x 1.5
2шт.
3
3055165R1
DOWEL,M16 x 36
PIN
2шт.
4
103883
PIPE PLUG,Slotted, Headless, 1/8" NPT
743/745S -
1шт.
5
3147485R1
COVER
CLUTCH HOUSING
1шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
4шт.
103319
LOCK WASHER,1/4"
4шт.
6
3057292R1
GASKET
1шт.
7
933609R1
RING
2шт.
8
3059999R2
PLUG
2шт.
9
3054575R1
PLUG
4шт.
10
50793H
WASHER
7шт.
11
3059918R2
GASKET
1шт.
12
3059917R11
PLATE
SIDE - FOR TRACTORS WITH POWER SHIFT TRANSMISSION -
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
1шт.
12
3134841R11
PLATE
SIDE - FOR TRACTORS W/OUT POWER SHIFT TRANSMISSION -
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
7шт.
13
3057293R1
PLUG
EXPANSION
1шт.
14
172604
PLUG,Exp, 3"
EXPANSION
1шт.
15
3147507R91
STOP
SPARE PART FOR MECHANICAL STEERING
1шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
2шт.
103323
LOCK WASHER,1/2"
2шт.
Выбрано товаров: 43
