(07-015) - DUST SEALING PARTS FOR CLUTCH HOUSING

Запчасти Case IH 844S (07-015) - DUST SEALING PARTS FOR CLUTCH HOUSING (04) - Drive Train

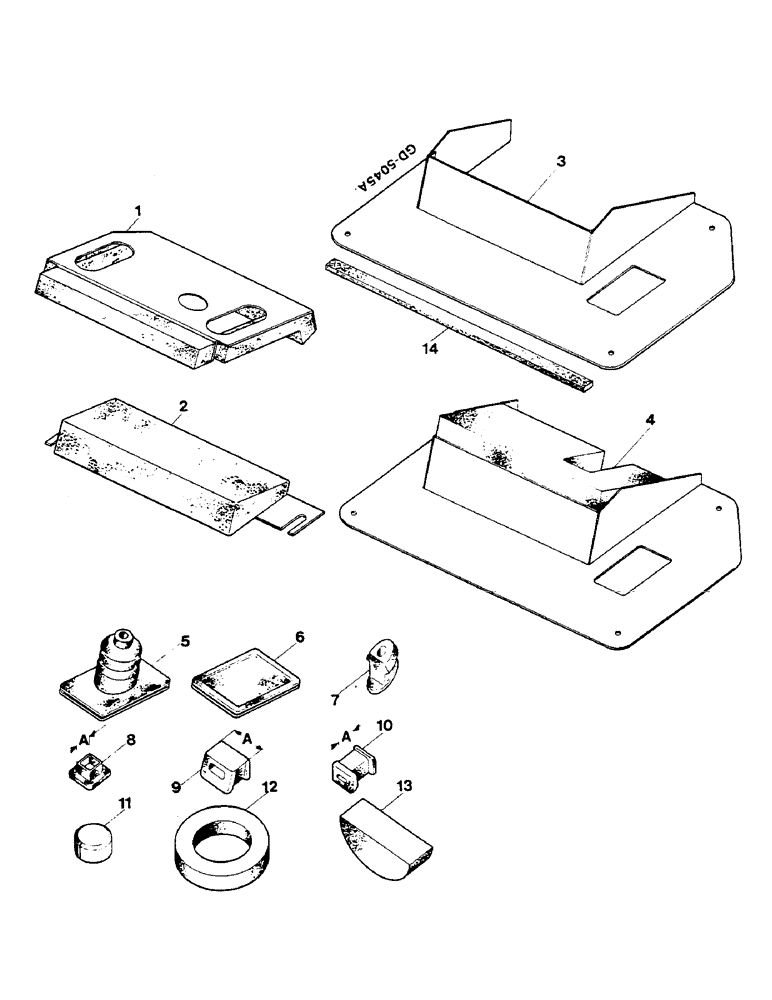

Схема запчастей Case IH 844S - (07-015) - DUST SEALING PARTS FOR CLUTCH HOUSING (04) - Drive Train
3
4
2
9
11
5
6
19
14
1
8
10
7
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3147480R92

SHROUD

1шт.

2

3147488R91

GUARD

SHROUD

1шт.

3

3147483R92

SHROUD

1шт.

4

3147491R92

SHROUD

1шт.

5

3147364R1

BOOT

1шт.

6

3147365R1

CAP

70 X 90 MM - AS REQUIRED

1шт.

7

3134421R1

PLUG

AS REQUIRED

1шт.

8

3134420R1

PLUG

AS REQUIRED

1шт.

9

3217971R1

PLUG

A - 37 MM

1шт.

9

3217972R1

PLUG

A - 25 MM - AS REQUIRED

1шт.

10

3147366R1

PLUG

A - 34 MM

1шт.

10

3147368R1

PLUG

A - 16 MM

1шт.

- AS REQUIRED

1шт.

11

3057297R1

PLUG

AS REQUIRED

1шт.

12

3134423R1

WASHER

SEALING - AS REQUIRED

1шт.

13

3137600R1

BLOCK

SPARE PART FILLING - AS REQUIRED

1шт.

14

3134920R2

SEAL

SEALING

1шт.
