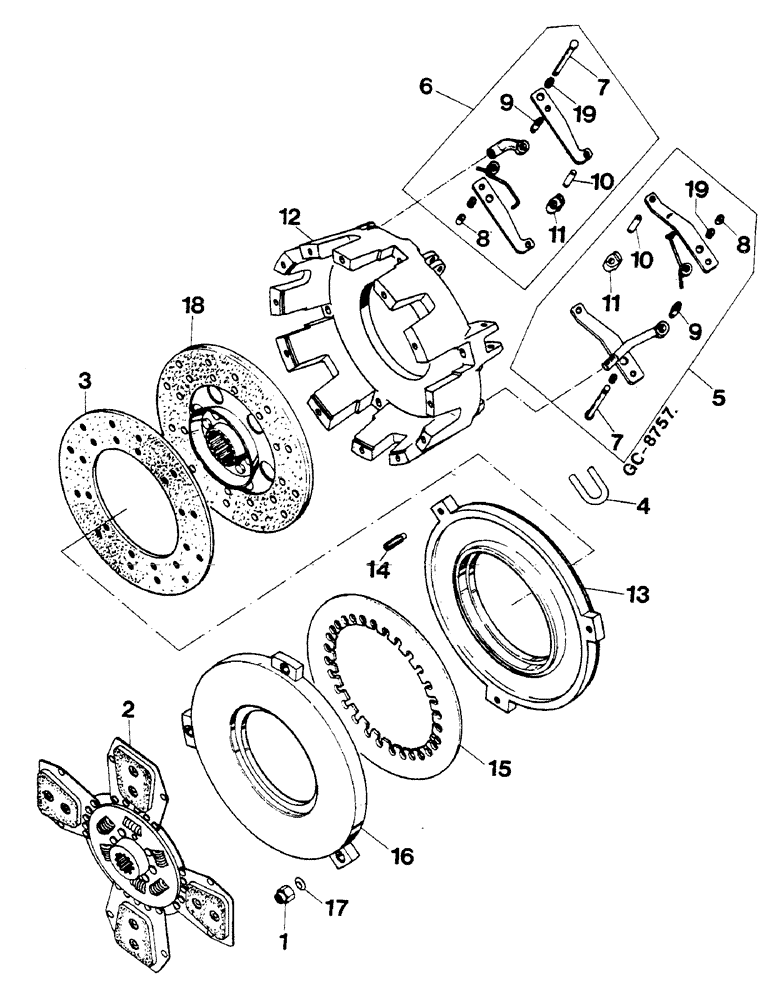

Запчасти Case IH 844S (07-013) - DOUBLE CLUTCH, LUK (04) - Drive Train

3137666R97

NO LONGER SERVICED

CLUTCH/Retired CLUTCH, - CONSISTS OF ITEMS 1-18 -

1шт.

1

3146772R2

NUT

ADJUSTING

3шт.

2

3225094R2

CLUTCH PLATE

DISC, WITH LININGS - ENGINE CLUTCH -

1шт.

3

3131328R1

LINING

2шт.

3

3229768R1

LINING

OPTIONAL

2шт.

3134887R1

RIVET

24шт.

4

3225048R1

PLATE, THRUST

STRAP, AUXILIARY

3шт.

5

3225954R91

PACKAGE, REPAIR

(ENGINE CLUTCH)

1шт.

6

3225955R91

PACKAGE, REPAIR

(PTO CLUTCH)

1шт.

7

3223909R1

PIN

6шт.

8

3223910R1

BUSHING

6шт.

9

PIN

6шт.

10

PIN

6шт.

11

PAD, WEAR

6шт.

12

3225042R1

HOUSING

1шт.

13

3225045R1

PLATE, THRUST

PRESSURE

1шт.

14

3225046R1

SET SCREW

ADJUSTING

3шт.

933681R1

THIN NUT,Thin, M10 x 1.5, Cl 04

3шт.

15

3137678R1

BELLEVILLE SPRING

1шт.

16

3225048R1

PLATE, THRUST

PRESSURE

1шт.

17

3147610R1

WASHER

BALL TYPE

3шт.

18

3058404R93

CLUTCH & DISC ASSY

PTO - WITH 3

1шт.

19

3223904R1

BUSHING

6шт.
