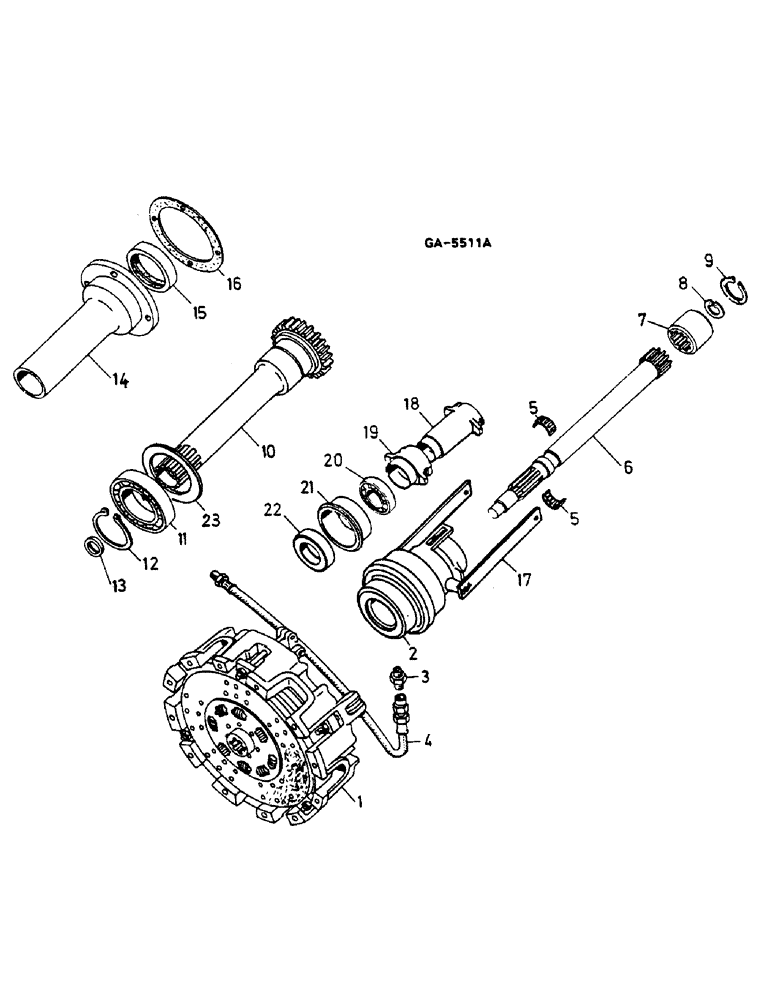

Запчасти Case IH 844S (07-010) - DOUBLE CLUTCH (04) - Drive Train

1

CLUTCH, DOUBLE - LUK - - SEE DOUBLE CLUTCH "LUK" -

1шт.

13-534

BOLT,Hex, 5/16" - 18 x 2-1/8", Gr 5

12шт.

186271

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

12шт.

102320

WASHER, LOCK 5/16

12шт.

2

3232020R91

STOP

SLEEVE, RELEASE - WITH 17, 20-22 (-XXX) - 844S -

1шт.

2

3232020R91

STOP

SLEEVE, RELEASE - WITH 17, 20-22 - ORDER ALSO 3401900R1 (-XXX) - 844S -

1шт.

933133R1

WASHER,M10.5 ID x 20 OD x 2 Thk

- 844S -

1шт.

3

3146395R1

UNION

1шт.

4

3137676R1

HOSE,6.00 mm ID x 370.00 mm

Lubricating

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

90 DEG./DEGRE/GRAD

1шт.

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

30 DEG./DEGRE/GRAD

1шт.

5

3057807R91

BEARING, NEEDLE

1шт.

6

3131009R1

SHAFT

CLUTCH - 743/745S -

1шт.

6

3145719R1

SHAFT

CLUTCH - 844S -

1шт.

7

3131008R1

COUPLING

1шт.

8

3057849R1

SNAP RING,M31, Int

1шт.

9

933075R1

SNAP RING,M40, Ext

CIRCLIP

1шт.

10

3134542R92

GEAR-SET

SHAFT, HOLLOW, WITH DRIVE GEAR - 28/56 TEETH - - 743/745S -

1шт.

10

3223116R91

GEAR-SET

SHAFT, HOLLOW, WITH DRIVE GEAR - 28/56 TEETH - - 844S -

1шт.

11

411847R91

BEARING

BALL

1шт.

12

933568R1

SNAP RING,M70, Ext

1шт.

13

3057808R1

OIL SEAL,30mm ID x 37mm OD x 4mm Thk

1шт.

14

3057815R2

TUBE

TUBE, GUIDE

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

4шт.

27326R1

WASHER,.344" x 11/16" x .089", HDN

743/745S

4шт.

14

3145735R92

COLUMN JACKET

TUBE, GUIDE

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

27326

WASHER, - 844S -

4шт.

15

3057810R92

OIL SEAL,70mm ID x 90mm OD x 13mm Thk

1шт.

15

3136423R91

OIL SEAL

OIL - OPTIONAL

1шт.

16

3134518R1

GASKET,0.5mm Thk

1шт.

17

3145728R1

BAR

2шт.

103384

COTTER PIN,1/8" x 3/4"

844S

2шт.

3057814R95

CLUTCH ASSEMBLY

SLEEVE, RELEASE - CONSISTS OF ITEMS 18-22 - - 743/745S -

1шт.

18

3058406R3

BUSHING

SLEEVE, RELEASE, INNER - 743/745S -

1шт.

19

3058408R2

BUSHING

RELEASE, OUTER - 743/745S -

1шт.

20

3146056R91

BEARING

RELEASE

1шт.

21

3142800R1

THRUST RING,106.2mm ID x 135mm OD x 44.85mm L

SLEEVE, RELEASE

1шт.

22

3142798R91

BEARING, BALL

RELEASE

1шт.

23

3223119R1

WASHER,85mm ID x 110mm OD x 1mm Thk

1шт.
