(07-006) - SINGLE CLUTCH, (-XXX)

Запчасти Case IH 844S (07-006) - SINGLE CLUTCH, (-XXX) (04) - Drive Train

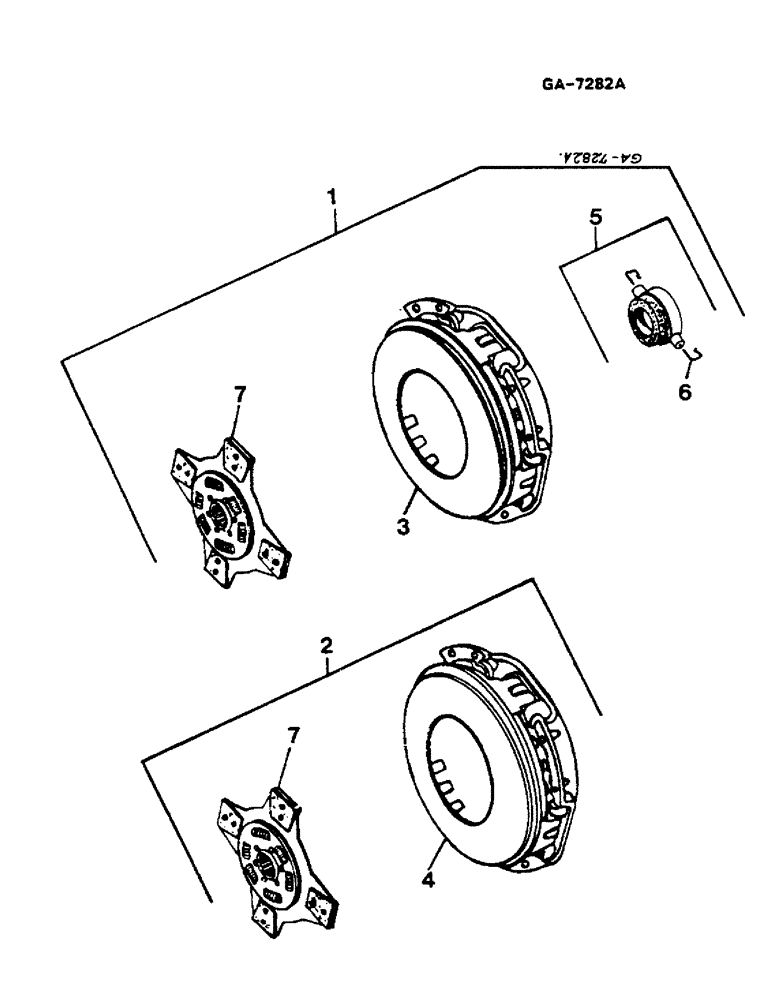

Схема запчастей Case IH 844S - (07-006) - SINGLE CLUTCH, (-XXX) (04) - Drive Train
7
7
4
1
5
6
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3142102R91

CLUTCH, SINGLE - 743/745S -

1шт.

2

3145226R91

CLUTCH ASSEMBLY

SINGLE - 844S -

1шт.

3

3142129R91

PLATE, THRUST

CLUTCH, - SEE CLUTCH MECHANISM, SINGLE CLUTCH -

1шт.

4

3145303R1

CLUTCH ASSEMBLY

SPARE PART SEE CLUTCH MECHANISM, SINGLE CLUTCH -

1шт.

5

3136859R91

RING

GRAPHITE

1шт.

6

712679R1

SPRING

CLIP

2шт.

7

3142128R91

DISC

CLUTCH WITH LININGS

1шт.
