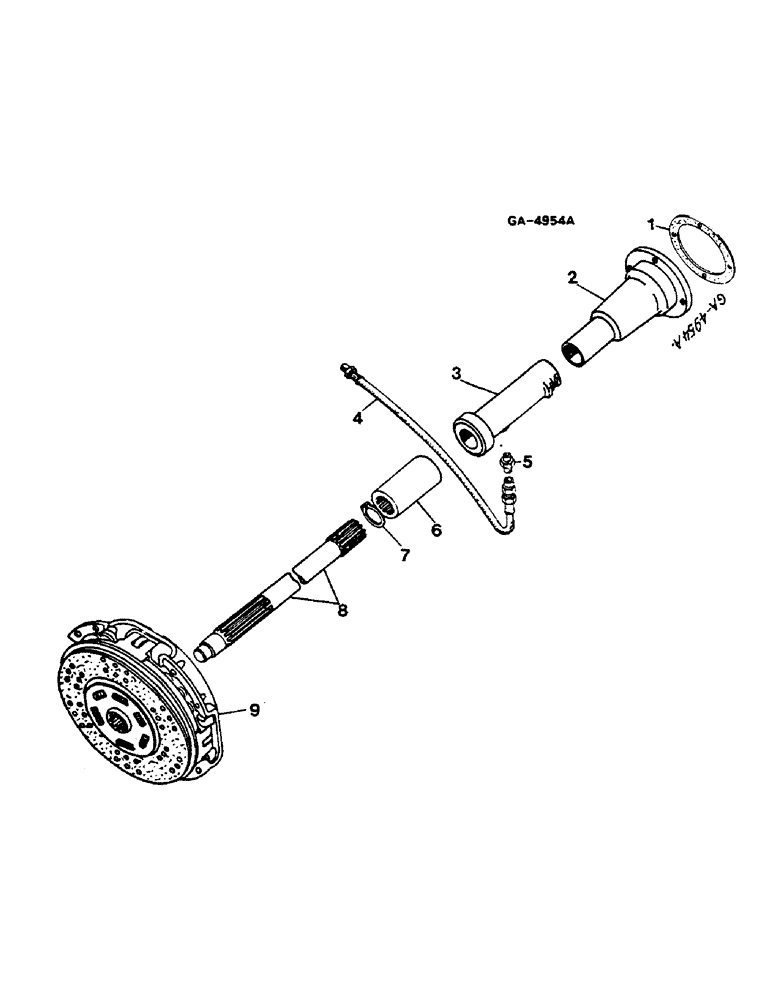

Запчасти Case IH 844S (07-004) - SINGLE CLUTCH, 844S (-XXX) (04) - Drive Train

1

3134518R1

GASKET,0.5mm Thk

1шт.

2

3145776R92

COLUMN JACKET

PIPE, GUIDE

1шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

4шт.

27326R1

WASHER,.344" x 11/16" x .089", HDN

4шт.

3

3145779R91

SUPPORT

SLEEVE, RELEASE

1шт.

4

3137676R1

HOSE,6.00 mm ID x 370.00 mm

Lubricating

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

1шт.

5

3146395R1

UNION

1шт.

6

3131184R1

SPLINED COUPLING

1шт.

7

933029R1

SNAP RING,M35, Ext

CIRCLIP

2шт.

8

3145773R1

SHAFT

CLUTCH

1шт.

9

CLUTCH, SINGLE - SEE SINGLE CLUTCH -

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

8шт.

103320

LOCK WASHER,5/16"

8шт.
