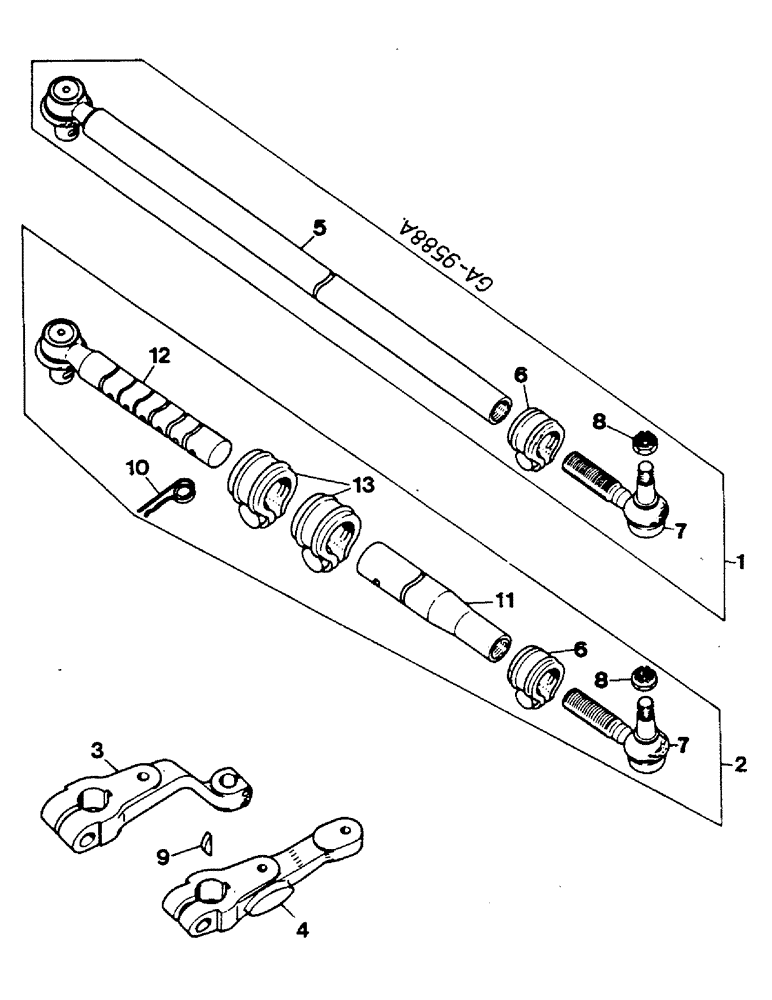

Запчасти Case IH 844S (14-17) - ROD, TIE, POWER STEERING, NOT USED W/FOUR-WHEEL DRIVE UNITS Suspension

1

3230081R91

TIE-ROD

TIE ROD M24

1шт.

2

3230088R91

TIE-ROD

ADJUSTABLE M24

1шт.

3

3224268R2

ARM

STEERING KNUCKLE, RH

1шт.

30775R1

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

30359R1

NUT

M10

2шт.

4

3224267R1

ARM

STEERING ROD, LH

1шт.

30775R1

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

30359R1

NUT

M10

2шт.

5

3230110R1

STEERING TIE-ROD

TIE ROD JOINT, BALL, WITH TUBE

1шт.

6

3116246R91

CLAMP

AS REQUIRED

1шт.

7

3223997R1

BALL JOINT

M24

1шт.

8

933066R1

NUT,M16 x 1.5

1шт.

932792R1

COTTER PIN,M4 x 28

COTTER 4 X 28 MM

1шт.

932848R1

PIN, SPLIT (COTTER)

PIN, COTTER 4 X 30 MM

2шт.

9

932786R1

KEY,M12 x 8 x 30, Par

2шт.

10

3223993R1

CLIP, SPRING

1шт.

11

3230109R1

TIE-ROD

TIE ROD TUBE

1шт.

12

3223996R1

BALL JOINT

1шт.

13

3223998R1

CLAMP

2шт.
