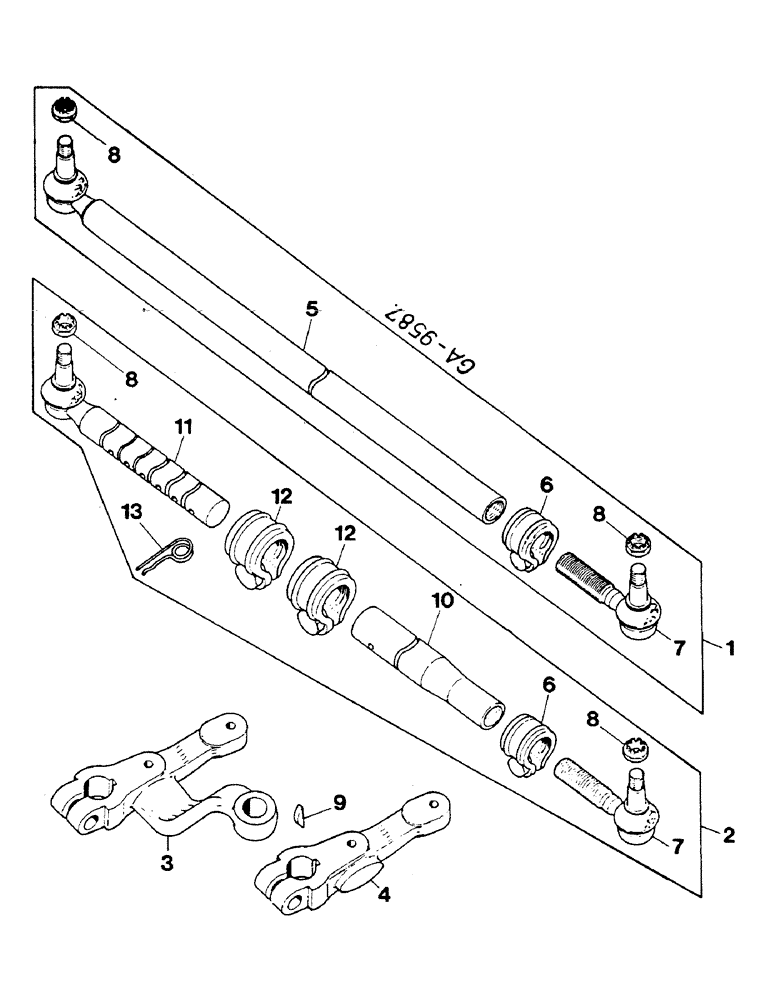

Запчасти Case IH 844S (14-15) - ROD, TIE, MECHANICAL STEERING Suspension

1

3223986R91

TIE-ROD

TIE ROD M24

1шт.

2

3223985R91

TIE-ROD

ADJUSTABLE M24

1шт.

3

3224278R91

LEVER

STEERING

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Course Threads

1шт.

103325

LOCK WASHER,5/8"

1шт.

102639

NUT,5/8"-11, G5

1шт.

4

3224267R1

ARM

STEERING ROD

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Course Threads

1шт.

103325

LOCK WASHER,5/8"

1шт.

102639

NUT,5/8"-11, G5

1шт.

5

3224263R1

BALL JOINT

WITH TUBE

1шт.

6

3116246R91

CLAMP

AS REQUIRED

1шт.

7

3223997R1

BALL JOINT

M24

1шт.

8

933066R1

NUT,M16 x 1.5

2шт.

932848R1

PIN, SPLIT (COTTER)

PIN, COTTER 4 X 30 MM

2шт.

9

932786R1

KEY,M12 x 8 x 30, Par

2шт.

10

3223994R1

TIE-ROD

TUBE

1шт.

11

3223995R1

BALL JOINT

1шт.

12

3223998R1

CLAMP

2шт.

13

3223993R1

CLIP, SPRING

1шт.
