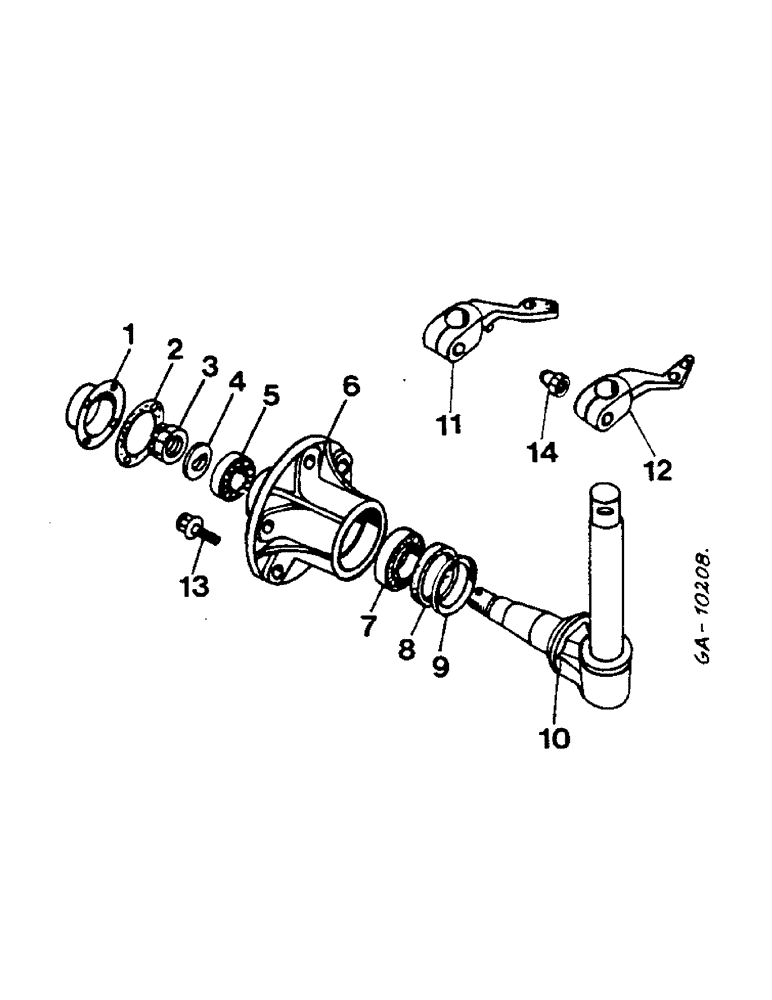

Запчасти Case IH 844S (14-13) - STEERING KNUCKLE, ONLY FOR 844S, ON UNITS WITH FRONT AXLE 3232212R91 Suspension

- ONLY FOR 844 S - - ON UNITS WITH FRONT AXLE 3 232 212 R91 -

1шт.

1

3232231R1

CAP

CAP

2шт.

930404R1

BOLT,Hex, M10 x 20mm, Cl 4.6

BOLT, M10 X 20 MM

8шт.

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

WASHER

8шт.

2

3232809R1

GASKET

GASKET

2шт.

3

3232281R1

THIN NUT,M33 x 1.5

2шт.

934697R1

COTTER PIN,M6.3 x 56

PIN, COTTER

2шт.

4

3232819R1

WASHER

WASHER, THRUST

2шт.

5

3232820R91

ROLLER BEARING,45 mm ID x 80 mm OD x 26 mm

BEARING, OUTER

2шт.

6

3232230R1

HUB

HUB

2шт.

7

3232808R91

ROLLER BEARING,60mm ID x 95mm OD x 23mm W

BEARING, INNER

2шт.

8

3232807R1

SEALING RING

SEAL

2шт.

9

3232806R1

RING

RING, CLAMPING

2шт.

10

3232225R1

STEERING KNUCKLE

KNUCKLE, STEERING, RH

1шт.

10

3232224R1

STEERING KNUCKLE

KNUCKLE, STEERING, LH

1шт.

11

3232229R1

ARM

ARM, TIE ROD, RH

1шт.

3232279R1

BOLT,Hex, M18 x 1.5 x 100mm, Cl 10.9

1шт.

934958R1

NUT

NUT, M18

1шт.

3232815R1

WASHER

WASHER

1шт.

12

3232228R1

ARM

ARM, TIE ROD, LH

1шт.

3232279R1

BOLT,Hex, M18 x 1.5 x 100mm, Cl 10.9

1шт.

934958R1

NUT

NUT, M18

1шт.

3232815R1

WASHER

WASHER

1шт.

13

3232818R1

STUD

SCREW, BALL FLANGE

12шт.

14

3232835R1

CAP

CAP

2шт.
