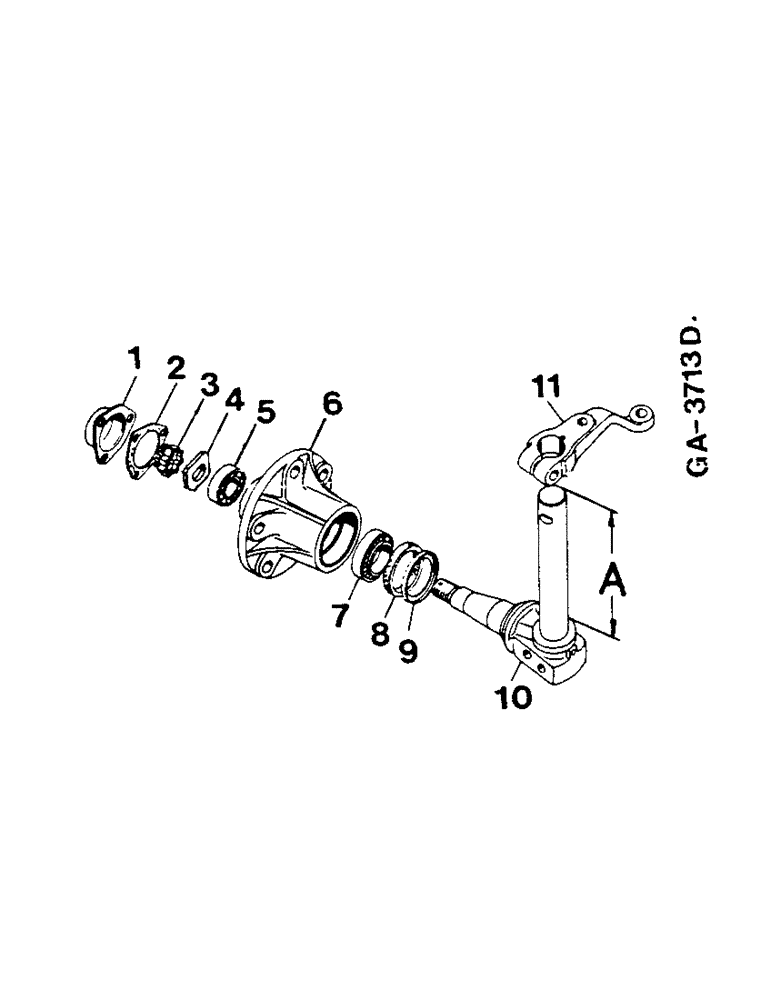

Запчасти Case IH 844S (14-10) - STEERING KNUCKLE Suspension

1

713238R1

CAP

2шт.

179812

GEAR

6шт.

103320

LOCK WASHER,5/16"

6шт.

2

49116D

GASKET,0.79mm Thk

2шт.

3

3059772R1

THRUST WASHER

CAP, LOCK

2шт.

425-1514

JAM NUT,Jam, 7/8"-14, G5

2шт.

108637

COTTER PIN,5/32" x 1 1/8"

2шт.

4

3057062R2

WASHER,22.73mm ID x 40mm OD x 4mm Thk

PLATE

2шт.

5

3229813R91

TAPERED BEARING

OUTER 62 X 31.75 X 18.16 MM - 844S -

2шт.

5

3142103R91

TAPERED BEARING

OUTER 59 X 31.75 X 15.87 MM - 743/745S -

2шт.

6

3131012R3

HUB

- 743/745S -

2шт.

6

3229812R1

HUB

- 844S -

2шт.

3137538R1

BOLT

M14 X 24 MM

10шт.

7

671074R91

CRANKSHAFT BEARING

INNER

2шт.

8

3131013R1

SEALING RING,69.5mm ID x 85mm OD x 7mm Thk

2шт.

9

3131014R1

RING,74mm ID x 85mm OD x 1mm Thk

CLAMPING STEERING, KNUCKLE, VERSION WITH POWER STEERING

2шт.

10

3230079R1

STEERING KNUCKLE

LH - FOR 18" AXLE - 249 MM -

1шт.

10

3230092R1

STEERING KNUCKLE

LH - FOR 20" AXLE - 299 MM -

1шт.

10

3230097R1

STEERING KNUCKLE

LH - FOR 24" AXLE - 379 MM -

1шт.

10

3230080R1

STEERING KNUCKLE

RH - FOR 18" AXLE - 249 MM -

1шт.

10

3230093R1

STEERING KNUCKLE

RH - FOR 20" AXLE - 299 MM -

1шт.

10

3230098R1

STEERING KNUCKLE

RH - FOR 24" AXLE - 379 MM - STEERING KNUCKLE, VERSION WITH MECH. STEERING

1шт.

10

3146322R95

STEERING KNUCKLE

LH - FOR 18" AXLE - 249 MM -

1шт.

10

3146320R95

STEERING KNUCKLE

LH - FOR 20" AXLE - 299 MM -

1шт.

10

3141509R93

STEERING KNUCKLE

LH - FOR 24" AXLE - 379 MM -

1шт.

10

3146323R95

STEERING KNUCKLE

RH - FOR 18" AXLE - 249 MM -

1шт.

10

3146321R95

STEERING KNUCKLE

RH - FOR 20" AXLE - 299 MM -

1шт.

10

3141510R93

STEERING KNUCKLE

RH - FOR 24" AXLE - 379 MM -

1шт.

11

ARM, TIE ROD - SEE STEERING KNUCKLE ONLY FOR 844S - ROD TIE, MECHANICAL STEERING - ROD TIE, POWER STEERING

1шт.
