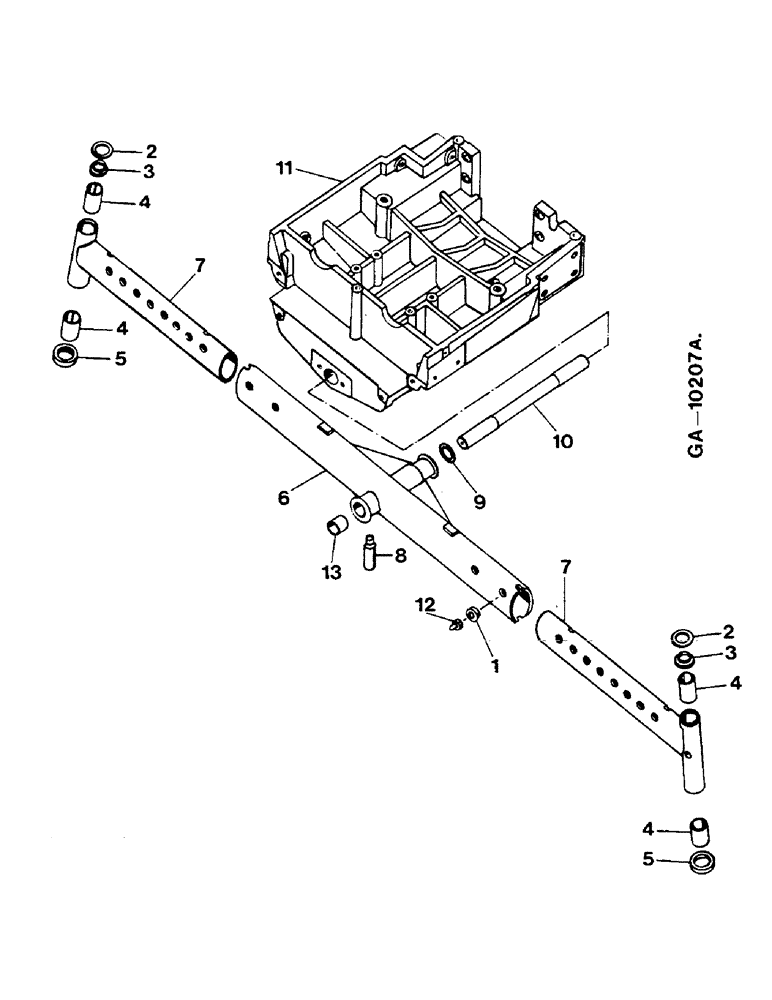

Запчасти Case IH 844S (14-08) - HEAVY DUTY FRONT AXLE, AXLE SUPPORT, ONLY FOR 844S Suspension

1

3232812R1

BUSHING

WASHER

4шт.

2

3232830R1

SHIM

0.2 MM

1шт.

2

3232831R1

SHIM

0.5 MM

1шт.

2

3232832R1

SHIM

1.0 MM

1шт.

2

3232833R1

SHIM

1.5 MM - AS REQUIRED

1шт.

3

3232813R1

SCRAPER

RING

2шт.

4

3232821R1

BUSHING,55mm ID x 62mm OD x 50mm L

4шт.

5

3233850R91

THRUST BEARING,55mm ID x 84mm OD x 22mm W

THRUST

2шт.

6

3232212R91

CENTER AXLE

1шт.

3232814R1

BOLT

M24 X 130 MM

4шт.

3232280R1

NUT,M24 x 1.5, Cl 8

4шт.

7

3232221R91

EXTENSION

WITH 3, 4

2шт.

933781R1

LUBE NIPPLE,M10 x 1

2шт.

8

3059875R6

SCREW,5/8" - 11 x 40mm

1шт.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

9

3232826R1

SHIM,48mm ID x 85mm OD x 0.2mm Thk

0.2 MM

1шт.

9

3232827R1

SHIM,0.5mm Thk

0.5 MM

1шт.

9

3232828R1

SHIM,1mm Thk

1.0 MM

1шт.

9

3232829R1

SHIM,48mm ID x 85mm OD x 1.5mm Thk

1.5 MM - AS REQUIRED

1шт.

10

3232823R1

AXLE PIN,48mm OD x 440mm L

PIVOT

1шт.

11

3229765R2

CARRIER

SUPPORT

1шт.

933781R1

LUBE NIPPLE,M10 x 1

2шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

8шт.

12

3232837R1

CAP

4шт.
