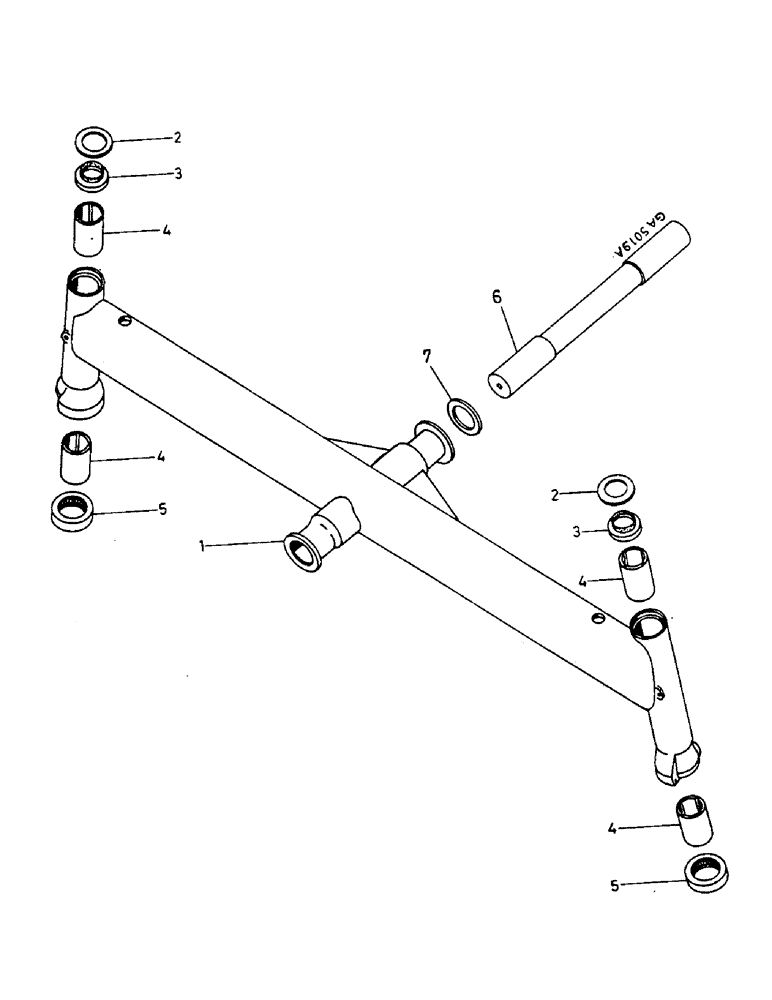

Запчасти Case IH 844S (14-02) - FRONT AXLE Suspension

1

3141500R92

AXLE

FRONT, - WITH 3, 4

1шт.

1

3230074R91

AXLE

FRONT - VERSION WITH POWER STEERING -

1шт.

739157R91

LUBE NIPPLE

LUBRICATOR

2шт.

2

3059771R1

SHIM

0.20 MM

1шт.

2

3217593R1

SHIM

1.00 MM

1шт.

2

3217594R1

SHIM,40mm ID x 60mm OD x 1.5mm Thk

1.50 MM - AS REQUIRED

1шт.

3

3131033R1

SEAL,39mm ID x 53mm OD x 8mm Thk

SCRAPER

2шт.

4

3057051R1

BUSHING

4шт.

5

3057058R91

BEARING ASSY

THRUST

2шт.

6

3140082R1

PIVOT

PIVOT, FRONT AXLE

1шт.

3059875R6

SCREW,5/8" - 11 x 40mm

5/8 X 40 MM

1шт.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

7

3057042R1

SHIM,40.05mm ID x 59.94mm OD x 0.55mm Thk

1шт.

7

3059771R1

SHIM

- OPTIONAL - AS REQUIRED

1шт.
