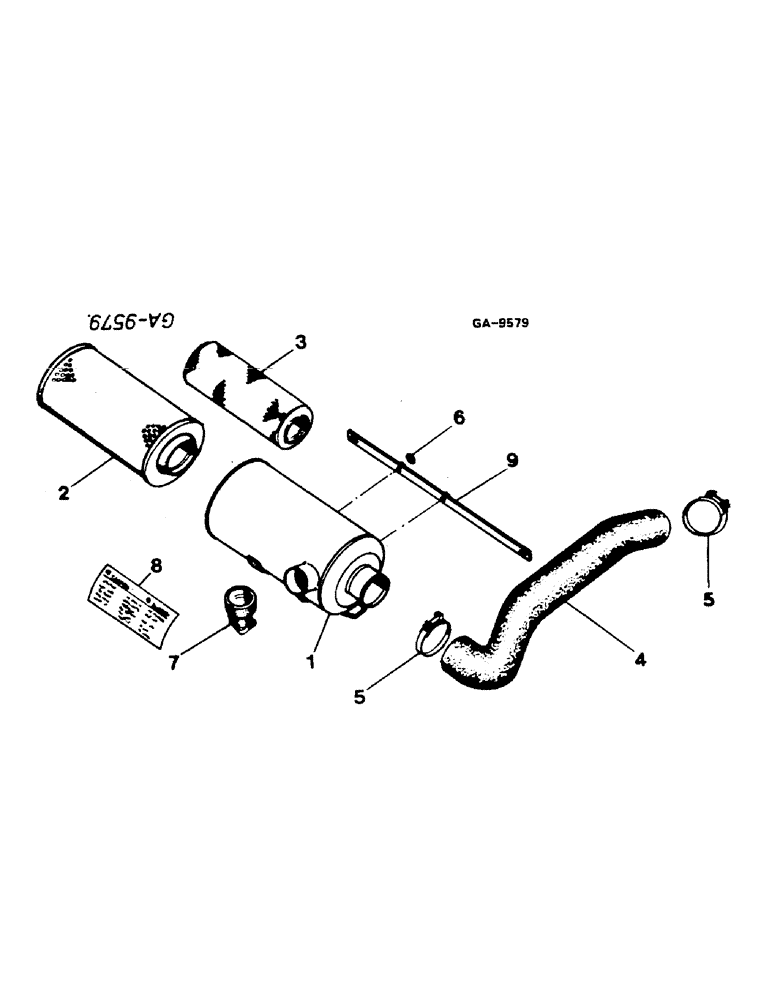

Запчасти Case IH 844S (12-06) - AIR CLEANER Power

1

3147007R91

AIR CLEANER

SINGLE STAGE - WITH ITEMS 2 AND 7 -

1шт.

1

3147912R91

AIR CLEANER

TWO STAGE - WITH ITEMS 2, 3 AND 7 -

1шт.

3401108R1

BOLT,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

931829R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

3401568R1

SPACER

ROLLER

4шт.

2

3146576R1

AIR FILTER

1шт.

3146575R1

NUT

1шт.

3

3147878R1

FILTER, ELEMENT

ELEMENT, FILTER SAFETY

1шт.

934302R1

THIN NUT,Thin, M16 x 1.5, Cl 05

1шт.

4

3145620R2

LARGE HOSE

HOSE,LARGE

1шт.

5

3219245R1

CLAMP,M70-90, Worm

2шт.

5

755021R92

CLAMP

OPTIONAL

2шт.

6

934058R1

WASHER,8.4mm ID x 15mm OD x 1.6mm Thk

8шт.

7

3147008R1

VALVE

DUST UNLOADER

1шт.

8

1091387R1

PRODUCT GRAPHIC

1шт.

9

3232068R2

SUPPORT

- 743/745S -

2шт.
