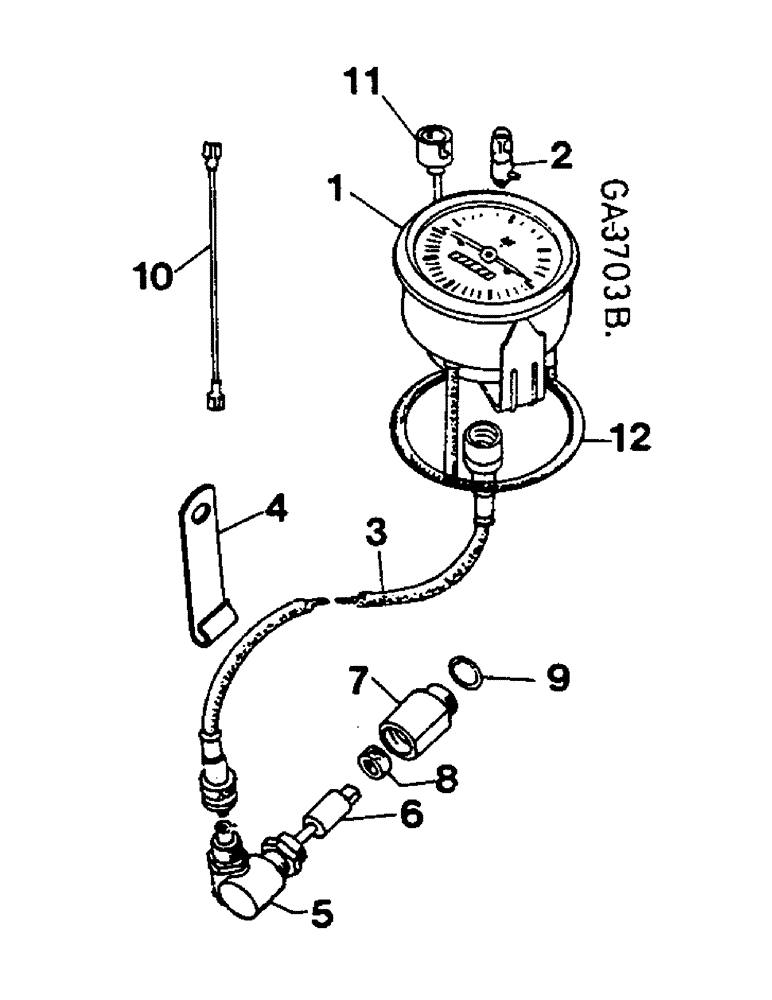

Запчасти Case IH 844S (11-7) - TRACTORMETER Instruments

1

3142174R91

TRACTORMETER

JAEGER 25 KM/H

1шт.

1

3142258R91

TRACTORMETER

VDO - 25 KM/H

1шт.

1

3142260R91

TRACTORMETER

VDO - 30 KM/H

1шт.

1

3142270R91

TRACTORMETER

VDO - 19 MPH

1шт.

2

3050957R1

BULB

LAMP, - VDO -

2шт.

2

711625R1

BULB,H, 12V, 2W

LAMP, - JAEGER - H12V/2W -

1шт.

2

3221006R1

BULB,W10/3, 12V, 3W

LAMP, - JAEGER - VA12V/3W -

1шт.

3

3058070R94

FLEXIBLE DRIVE SHAFT

- VDO - - 743/745S -

1шт.

3

3131889R92

FLEXIBLE DRIVE SHAFT

- VDO - - 844S -

1шт.

3

3058286R92

DRIVE

SHAFT, FLEXIBLE - JAEGER - 743/745S -

1шт.

3

3058287R93

FLEXIBLE DRIVE SHAFT

- JAEGER - - 844S -

1шт.

4

3141348R1

CLAMP

2шт.

5

3141349R1

ANGLE, DRIVE

1шт.

3132116R1

NUT

M18

1шт.

6

3056986R1

SUPPORT

COUPLING, - VDO -

1шт.

6

3059929R1

DRIVE DOG

COUPLING, - JAEGER -

1шт.

7

3059191R11

SPACER

WITH OIL SEAL

1шт.

8

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

1шт.

9

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

KING

1шт.

10

3058560R91

CABLE PULLING GRIP

VDO BULBS CONNECTING

1шт.

11

3131182R1

CONNECTOR,ELECTRIC

SOCKET, LAMP - VDO - - AS REQUIRED

1шт.

12

3230832R1

O-RING

GASKET, - VDO - 3 131 811 R1 - - AS REQUIRED

1шт.
