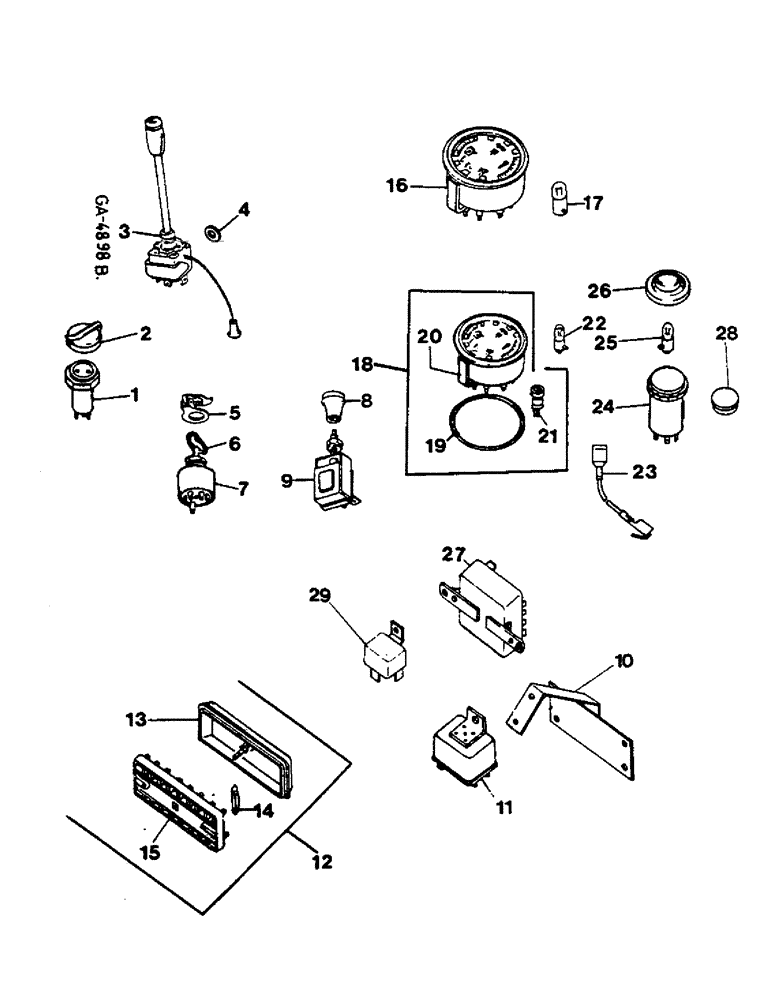

Запчасти Case IH 844S (11-4) - ELECTRICAL INSTRUMENTS Instruments

1

3142920R91

SOCKET/RECEPTACLE

PLUG - BOSCH -

1шт.

1

3142921R91

SOCKET/RECEPTACLE

PLUG - MERIT -

1шт.

2

3221243R1

COVER

FOR BOSCH

1шт.

2

3221245R1

COVER

FOR MERIT

1шт.

3

3141485R91

FLASHER SWITCH

INDICATOR, W/HORN PUSH BUTTON

1шт.

931606R1

SCREW,Pan Slotted, M4 x 8mm, Cl 4.8

2шт.

4

446130

WASHER,#8

2шт.

5

3057511R91

COVER

1шт.

6

3136851R1

KEY, IGNITION

SWITCH

1шт.

7

3136852R1

LIGHT SWITCH

IGNITION-LIGHT

1шт.

8

3056308R1

PUSH BUTTON

KNOB, STARTING SWITCH - BOSCH -

1шт.

8

3221357R1

BUTTON

KNOB, STARTING SWITCH - BOSCH - FOR/POUR/FUER FINLAND -

1шт.

8

3147177R1

BUTTON

KNOB, STARTING SWITCH - GABRIEL -

1шт.

9

3057998R93

IGNITION SWITCH

STARTING - BOSCH -

1шт.

9

3147176R1

SWITCH

STARTING - GABRIEL -

1шт.

10

3146244R91

SUPPORT

BRACKET, RELAY

1шт.

22704R1

SCREW

BOLT, 1/4 X 10 MM

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

11

3057558R92

RELAY

1шт.

12

3141117R93

BOX, FUSE

WITH FUSES AND COVER

1шт.

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

1шт.

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

1шт.

120217

LOCK WASHER,#10

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

934044R1

WASHER,M5.3 ID x 10 OD x 1 Thk

2шт.

13

3057514R92

COVER

WITH SCREW

1шт.

14

3021478R1

FUSE,A8, White

8A

5шт.

14

926644C1

FUSE,A16, Red

16A

3шт.

15

3136616R1

BASE

BOX, FUSE

1шт.

16

3141553R91

CLUSTER

INSTRUMENT - JAEGER

1шт.

3223497R1

SOCKET/RECEPTACLE

1-POLE

1шт.

3223498R1

SOCKET/RECEPTACLE

2-POLES

1шт.

17

711625R1

BULB,H, 12V, 2W

LAMP, 12V/2W

1шт.

17

3221006R1

BULB,W10/3, 12V, 3W

LAMP, 12V/3W - AS REQUIRED

1шт.

18

3140059R92

CLUSTER, INSTR.

CLUSTER, INSTRUMENT W/BRACKET & O-RING - VDO -

1шт.

3131814R1

NUT

KNURLED

2шт.

19

3230832R1

O-RING

- VDO -

1шт.

20

3131813R1

BRACKET

ANGLE - VDO -

1шт.

21

3131182R1

CONNECTOR,ELECTRIC

SOCKET, LAMP - VDO -

1шт.

22

3050957R1

BULB

LAMP, 12V/2W - AS REQUIRED

1шт.

23

3058560R92

CABLE

SCALE LIGHTS CONNECTING - VDO -

1шт.

24

3141103R91

SWITCH

FLASHER WARNING - BOSCH -

1шт.

24

3141217R91

LIGHT SWITCH

FLASHER WARNING - KIRSTEN -

1шт.

25

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

26

3141106R1

CAP

1шт.

27

3141102R92

FLASHER UNIT

- BOSCH -

1шт.

27

3148470R1

FLASHER UNIT

- WEHRIE -

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

2шт.

22704R1

SCREW

BOLT, 1/4 X 10 MM

1шт.

492-11025

LOCK WASHER,1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

28

3216102R1

PLUG

1шт.

29

3146359R1

RELAY

START SAFETY SWITCH

1шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

1шт.

120217

LOCK WASHER,#10

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.
