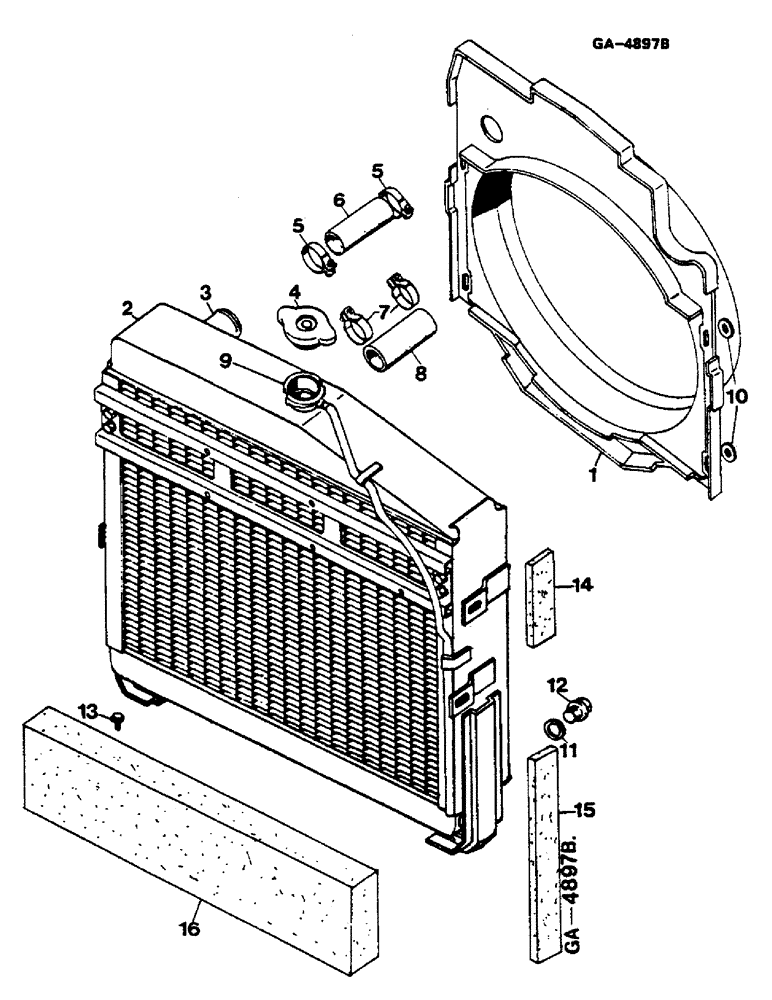

Запчасти Case IH 844S (06-2) - RADIATOR Cooling

1

3145811R1

HOUSING

FAN

1шт.

2

3145498R93

RADIATOR

- WINDHOFF - - 743/745S -

1шт.

2

3147851R93

RADIATOR

- CHAUSSON - - 743/745S -

1шт.

2

3216849R92

RADIATOR

- WINDHOFF - - 844S -

1шт.

2

3147852R94

RADIATOR

- CHAUSSON - - 844S -

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

931829R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

934058R1

WASHER,8.4mm ID x 15mm OD x 1.6mm Thk

- AS REQUIRED

1шт.

3

3058718R1

PIPE

INLET

1шт.

4

3134146R1

PLUG

CAP, PRESSURE, COOLING

1шт.

4

787151R91

CAP

PRESSURE, COOLING - OPTIONAL

1шт.

5

3220458R1

CLAMP,M25-50, Worm

2шт.

5

755021R92

CLAMP

OPTIONAL

2шт.

6

3134507R1

HOSE,32.00 mm ID, 40.00 mm ID x 205.00 mm

Inlet

1шт.

7

3144921R1

CLAMP,M50-70, Worm

2шт.

7

755021R92

CLAMP

OPTIONAL

2шт.

8

3057428R1

HOSE,110.00 mm

Outlet

1шт.

9

3134812R1

NECK FILLER

- WINDHOFF -

1шт.

9

3134813R1

NECK FILLER

- CHAUSSON -

1шт.

10

934301R1

WASHER,M6.6

4шт.

11

712017R1

SEALING RING

1шт.

12

715552R1

PLUG

1шт.

13

3142388R1

BOLT

BOLT, WITH WASHER

1шт.

14

3147181R1

STRIP

FILLING, PLASTIC

2шт.

15

3147182R1

SEALING STRIP

FILLING, PLASTIC

2шт.

16

3147180R1

LINING

STRIP, FILLING PLASTIC

1шт.
