(02-16) - TOOLBOX, TOOLS

Запчасти Case IH 844S (02-16) - TOOLBOX, TOOLS Accessories & Attachments / Miscellaneous

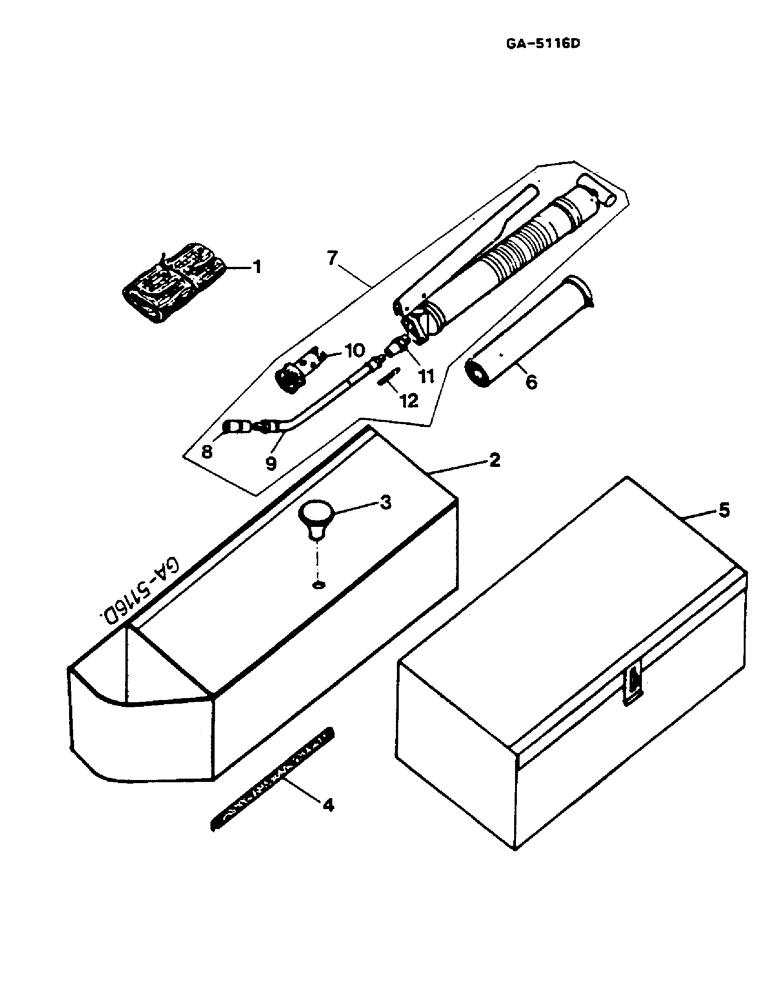

Схема запчастей Case IH 844S - (02-16) - TOOLBOX, TOOLS Accessories & Attachments / Miscellaneous
3
10
8
5
9
2
1
6
7
11
4
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3147369R91

BAG-TOOL

BAG W/TOOL KIT WITH WRENCH, SOCKET 15/16 X 3/4 HANDLE, WRENCH HAMMER, 500 G PLIERS, UNIVERSAL SCREWDRIVER WRENCH, OPEN END 8/9MM, 14/15MM, 20/22MM 10/11MM, 16/17MM, 24/26MM 12/13MM, 18/19MM, 27/32MM -

1шт.

1

4316274R1

TOOL ASSY.

BAG

1шт.

WITH HAMMER, 500G PLIERS, UNIVERSAL PLIERS, COMBINATION SCREWDRIVER 5.5 MM, 8 MM SCREWDRIVER, CROSS RECESS NR.3 SPANNER, CROSS 24/27/30/32 MM WRENCH, OPEN END 6/7MM, 8/9MM, 14/15MM, 20/22MM 10/11MM, 16/17MM, 24/27MM 12/13MM, 18/19MM, 30/32MM - WRENCH, SPECIAL 6/7MM, 8/9MM, 14/15MM, 20/22MM 10/11MM, 16/17MM, 24/27MM 12/13MM, 18/19MM, 30/32MM

1шт.

2

3223447R91

BOX

TOOL - ON TRACTOR WITH CAB -

1шт.

931111R1

SCREW,M5 x 0.8 x 12mm, Cl 4.8

BOLT, M5 X 12 MM

1шт.

934876R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

97865H

WASHER

2шт.

3

3056308R1

PUSH BUTTON

1шт.

4

3223857R1

STRAP

PROTECTION 325MM

1шт.

4

3223454R1

STRAP, PROTECTION 780 MM

1шт.

5

3147911R1

BOX, TOOL

1шт.

179880

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

2шт.

495-11053

WASHER,1/2", SAE

2шт.

6

3050944R91

LUBRICANT

CONTAINER

1шт.

7

3050943R91

GUN, GREASE

GREASE GUN LUBRICATOR

1шт.

8

3051242R91

NOZZLE CAP

1шт.

9

3053667R1

TUBE

LUBRICATION 255MM

1шт.

9

3053666R1

PIPE

BENT 89MM

1шт.

9

3051386R91

HOSE

Lubrication

1шт.

10

3053668R91

PISTON

LUBRICATION

1шт.

3056700R1

SPARE PART SLOTTED

1шт.

11

3056634R1

VALVE POPPET

1шт.

12

3056633R91

SPRING, VALVE

1шт.

3076573R92

JACK

HYDRAULIC 5 TON

1шт.

3078830R1

JACK

HYDRAULIC 12 TON

1шт.

3134870R1

WARNING SIGN

SIGNAL TRAFFIC

1шт.

3134961R1

LIGHT, WARNING

1шт.

3131432R2

CHARGER

TRANSFORMER, BATTERY 10 AMP. - AS REQUIRED, NOT ILLUSTRATED

1шт.

4717

KIT, FIRST AID

EMERGENCY - AS REQUIRED, NOT ILLUSTRATED

1шт.

PD2GS

EXTINGUISHER, FIRE COMPLETE 2 KG EXTINGUISHING POWDER - AS REQUIRED, NOT ILLUSTRATED

1шт.

PD1G

EXTINGUISHER, FIRE COMPLETE - 1 KG EXTINGUISHING POWDER - - AS REQUIRED, NOT ILLUSTRATED

1шт.

PD6GM

FIRE EXTINGUISHER

COMPLETE - 6 KG EXTINGUISHING POWDER - - AS REQUIRED, NOT ILLUSTRATED

1шт.

3078831R1

STAND

REPAIR 1.5 TON - AS REQUIRED, NOT ILLUSTRATED

1шт.

3078832R1

STAND

REPAIR 3.0 TON - AS REQUIRED, NOT ILLUSTRATED

1шт.
