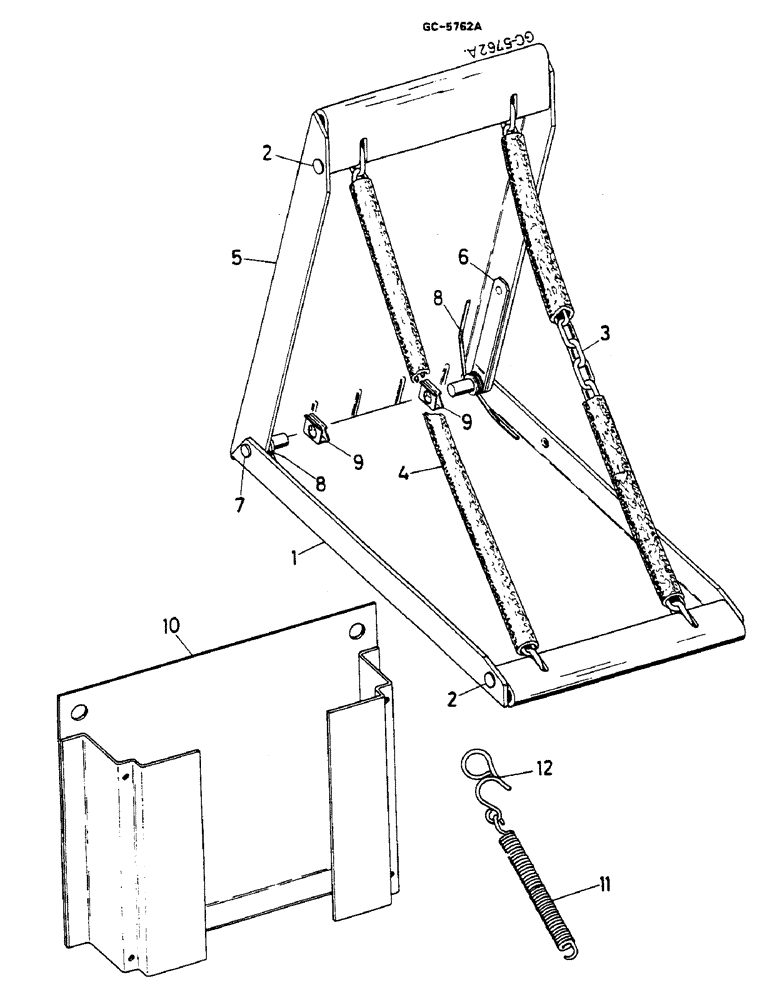

Запчасти Case IH 844S (02-14) - WEDGE Accessories & Attachments / Miscellaneous

3216764R91

WEDGE

CONSISTS OF ITEMS 1-9 -

1шт.

1

WEDGE, LOWER PART, - NOT AVAILABLE SEPARATELY, ORDER 3216764R91 -

1шт.

2

3216771R1

PIN

2шт.

3

3216772R1

CHAIN (AG)

2шт.

4

3216773R1

HOSE

PROTECTION

2шт.

5

WEDGE, UPPER PART, - NOT AVAILABLE SEPARATELY, ORDER 3216764R91 -

1шт.

6

3216768R91

SPRING LOCK

ANCHOR

1шт.

7

934656R1

DOWEL,M10 x 32

2шт.

8

3216767R2

SPRING

2шт.

9

3225547R1

LOCK

PIN

2шт.

10

3216775R91

SUPPORT

HOLDER

1шт.

934870R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

ON TRACTOR WITH CAB

2шт.

43362

NUT,M8 x 1.25, Cl 10

On Tractor with Cab -

2шт.

931369R1

BOLT,Hex, M10 x 1.5 x 28mm, Cl 10.9, Full Thd

2шт.

100016

NUT,M10 x 1.5, Cl 8

2шт.

934675R1

WASHER,M8 x 16 x 1.6

ON TRACTOR WITH CAB

2шт.

3216778R91

SPRING

WITH CLIP - CONSISTS OF ITEMS 11 AND 12 -

1шт.

11

711358R1

SPRING

1шт.

12

739263R1

CLIP,ELECTRICAL

1шт.
