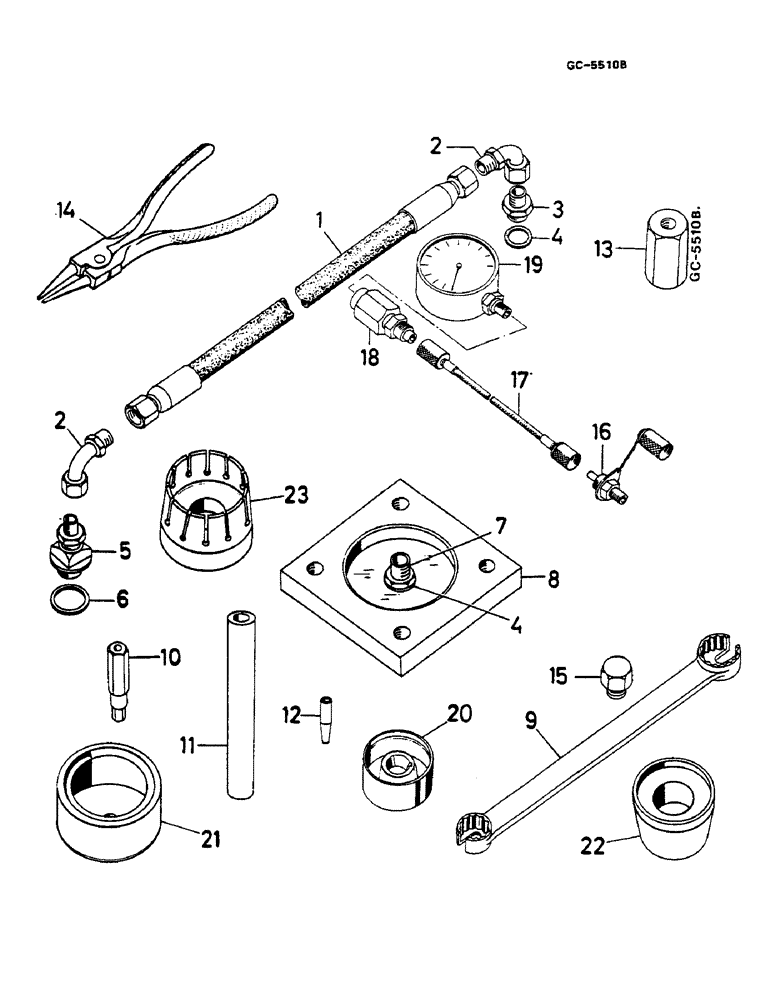

Запчасти Case IH 844S (02-07) - SERVICE TOOLS FOR HYDRAULIC SYSTEM Accessories & Attachments / Miscellaneous

3148817R91

TOOL KIT

SERVICE SET - CONSISTS OF ITEMS 1-15 -

1шт.

3058933R91

REGULATOR

TOOL, - CONSISTS OF ITEMS 1-6 -

1шт.

1

713436R91

HOSE

PRESSURE

1шт.

2

715747R91

FITTING

ELBOW, 90 DEG.

2шт.

3

717329R1

UNION

SPARE PART ADAPTER M18

1шт.

4

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

2шт.

5

UNION, REGULATOR

1шт.

6

933609R1

RING

26 X 31 MM

1шт.

7

716335R1

UNION

ADAPTER M16 X M18

1шт.

8

3058934R11

FLANGE

TEST, CYLINDER HEAD - WITH 4,7,8 -

1шт.

8

3058934R1

FLANGE, TEST

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

9

3131882R1

SPECIAL WRENCH

24 X 27 MM

1шт.

9

3148252R1

SPECIAL WRENCH

17 X 19 MM

1шт.

10

3058941R1

TOOL

ADJUSTING, SAFETY VALVE

1шт.

11

3148818R1

TOOL

INSTALLING FOR SEAL - 3145168R91 -

1шт.

12

3148819R1

TOOL

INSTALLING FOR SEAL - 3145168R91 -

1шт.

13

3058950R1

UNION

CONNECTOR, SAFETY VALVE TO TEST PUMP -

1шт.

14

3058942R91

PLIERS

CIRCLIP

1шт.

15

3053532R1

UNION

PRESSURE GAUGE CONNECTION M20

1шт.

3139828R91

TOOL KIT

SERVICE SET, FOR HYDRAULIC - CONSISTS OF ITEMS 16-19 -

1шт.

16

3139135R1

COUPLING, BREAK AWAY

1/8

5шт.

16

3139829R1

COUPLING, BREAK AWAY

1/4

2шт.

17

3139136R1

HOSE,600.00 mm

Pressure

3шт.

17

3139830R1

HOSE

Pressure, 1500 mm length

3шт.

18

3139137R1

UNION

CONNECTOR

3шт.

19

3139140R2

HEAD

GAUGE, - 1 - + 1.5 KP/CM2

1шт.

19

3139141R2

GAUGE

1 - + 15 KP/CM2

1шт.

19

3139142R2

GAUGE

0 - + 25 KP/CM2

1шт.

19

3139143R2

ELECTRICAL GAUGE

0 - + 250 KP/CM2

3шт.

20

3217500R1

TOOL

SPARE PART PUMP ALIGNMENT

1шт.

21

NOT-USED

1шт.

22

NOT-USED

1шт.

23

NOT-USED

1шт.
