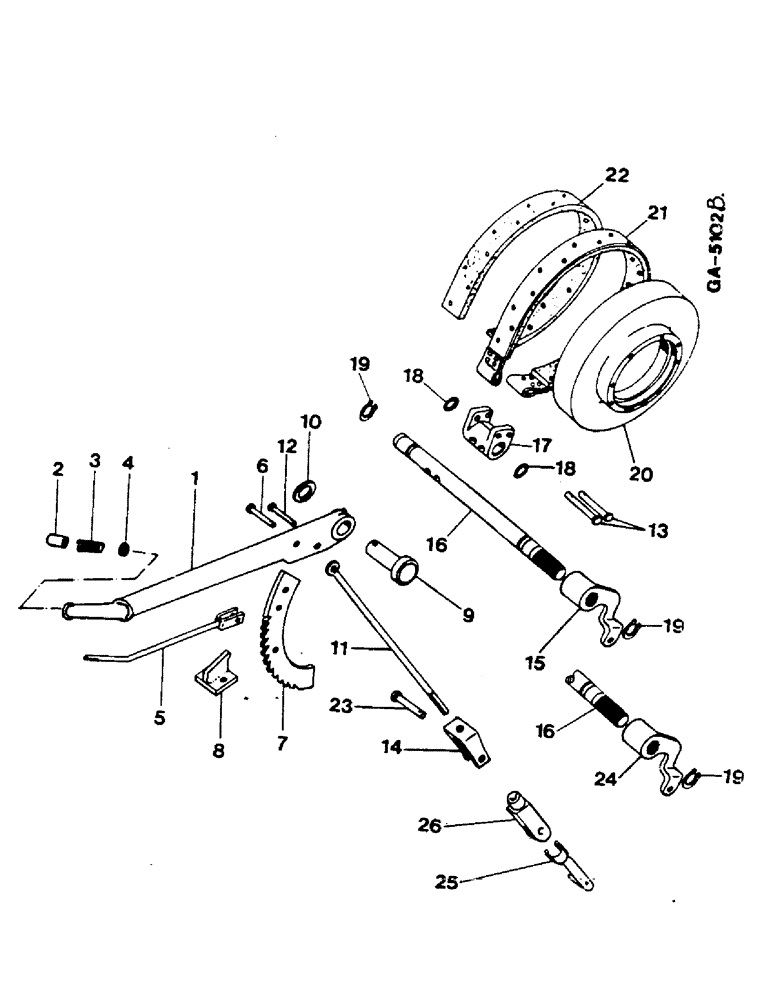

Запчасти Case IH 844S (04-10) - HAND BRAKE (5.1) - BRAKES

1

3145513R1

LEVER

HAND BRAKE

1шт.

1

3145510R92

LEVER

HAND BRAKE - WITH 1-7, 11, 12

1шт.

1

3223123R92

LEVER, HAND BRAKE - WITH 1-7, 11, 12 - ON TRACTOR WITH CAB - FRITZMEIER

1шт.

1

3226262R92

LEVER

HAND BRAKE - WITH 1-7, 11, 12 - ON TRACTOR WITH CAB - TIMMERMAN

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

On tractors w/cab, Fritzmeier/Timmerman -

1шт.

2

3145841R1

BUTTON

HAND BRAKE

1шт.

3

713170R1

SPRING

COMPRESSION

1шт.

4

120392

WASHER,1/4", SAE

1шт.

5

3145967R1

ROD

RATCHET CONTROL

1шт.

932296R1

LOCK PIN,M5 x 12, Slotted

1шт.

6

932854R1

HEADED PIN,M8 x 40

HEADED

1шт.

934788R1

COTTER PIN,M2 x 16

2 X 16 MM

1шт.

7

3145969R2

RATCHET

1шт.

932742

PIN, ROLL 5 X 26 MM

1шт.

8

3145971R1

PAWL

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

102637

NUT,1/2"-13, G5

As Required

1шт.

9

20243R1

CLEVIS PIN,3/4" x 2.672"

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

1шт.

10

933998R1

WASHER,M20 x 30 x 4

1шт.

11

3145511R1

ROD

HAND BRAKE

1шт.

11

3224124R1

SEAL

ROD, HAND BRAKE - ON TRACTORS WITH CAB, FRITZMEIER -

1шт.

102635

NUT,3/8"-16, G5

1шт.

105606

NUT

3/8

1шт.

12

46883H

CLEVIS PIN,3/8" x 1 9/16"

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

13

717584R3

HEADED PIN

HEADED

2шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

14

3058293R1

CLEVIS

1шт.

15

3145974R1

LEVER

HAND BRAKE

1шт.

16

3145505R2

SHAFT

HAND BRAKE

1шт.

17

3057406R2

LEVER

GAG

1шт.

Q2935

LOCK PIN,M8 x 45, Slotted

2шт.

932238R1

LOCK PIN,M5 x 45, Slotted

2шт.

18

3058327R1

O-RING,3.5mm Thk x 24mm ID, 75 Duro

2шт.

19

933086R1

SNAP RING,M30, Ext

2шт.

20

3059186R3

DRUM

BRAKE

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

8шт.

21

3057407R21

BAND

BRAKE WITH LINING

1шт.

104083

RIVET,But Hd, 1/4" x 3/4"

1/4 X 14 MM

8шт.

717593R1

RIVET,Flat Hd, M5 x 8

5/8 X 8 MM

19шт.

22

3057408R1

LINING

BRAKE

1шт.

23

103496

CLEVIS PIN,3/8" x 1.060"

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

24

3226265R2

LEVER

HAND BRAKE - ON TRACTORS WITH CAB, TIMMERMAN -

1шт.

25

3229905R1

PIN

LOCK - ON TRACTORS WITH CAB, TIMMERMAN -

1шт.

26

3229904R1

FORK

CLEVIS, ADJUSTING - ON TRACTORS WITH CAB, TIMMERMAN -

1шт.

933969R1

NUT,M14 x 1.5, Cl 6

M14

1шт.
