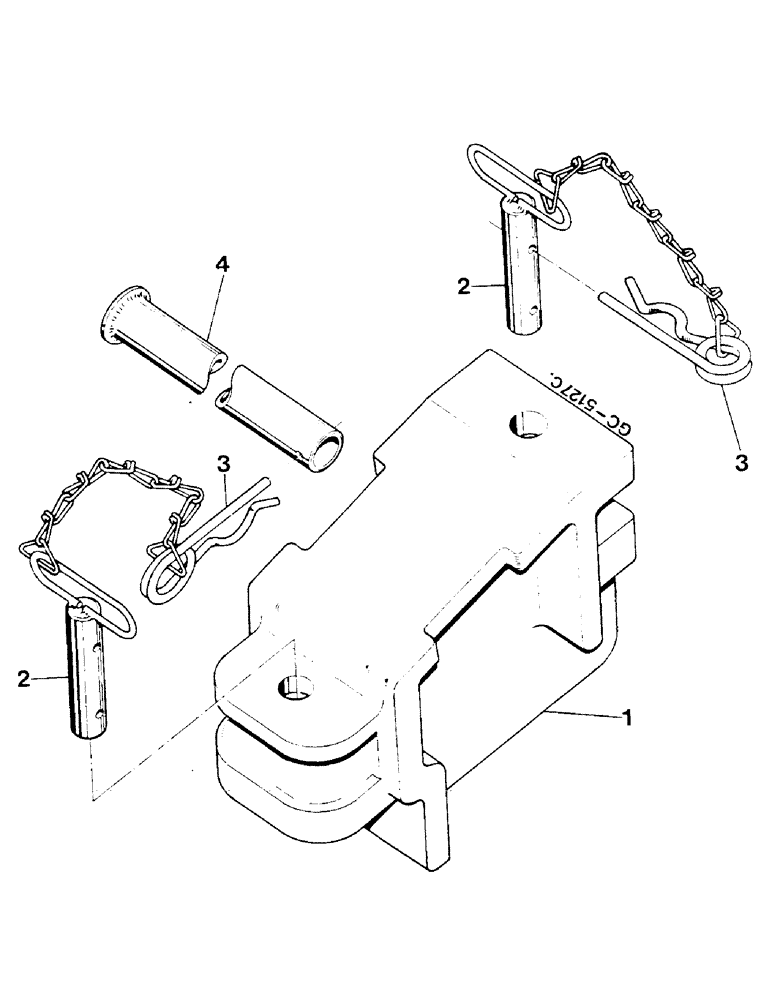

Запчасти Case IH 844S (09-28) - WEIGHTS (12) - FRAME

21606R1

BOLT, 5/8 X 254 MM, FOR REAR WHEELS

1шт.

21283R1

BOLT,5/8" x 8", Gr 1

5/8 X 203 MM, FOR REAR WHEELS

1шт.

20874R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 6 1/2", Gr 2

FOR REAR WHEELS

1шт.

22013R1

BOLT

5/8 X 133 MM, FOR REAR WHEELS

1шт.

20626R1

BOLT

5/8 X 120 MM, FOR REAR WHEELS

1шт.

21776R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/4", Gr 2

FOR REAR WHEELS

1шт.

18723R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 2

FOR REAR WHEELS

1шт.

492-11062

BEARING WASHER,5/8"

For rear wheels

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

AS REQUIRED, FOR REAR WHEELS

1шт.

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8 X 114 MM, FRONT, Course Threads

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8 X 57 MM, FRONT

1шт.

NLS

NO LONGER SERVICED

FRONT

1шт.

464623R1

WASHER

FRONT

1шт.

3141928R1

STRAP

BAR, 140 X 125 X 10 MM - AS REQUIRED, FRONT

1шт.

1

3147824R1

WEIGHT

FRONT, WITH DRAW CLEVIS

1шт.

2

3147825R92

PIN,32mm OD x 508.85mm L

WITH CHAIN AND SPRING CLIP, FRONT

1шт.

3

766382R1

CLIP, SPRING

AS REQUIRED, FRONT

1шт.

4

3147462R91

PIPE

FRONT

1шт.
