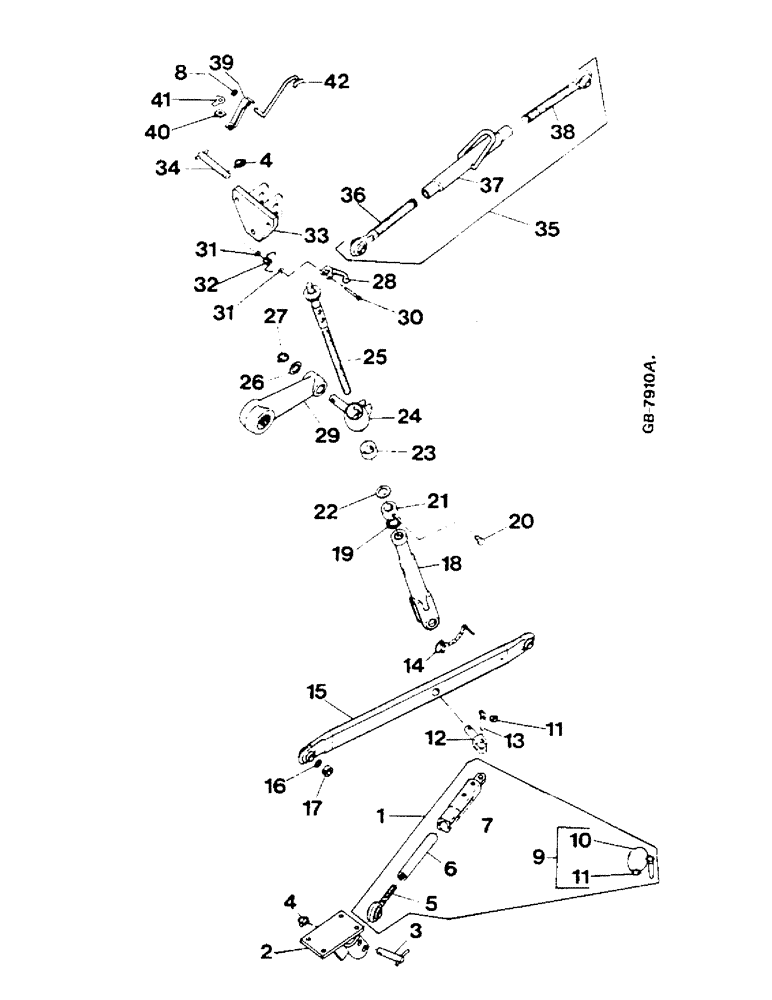

Запчасти Case IH 844S (09-20) - THREE-POINT LINKAGE (12) - FRAME

1

3146371R94

STABILIZER

LINK, CHECK

2шт.

2

3147000R91

BRACKET

LH

1шт.

2

3147001R91

BRACKET

RH

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

6шт.

103325

LOCK WASHER,5/8"

6шт.

3

3140011R21

CROSS PIN,19mm OD x 120mm L

2шт.

4

3057346R11

LINCH PIN

AS REQUIRED

1шт.

5

3146372R92

END,1" - 8

ROD, ADJUSTING

2шт.

6

3140714R2

ROD

ROD, EXTENSION

2шт.

7

3140713R2

HOUSING

2шт.

932724R1

LOCK PIN,M7 x 45, Slotted

1шт.

932759R1

LOCK PIN,M12 x 45, Slotted

1шт.

8

934065R1

WASHER,M10.5

1шт.

9

3140715R91

SPLIT PIN/SAFETY PIN,12.7mm OD x 180mm L

CROSS, WITH ROPE AND LINCH PIN

2шт.

10

3141344R1

ROPE

2шт.

11

3057333R91

LINCH PIN,5mm OD

4шт.

12

3140005R1

CLEVIS PIN

YOKE

2шт.

13

3226000R1

PIN,16mm OD x 60mm L

CROSS

2шт.

14

3057364R94

PIN

LINCH, WITH CHAIN

2шт.

15

3145163R92

LOWER LINK

2шт.

3229627R91

END

WELDED - AS REQUIRED

1шт.

16

3216984R1

WASHER

AS REQUIRED

1шт.

17

3145161R1

SPACER,25.1mm ID x 40mm OD x 16mm L

2шт.

932234R1

LOCK PIN,M6 x 40, Slotted

2шт.

932303R1

LOCK PIN,M10 x 40, Slotted

2шт.

3148914R91

PACKAGE

ROD, LIFTING - CONSISTS OF ITEMS 18-28 -

2шт.

18

3140003R1

NO LONGER SERVICED

FORK, FOR LEVELLING SPINDLE

2шт.

3229744R1

LUBE NIPPLE

LUBRICATOR

2шт.

19

28722K

WASHER

FELT

2шт.

20

3140006R1

BOLT

SET

2шт.

21

3140008R1

RING

SET

2шт.

22

3140010R1

WASHER,29mm ID x 56mm OD x 1mm Thk

AS REQUIRED

1шт.

23

3140009R2

SPACER

2шт.

24

3140706R2

PIVOT

LH

1шт.

24

3140707R2

PIVOT

RH

1шт.

714100R91

NIPPLE, LUBE

NIPPLE

2шт.

25

3141992R91

ROD

SPINDLE, LEVELLING, LH

1шт.

25

3140000R1

LIFTING ROD

SPINDLE, LEVELLING, RH

1шт.

Q5343

LOCK PIN,M5 x 30, Slotted

1шт.

932742R1

LOCK PIN,M5 x 26, Slotted

1шт.

26

Q3485

WASHER

2шт.

27

3053363R91

LINCH PIN,32mm OD

LINCH - AS REQUIRED

1шт.

28

523861R2

HANDLE

LEVELLING

1шт.

29

ARM, ROCKER, - SEE POWER CYLINDER, ROCKSHAFT ASSY, -

2шт.

30

934995R1

HEADED PIN,M8 x 60

HEADED - FOR TRACTORS WITH CAB -

2шт.

932766R1

COTTER PIN,M2 x 12

2 X 12 MM

2шт.

31

934028R1

WASHER

- AS REQUIRED - - ON TRACTORS WITH CAB -

1шт.

32

3223430R1

SPRING

- ON UNITS WITH CAB -

2шт.

33

3145297R91

HOLDER

BRACKET, UPPER LINK

1шт.

25693R1

BOLT,Hex, 7/8" - 9 x 2", Gr 8

2шт.

24886R1

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 8

1шт.

103327

LOCK WASHER,7/8"

2шт.

103326

LOCK WASHER,3/4"

1шт.

34

3140013R21

PIN

CROSS

1шт.

35

3141807R92

UPPER LINK

1шт.

36

3147359R91

END

UPPER LINK, RH THREAD

1шт.

218447

NUT

1-1/4

1шт.

37

3141808R91

TURNBUCKLE

1шт.

38

3147361R91

END

UPPER LINK LH THREAD EXTREMITE

1шт.

39

3223244R91

CLAMP

UPPER LINK

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

1шт.

40

3223895R1

ANGLE

1шт.

41

933597R1

WASHER,Tab, M10.5

SHEET, LOCKING

1шт.

42

3058490R2

CLAMP

UPPER LINK

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.
