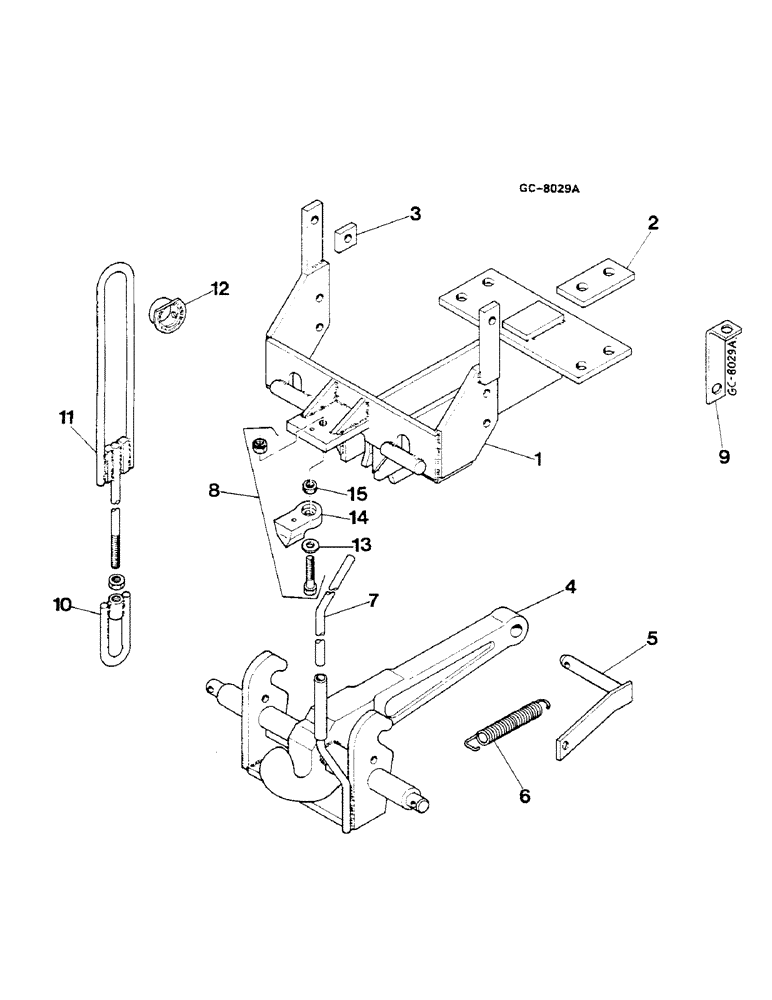

Запчасти Case IH 844S (09-18) - DRAW HOOK WITH LATCH LEVER, FRENCH VERSION (12) - FRAME

3221488R92

HOOK

DRAW - CONSISTS OF ITEMS 1-12 -

1шт.

1

3221489R2

FUNNEL

FRAME DRAW

1шт.

2

3221490R2

BAR

PLATE

2шт.

3

3221491R2

BAR

2шт.

24887R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8

4шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

4шт.

24876R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

4шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

6шт.

4

3221493R2

HOOK

DRAW

1шт.

119198

COTTER PIN,3/8" x 2 1/2"

2шт.

5

3221494R2

AXLE PIN

1шт.

934868R1

COTTER PIN,M6.3 x 50

COTTER 6 X 50 MM

1шт.

6

3221495R2

SPRING

1шт.

7

3221496R2

ROD

LEVER

1шт.

932470R1

LOCK PIN,M6 x 20, Slotted

1шт.

8

3221475R91

LOCK ASSY

1шт.

932671R1

LOCK PIN,M6 x 30, Slotted

1шт.

9

3221487R2

SUPPORT ASSY.

ANGLE

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

1шт.

193323

WASHER, 1/2

1шт.

103325

LOCK WASHER,5/8"

1шт.

102637

NUT,1/2"-13, G5

1шт.

10

3221484R1

ROD

2шт.

11

3225026R1

ROD

LIFTING

2шт.

934026R1

NUT,M16 x 2, Cl 5

2шт.

12

3221486R2

BUSHING

2шт.

Q5348

LOCK PIN,10mm OD x 45mm L, Slotted

2шт.

13

934284R1

WASHER

WASHER

1шт.

14

3229637R1

LATCH ASSY.

1шт.

280264

BOLT,Hex, M14 x 50mm, Cl 8.8

1шт.

905238R1

THIN NUT,M14 x 2, Thin

1шт.

15

3229638R1

SPACER

PAD, - VULKOLLAN -

1шт.
