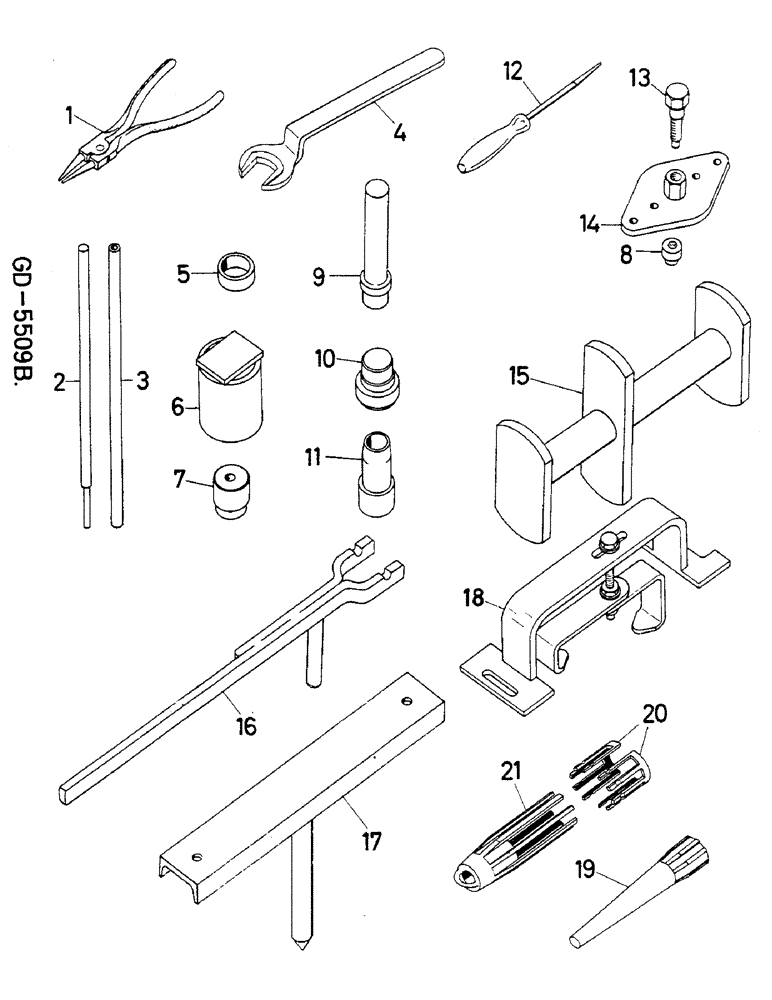

Запчасти Case IH 844S (02-02) - SERVICE TOOLS FOR TRANSMISSION Accessories & Attachments / Miscellaneous

3148776R91

TOOL ASSY.

SERVICE SET FOR TRANSMISSION - CONSISTS OF ITEMS 1-18 -

1шт.

1

3059110R91

PLIERS

TOOL, CIRCLIP - O/SIDE STRAIGHT

1шт.

1

3059109R91

PLIERS

TOOL, CIRCLIP 17- 18 DIA 90 DEG

1шт.

1

3059111R91

PLIERS

TOOL, CIRCLIP 40-100 DIA 90 DEG.

1шт.

1

3059112R91

PLIERS

TOOL, - INSIDE -

1шт.

2

3058986R1

TOOL

REMOVING, ROLL PIN - BRAKE BAND -

1шт.

3

3058999R1

TOOL

INSTALLING, ROLL PIN - BRAKE BAND -

1шт.

4

3137246R91

ADJUSTING WRENCH

SET, SPECIAL SPINE SHAFT

1шт.

5

3058996R1

TOOL

RING, SPACER, FOR COUNTERSHAFT - 3057073R2, 3147633R3, 3147634R3 -

1шт.

6

3058997R11

TOOL

INSTALLING, FOR TAPER ROLLER BRG 3057277R94 -

1шт.

7

3058994R1

PUNCH

TOOL, DRIFT, REMOVAL FOR NEEDLE BEARING - 3057319R91 -

1шт.

8

3058970R1

TOOL, PIECE, PRESSURE

1шт.

9

3058984R2

TOOL

INSTALLING FOR NEEDLE BEARING

1шт.

9

3057316R91

CAGE

1шт.

9

3058982R1

TOOL

INSTALLING FOR NEEDLE BEARING - 3057320R91 OR 3142027R91 -

1шт.

9

3148815R1

TOOL

INSTALLING FOR NEEDLE BEARING 3142025R91 -

1шт.

9

3058990R1

TOOL

REMOVING FOR NEEDLE BEARING - 3057320R91 OR 3142027R91 -

1шт.

9

3058991R1

TOOL

REMOVING FOR NEEDLE BEARING 3057316R91

1шт.

9

3148816R1

TOOL

REMOVING FOR NEEDLE BEARING 3142025R91 -

1шт.

9

3058975R1

TOOL

FOR BALL BEARING 3131904R91 -

1шт.

9

3058976R1

TOOL

FOR BALL BEARING - 85662H OR 700513R91 -

1шт.

9

3058978R1

TOOL

FOR BALL BEARING 3131903R91 -

1шт.

9

3058980R1

TOOL

FOR BALL BEARING - 85659H OR 700516R91 -

1шт.

9

3058981R1

TOOL

FOR BALL BEARING 787813R91 -

1шт.

9

3058977R1

TOOL

FOR OUTER RACE, TAPER ROLLER BRG 3057266R92

1шт.

9

3058979R1

TOOL

FOR OUTER RACE, TAPER ROLLER BRG 3057277R94

1шт.

10

3058989R2

TOOL

INSTALLING FOR NEEDLE BEARING 3057318R91 -

1шт.

11

3058974R1

TOOL

JUMPER FOR SEAL 3142022R91, 3142023R91, 3142404R91, 3142405R91, 3142410R91, 3142411R91

2шт.

11

3058973R1

TOOL

JUMPER, FOR SEAL 3131160R91

1шт.

12

3058972R91

TOOL

SPARE PART ALIGNING

4шт.

13

3058969R1

SPINDLE

PRESSURE

1шт.

14

3058967R11

PULLER

TOOL, - WITH 8-13 -

1шт.

450517

BOLT,Hex, 3/8" - 16 x 4 3/4", Gr 5

2шт.

187953

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

2шт.

15

3139468R91

SPACER

GAUGE, DISTANCE, SPLINE SHAFT SETTING

1шт.

16

3058958R11

PULLER

TOOL, PTO

1шт.

17

3058955R11

PULLER

TOOL, CLUTCH HOUSING

1шт.

190256

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

2шт.

18

3217862R91

TOOL, SUPPORT, DIFFERENTIAL

1шт.

931096R1

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8, Full Thd

1шт.

934783R1

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8, Full Thd

1шт.

100016

NUT,M10 x 1.5, Cl 8

1шт.

933133R1

WASHER,M10.5 ID x 20 OD x 2 Thk

1шт.

19

3216042R1

TOOL

SPARE PART MOUNTING, FOR SPRING 3148768R93 -

1шт.

20

3223610R92

TOOL, MOUNTING, FOR SPRING 3220024R92 -

1шт.

21

3223609R1

TOOL

MOUNTING, FOR SPRING 3220024R92 -

1шт.
