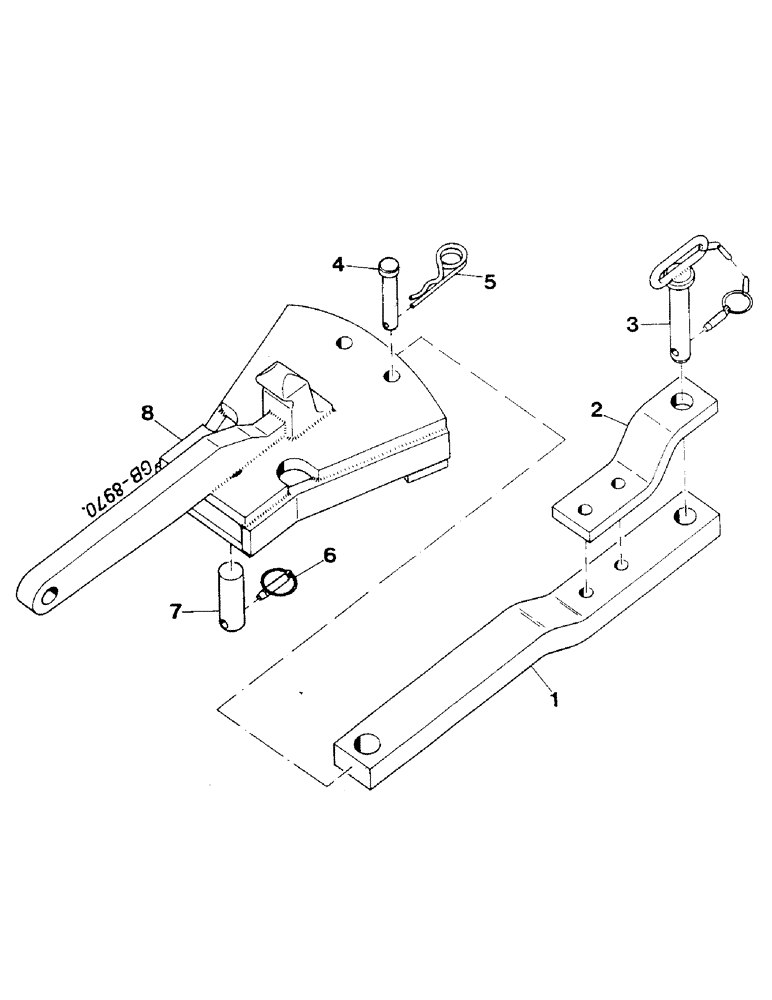

Запчасти Case IH 844S (09-13) - SWINGING DRAWBAR, FRENCH VERSION (12) - FRAME

1

3145988R2

DRAWBAR, SWINGING

1шт.

1

3145986R92

DRAWBAR, SWINGING

WITH 2-8

1шт.

2

3145989R1

SUPPORT ASSY.

CLAMP, SWINGING DRAWBAR

1шт.

931846R1

BOLT,Hex, M16 x 2 x 80mm, Cl 8.8

2шт.

905239R1

NUT,M16 x 1.5

M16

2шт.

3

3145990R1

HITCH PIN

1шт.

4

3145991R1

CENTER AXLE

PIN, CROSS

2шт.

5

3221454R1

SPLIT PIN/SAFETY PIN

CLIP, SPRING

2шт.

6

3221464R1

SPLIT PIN/SAFETY PIN

LINCH W/RING

1шт.

7

3145992R1

PIN

1шт.

8

3145987R2

DRAWBAR SUPPORT

BRACKET

1шт.
