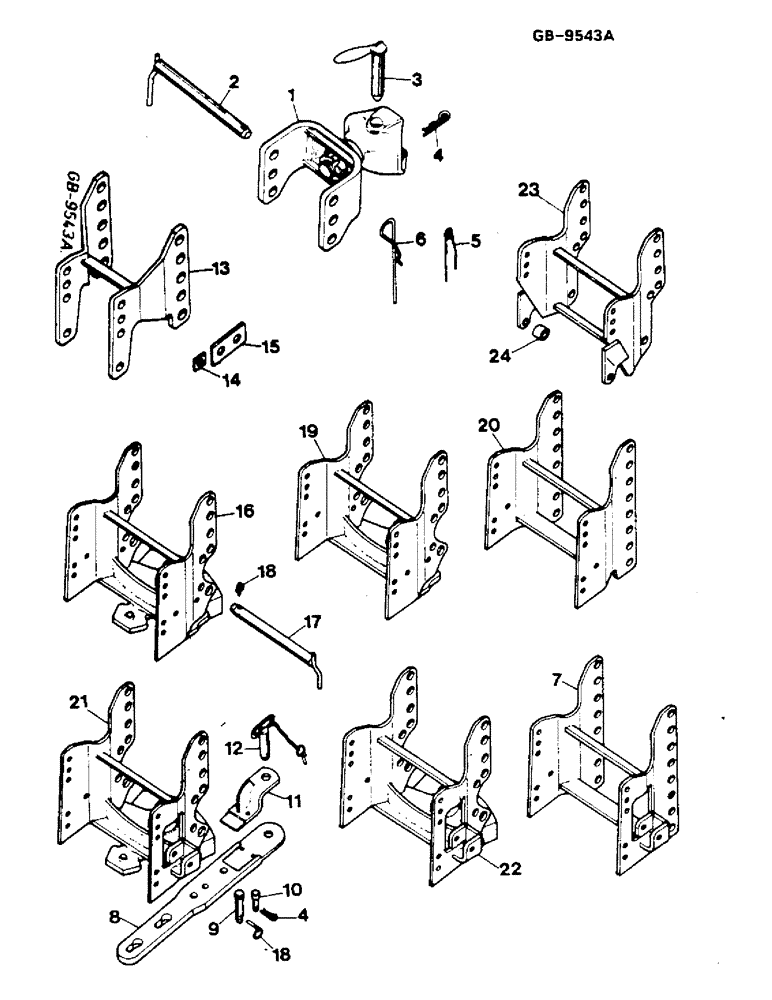

Запчасти Case IH 844S (09-08) - TRAILER HITCH, FRENCH VERSION (12) - FRAME
№
Артикул
Название
Примечание
Количество
3221448R92
HITCH ASSY
TRAILER, - WITH/ 1-4, 6, 13
1шт.
3401722R91
HITCH ASSY
TRAILER - WITH 1-4, 23, 24
1шт.
3221460R92
HITCH ASSY
TRAILER - WITH 1-5, 8-12, 16-18
1шт.
3221470R92
HITCH ASSY
TRAILER, - WITH 1-5, 17-19
1шт.
3225721R91
FUNNEL
FRAME HITCH, TRAILER - WITH 1-5, 6, 13-15
1шт.
3225674R91
HITCH ASSY, TRAILER
WITH 1-5, 20
1шт.
3226555R91
HITCH ASSY
TRAILER - WITH 1-5, 7
1шт.
3226558R91
HITCH ASSY
TRAILER - WITH/ 1-5, 17, 18, 22
1шт.
3226561R91
HITCH ASSY, TRAILER
WITH 1-5, 8-12, 17, 18 AND 21
1шт.
1
3221450R1
HITCH BRACKET
TRAILER
1шт.
2
3221451R1
LARGE PIN
PIN, LARGE CROSS
1шт.
3
3221453R1
PIN
TRAILER HITCH
1шт.
4
3221454R1
SPLIT PIN/SAFETY PIN
CLIP, SPRING
2шт.
5
3221462R1
LINCH PIN
CLIP, SPRING, CPTE W/CHAIN
1шт.
6
3221452R1
LINCH PIN
CLIP, SPRING
1шт.
7
3226556R1
HITCH BRACKET
FRAME, DRAW
1шт.
24873R1
BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8
10шт.
25547R1
WASHER,21/32" x 1 5/16" x .188", HDN
10шт.
8
3221465R1
BAR
DRAWBAR, SWINGING
1шт.
9
3221466R1
AXLE PIN
CROSS
1шт.
10
3221467R1
AXLE PIN
SPARE PART CROSS
1шт.
11
3221468R1
GUIDE
CLAMP, SWINGING DRAWBAR
1шт.
280264
BOLT,Hex, M14 x 50mm, Cl 8.8
2шт.
905238R1
THIN NUT,M14 x 2, Thin
2шт.
12
3221469R1
HITCH PIN
TRAILER
1шт.
13
3221449R1
HITCH BRACKET
SUPPORT
1шт.
24875R1
BOLT,Hex, 5/8" - 11 x 2", Gr 8
1шт.
25547R1
WASHER,21/32" x 1 5/16" x .188", HDN
AS REQUIRED
1шт.
14
3221491R2
BAR
SPACER
2шт.
24877R1
BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8
6шт.
15
3225722R1
SHIM
2шт.
24891R1
BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 8
4шт.
16
3221461R1
FUNNEL
FRAME DRAW
1шт.
24873R1
BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8
10шт.
28044R1
BOLT
5/8 X 38 MM
2шт.
25547R1
WASHER,21/32" x 1 5/16" x .188", HDN
10шт.
17
3221463R1
PIN
CROSS
1шт.
18
3221464R1
SPLIT PIN/SAFETY PIN
LINCH
2шт.
19
3221471R1
HITCH BRACKET
FRAME, DRAW
1шт.
24873R1
BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8
10шт.
28044R1
BOLT
5/8 X 38 MM
2шт.
25547R1
WASHER,21/32" x 1 5/16" x .188", HDN
10шт.
20
3225675R1
FUNNEL
FRAME DRAW
1шт.
24873R1
BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8
10шт.
25547R1
WASHER,21/32" x 1 5/16" x .188", HDN
10шт.
21
3226562R1
FUNNEL
FRAME DRAW
1шт.
24873R1
BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8
10шт.
25547R1
WASHER,21/32" x 1 5/16" x .188", HDN
10шт.
22
3226559R1
FUNNEL
FRAME DRAW
1шт.
24873R1
BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8
10шт.
25547R1
WASHER,21/32" x 1 5/16" x .188", HDN
10шт.
23
3401723R1
HITCH BRACKET
FRAME, DRAW
1шт.
24873R1
BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8
6шт.
26505R1
BOLT,Hex, 5/8" - 11 x 2 1/8", Gr 8
BOLT, 5/8 X 32 MM
2шт.
25547R1
WASHER,21/32" x 1 5/16" x .188", HDN
8шт.
24
3401724R1
RING
RING, SPACER
2шт.
Выбрано товаров: 56
