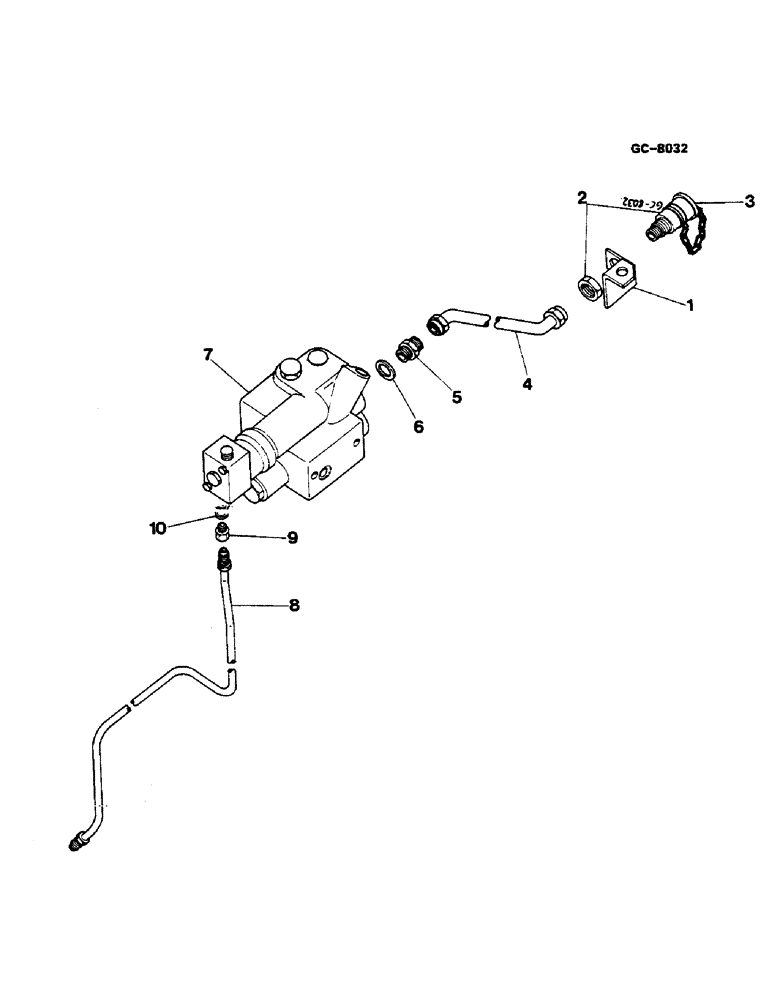

Запчасти Case IH 844S (10-83) - HYDRAULIC TRAILER BRAKE (07) - HYDRAULICS

1

3145495R1

BRACKET

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

2

3131463R91

QUICK MALE COUPLING

WITH 3

1шт.

3

3147728R1

PLUG

CAP, COUPLING, BREAK-AWAY

1шт.

4

3145496R1

TUBE

1шт.

5

3058449R1

HYD CONNECTOR,M16 x 1.5 x M18 x 1.5

1шт.

6

933155R1

SEALING RING,M16 x 20 x 1.5

1шт.

7

3145492R92

VALVE

BRAKE - SEE BRAKE VALVE -

1шт.

930980R1

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

930911R1

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

1шт.

930805R1

BOLT,Hex, M8 x 1.25 x 110mm, Cl 8.8

2шт.

930915R1

BOLT,Hex, M8 x 1.25 x 140mm, Cl 8.8

1шт.

930916R1

BOLT,Hex, M8 x 1.25 x 150mm, Cl 8.8

2шт.

931083R1

BOLT,Hex, M8 x 1.25 x 175mm, Cl 8.8

1шт.

930917R1

BOLT,Hex, M8 x 1.25 x 190mm, Cl 8.8

2шт.

931082R1

BOLT,Hex, M8 x 1.25 x 230mm, Cl 8.8

2шт.

103320

LOCK WASHER,5/16"

As Required

1шт.

3078483R1

O-RING,2.5mm Thk x 15mm ID

1шт.

8

3145497R1

TUBE

1шт.

9

3141145R1

UNION

1шт.

10

933697R1

SEALING RING,M10 x 13.5 x 1

1шт.
