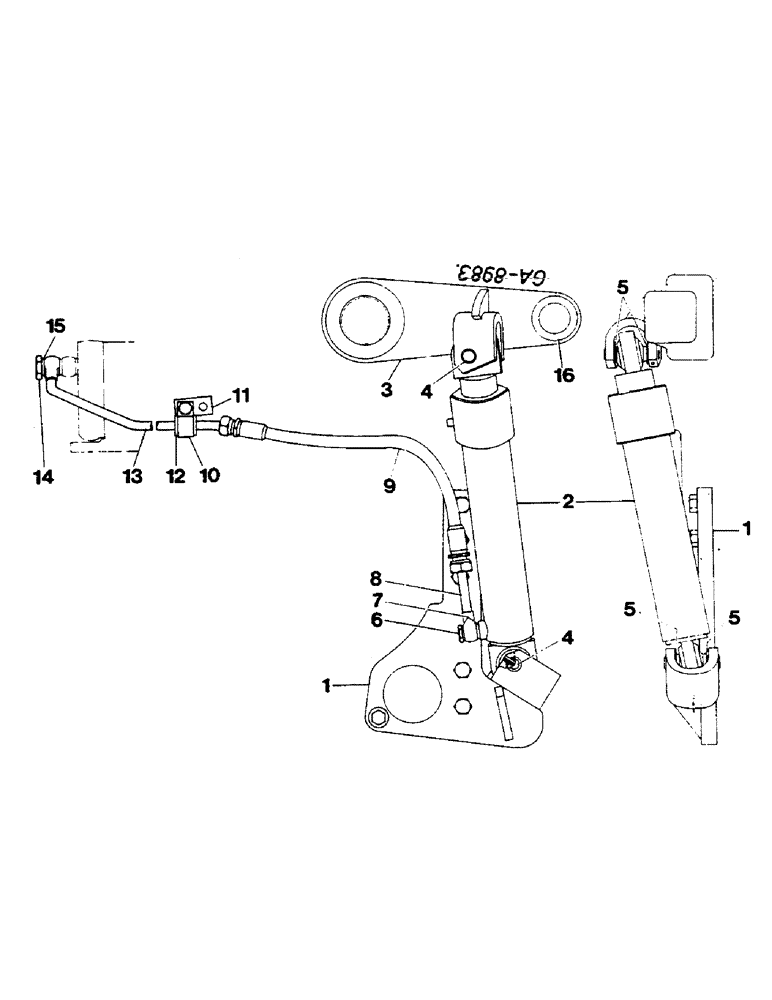

Запчасти Case IH 844S (10-76) - AUXILIARY CYLINDER (07) - HYDRAULICS

1

3147539R91

SUPPORT

1шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

5шт.

21047R1

HEX SOC SCREW,5/8"-11 x 1 3/4"

1шт.

1

3147546R91

SUPPORT

- PITON FIXE - - SEE DRAWBAR, FRAME -

1шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

As Required

1шт.

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

3шт.

25528R1

NUT,5/8"-11, G8

3шт.

21047R1

HEX SOC SCREW,5/8"-11 x 1 3/4"

1шт.

2

CYLINDER, - SEE AUXILIARY CYLINDER -

1шт.

3

3147541R91

ROCKER ARM

WITH 16

1шт.

4

3147039R1

PIN,19mm OD x 75mm L

2шт.

932448R1

LOCK PIN,M6 x 16, Slotted

2шт.

934830R1

LOCK PIN,M3.5 x 16, Slotted

2шт.

5

615168R1

WASHER

20 X 38 X 3 MM - AS REQUIRED

1шт.

5

16066R1

WASHER

20 X 38 X 1.5 MM - AS REQUIRED

1шт.

6

930241R1

BANJO BOLT,M16 x 1.5 x 36mm

HOLLOW

1шт.

7

933721R1

SEALING RING,M16 x 22 x 1.5

2шт.

8

3146593R1

PIPE,110 mm Length

1шт.

9

3146594R1

HYDRAULIC HOSE,10.00 mm ID x 450.00 mm

1шт.

10

710492R1

CLAMP

1шт.

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

131402H

WASHER

1шт.

11

3147545R1

BAR

25 X 50 X 5 MM

1шт.

11

3220129R1

SUPPORT

SPARE PART BAR, 25 X 65 X 2 MM

1шт.

12

3146596R1

GROMMET

1шт.

13

3147544R2

TUBE,355, 140 mm Length

1шт.

14

786958R1

SCREW,M18 x 1.5 x 1.5mm

HOLLOW

1шт.

15

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

16

3217427R91

BUSHING

SET OF TWO

1шт.
