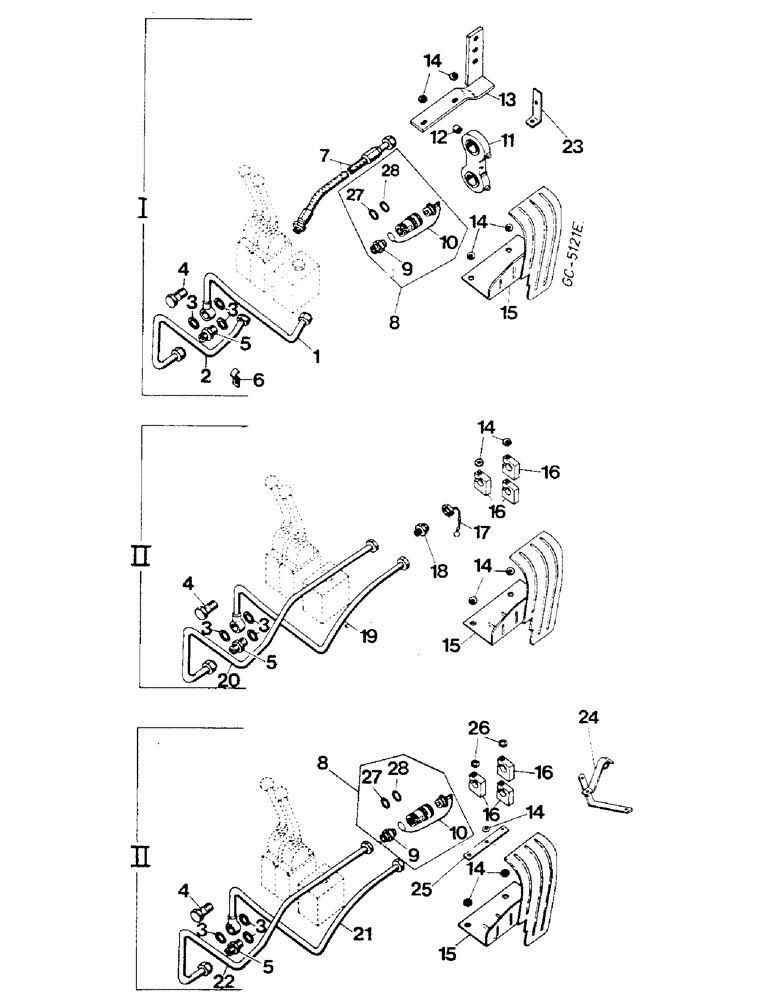

Запчасти Case IH 844S (10-71) - QUICK COUPLING, SELF SEALING COUPLING (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
3145922R1
TUBE
FOR CONTROL VALVE - I -
1шт.
QUICK COUPLING
1шт.
1
3145924R1
TUBE
FOR CONTROL VALVE - II -
1шт.
QUICK COUPLING
1шт.
2
3145923R1
TUBE
FOR CONTROL VALVE - I - - ADDITIONAL USED FOR DOUBLE ACTING VALVES -
1шт.
QUICK COUPLING
1шт.
2
3145925R1
TUBE
FOR CONTROL VALVE - II - - ADDITIONAL USED FOR DOUBLE ACTING VALVES -
1шт.
QUICK COUPLING
1шт.
3
3051337R1
SEALING RING,M18 x 24mm OD x 1.5mm Thk
As Required
1шт.
4
930259R1
BANJO BOLT,M18 x 1 x 42mm
HOLLOW - AS REQUIRED
1шт.
5
3058415R1
UNION
AS REQUIRED
1шт.
6
3132075R2
CLAMP
AS REQUIRED
1шт.
QUICK COUPLING
1шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
1шт.
9635082
NUT,5/16" - 18, Gr 5
1шт.
7
3145918R1
HOSE
AS REQUIRED
1шт.
QUICK COUPLING
1шт.
8
3058147R91
COUPLING, BREAK AWAY
QUICK CONNECTING - AS REQUIRED
1шт.
QUICK COUPLING
1шт.
FOR TRACTOR WITH CAB
1шт.
9
3059127R1
UNION
AS REQUIRED
1шт.
QUICK COUPLING
1шт.
FOR TRACTOR WITH CAB
1шт.
10
3059128R1
CAP
AS REQUIRED
1шт.
QUICK COUPLING
1шт.
FOR TRACTOR WITH CAB
1шт.
11
3134739R1
HOLDER
BREAK-AWAY COUPLING
1шт.
179849
BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5
1шт.
179850
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5
1шт.
933335R1
LOCK WASHER,M10
1шт.
114503
JAM NUT,Jam, 3/8"-16, G5
1шт.
QUICK COUPLING
1шт.
12
3142206R1
SPACER, - AS REQUIRED
1шт.
QUICK COUPLING
1шт.
13
3145920R91
SUPPORT
LH
1шт.
QUICK COUPLING
1шт.
13
3145921R91
SUPPORT
RH
1шт.
QUICK COUPLING
1шт.
NLS
NO LONGER SERVICED
2шт.
14
50793H
WASHER
AS REQUIRED
1шт.
15
3147604R92
SHROUD
LH
1шт.
15
3147605R92
SHROUD
RH
1шт.
180118
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5
2шт.
24839R1
BOLT,Hex, 3/8" - 16 x 3/4", Gr 8
2шт.
16
786929R2
BRACKET
HOLDER, - AS REQUIRED
1шт.
SELF SEALING COUPLING
1шт.
FOR TRACTOR WITH CAB
1шт.
186288
BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5
1шт.
179850
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5
1шт.
186277
BOLT,Hex, 3/8" - 16 x 2 3/8", Gr 5
1шт.
103321
LOCK WASHER,3/8"
1шт.
102635
NUT,3/8"-16, G5
As Required
1шт.
SELF SEALING COUPLING
1шт.
FOR TRACTOR WITH CAB
1шт.
17
3134962R1
PLUG
CAP, - AS REQUIRED
1шт.
SELF SEALING COUPLING
1шт.
18
3141597R91
COUPLING
SELF SEALING, WITH CAP
1шт.
18
3141598R91
COUPLING
SELF SEALING, WITH CAP - AS REQUIRED - OPTIONAL
1шт.
SELF SEALING COUPLING
1шт.
FOR TRACTOR WITH CAB
1шт.
19
30145487R2
TUBE, FOR CONTROL VALVE - I -
1шт.
SELF SEALING COUPLING
1шт.
19
3148477R2
TUBE
FOR CONTROL VALVE - II -
1шт.
SELF SEALING COUPLING
1шт.
20
3148478R2
TUBE
FOR CONTROL VALVE - I - - ADDITIONAL USED FOR DOUBLE ACTIING VALVES -
1шт.
SELF SEALING COUPLING
1шт.
20
3148479R2
TUBE
FOR CONTROL VALVE - II - - ADDITIONAL USED FOR DOUBLE ACTING VALVES -
1шт.
SELF SEALING COUPLING
1шт.
21
3221740R1
TUBE
FOR CONTROL VALVE - I -
1шт.
FOR TRACTOR WITH CAB
1шт.
21
3221742R1
TUBE
FOR CONTROL VALVE - II -
1шт.
FOR TRACTOR WITH CAB
1шт.
22
3221741R1
TUBE
FOR CONTROL VALVE - I - - ADDITIONAL USED FOR DOUBLE ACTING VALVES -
1шт.
FOR TRACTOR WITH CAB
1шт.
22
3221743R2
TUBE
FOR CONTROL VALVE - II - - ADDITIONAL USED FOR DOUBLE ACTING VALVES -
1шт.
FOR TRACTOR WITH CAB
1шт.
23
3139467R1
HOLDER
1шт.
QUICK COUPLING
1шт.
24
3223618R92
SUPPORT
HOLDER
1шт.
FOR TRACTOR WITH CAB
1шт.
25
3221744R1
HOLDER
1шт.
NLS
NO LONGER SERVICED
2шт.
FOR TRACTOR WITH CAB
1шт.
26
20285H
WASHER
AS REQUIRED
1шт.
FOR TRACTOR WITH CAB
1шт.
27
3138441R1
O-RING
AS REQUIRED
1шт.
QUICK COUPLING
1шт.
FOR TRACTOR WITH CAB
1шт.
28
3138442R1
RING
BACK-UP
1шт.
QUICK COUPLING
1шт.
FOR TRACTOR WITH CAB
1шт.
Выбрано товаров: 92
