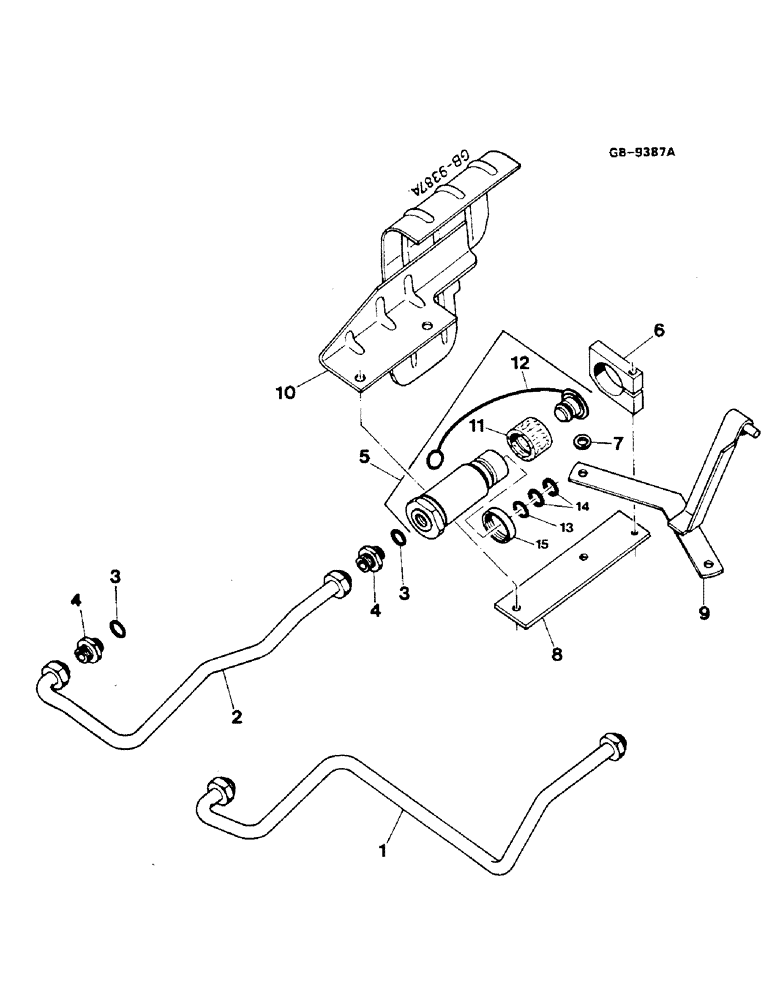

Запчасти Case IH 844S (10-68) - BREAK-AWAY COUPLING (07) - HYDRAULICS

1

3229952R1

TUBE

FOR CONTROL VALVE - I -

1шт.

1

3229953R1

TUBE

FOR CONTROL VALVE - I - - USED FOR DOUBLE ACTING VALVES -

1шт.

2

3229955R1

TUBE

FOR CONTROL VALVE - II -

1шт.

2

3229957R1

TUBE

FOR CONTROL VALVE - II - - USED FOR DOUBLE ACTING VALVES

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

As Required

1шт.

4

3058415R1

UNION

AS REQUIRED

1шт.

5

3229262R1

COUPLING, BREAK AWAY

AS REQUIRED

1шт.

6

3229263R1

BRACKET

HOLDER, BREAK-AWAY COUPLING

1шт.

30296R1

BOLT,Hex, M8 x 1.25 x 85mm, Cl 8.8

1шт.

930916R1

BOLT,Hex, M8 x 1.25 x 150mm, Cl 8.8

1шт.

43362

NUT,M8 x 1.25, Cl 10

1шт.

934236R1

LOCK WASHER,M8

1шт.

7

50793H

WASHER

WASHER

1шт.

8

3229958R1

SUPPORT

LH.

1шт.

9

3223618R92

SUPPORT

RH

1шт.

NLS

NO LONGER SERVICED

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

10

3147604R92

SHROUD

LH

1шт.

10

3147605R92

SHROUD

RH

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

24839R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

11

3223300R1

RING, DUST - AS REQUIRED

1шт.

12

3233299R1

CAP

AS REQUIRED

1шт.

13

3404086R1

O-RING

1шт.

14

3138442R1

RING

BACK-UP

2шт.

15

3399469R1

RING

MARKED, GREEN

1шт.

15

3399470R1

RING

MARKED, BLUE

1шт.

15

3399471R1

RING

SPARE PART MARKED, GREY

1шт.

15

3399472R1

RING

SPARE PART MARKED, BROWN

1шт.
