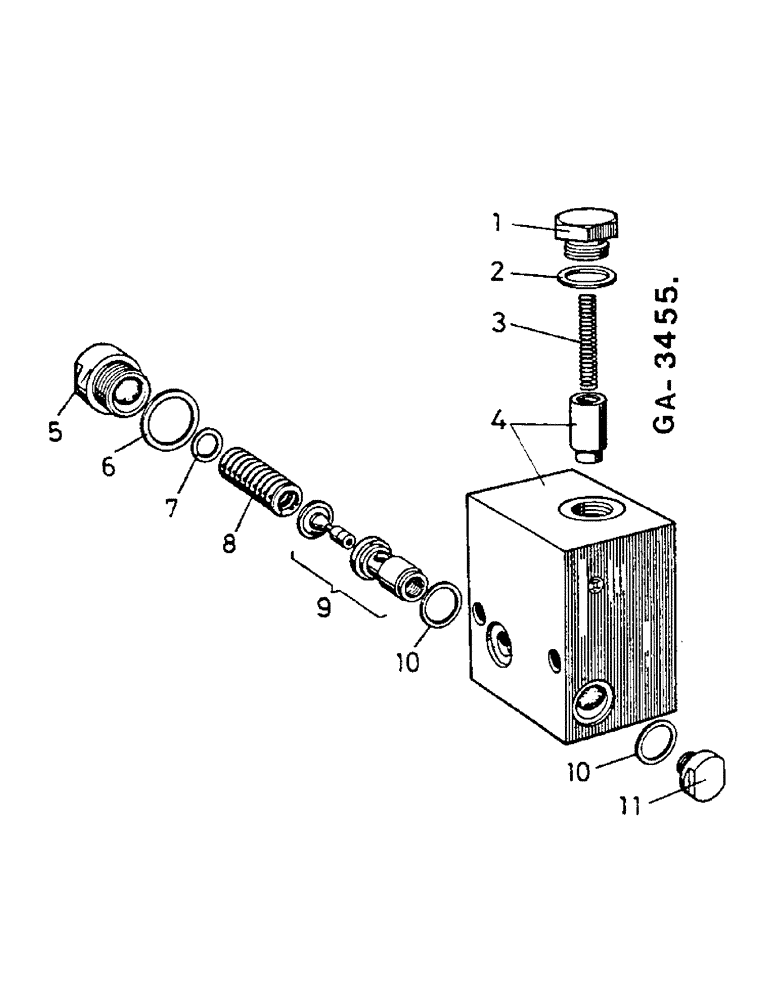

Запчасти Case IH 844S (10-66) - MOUNTING BLOCK (07) - HYDRAULICS

3134342R91

VALVE

BLOCK, MOUNTING - CONSISTS OF ITEMS 1-11 -

1шт.

1

PLUG

1шт.

2

RING, PACKING

1шт.

3

3055827R1

SPRING

1шт.

4

- ORDER 3 132 342 R91

1шт.

5

PLUG

1шт.

6

RING, PACKING

1шт.

7

3055824R1

WASHER

SHIM, 0.3 MM

1шт.

7

3055825R1

WASHER

SHIM, 0.7 MM - AS REQUIRED

1шт.

8

3055823R1

SPRING

1шт.

9

3055819R91

VALVE

SAFETY

1шт.

10

RING, PACKING

2шт.

11

PLUG

1шт.

3225769R91

SEAL KIT

SET, SEALING - WITH 2, 6, 10 - AS REQUIRED

1шт.
