(10-64) - DOUBLE ACTING CONTROL VALVE

Запчасти Case IH 844S (10-64) - DOUBLE ACTING CONTROL VALVE (07) - HYDRAULICS

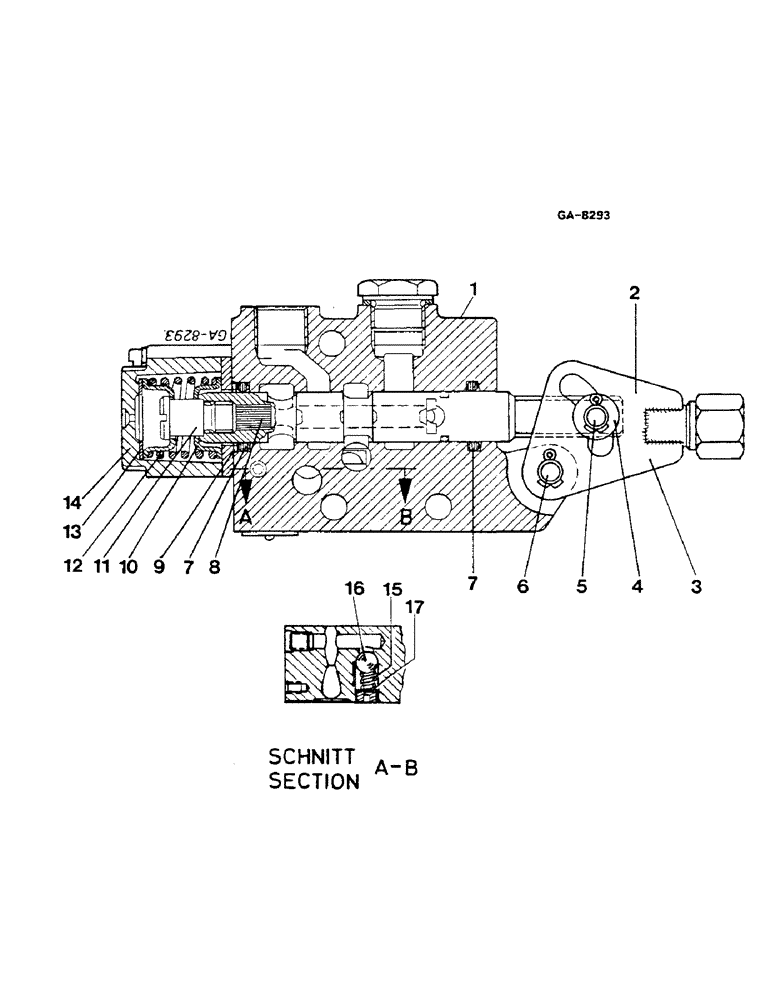

Схема запчастей Case IH 844S - (10-64) - DOUBLE ACTING CONTROL VALVE (07) - HYDRAULICS
2
15
16
8
10
5
14
13
6
11
3
1
4
17
9
12
7
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3059907R91

VALVE

CONTROL, - FOR DOUBLE ACTING POWER CYLINDER - CONSISTS OF ITEMS 1 THRU 17 - - AS REQUIRED -

1шт.

3225762R91

SEAL KIT

REPAIR - W/ITEMS 7 THRU 9 - - AS REQUIRED -

1шт.

3225763R91

PACKAGE, REPAIR

KIT, REPAIR - W/ITEM 15 THRU 17 - - AS REQUIRED -

1шт.

2

BEARING, SHIFTER HEAD

1шт.

3

LEVER

1шт.

4

WASHER

2шт.

5

PIN

1шт.

6

PIN

1шт.

7

SEAL

2шт.

8

PLUG

1шт.

9

WASHER

1шт.

10

CAP, SPRING

2шт.

11

3078431R1

BOLT

SPECIAL

1шт.

12

3225765R1

SPRING

1шт.

13

3078434R1

WASHER

AS REQUIRED

1шт.

14

COVER

1шт.

15

SPRING

1шт.

16

BALL, STEEL

1шт.

17

PLUG

1шт.
