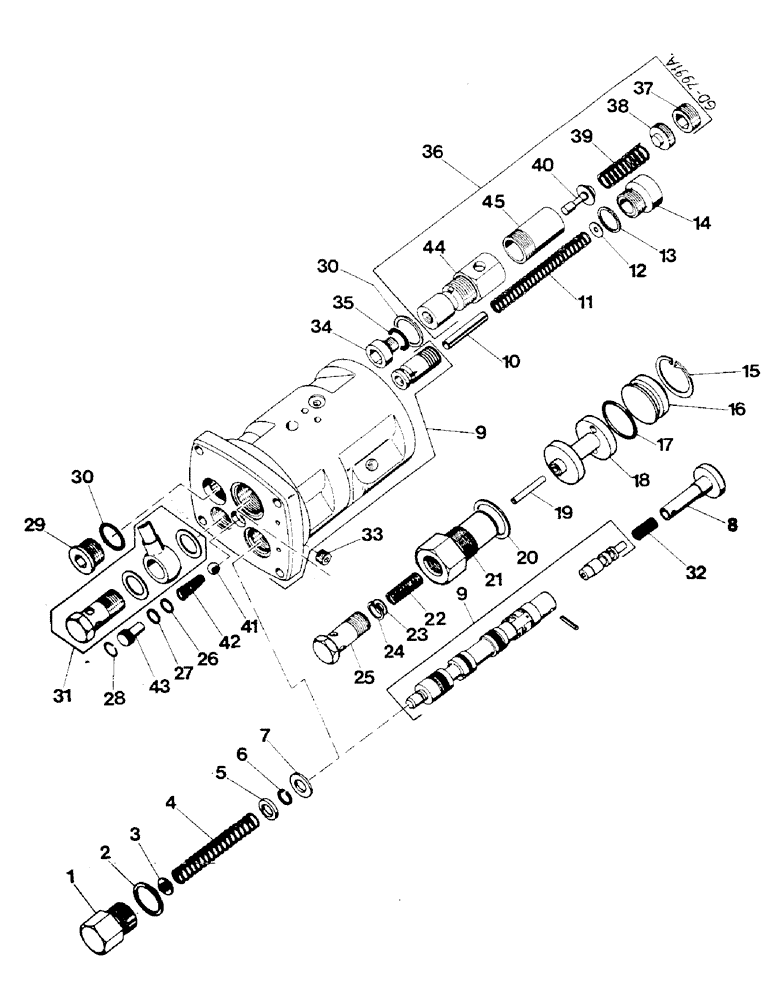

Запчасти Case IH 844S (10-57) - DRAFT CONTROL VALVE (-XXX) (07) - HYDRAULICS

3217457R92

VALVE

CONTROL, - ORDER 3145178R92

1шт.

932625R1

LOCK PIN,M3 x 8, Slotted

1шт.

3225058R91

PACKAGE

KIT, REPAIR - WITH 10-12, 14, 29, 33

1шт.

3225059R91

PACKAGE, REPAIR

KIT, REPAIR - WITH 15, 16, 18, 19

1шт.

3225060R91

PACKAGE

KIT, REPAIR - OVERSIZE - - WITH 15, 16, 18, 19

1шт.

3225061R91

PACKAGE

KIT, REPAIR - WITH 1, 3-8, 32

1шт.

3225062R91

PACKAGE

KIT, REPAIR - WITH 26-28, 41-43

1шт.

3225063R91

VALVE, CHECK

KIT, REPAIR - WITH 21-24

1шт.

3225064R91

PACKAGE, REPAIR

KIT, REPAIR - WITH 2, 13, 17, 25, 30, 35 - AS REQUIRED

1шт.

1

PLUG

1шт.

2

RING, PACKING

1шт.

3

SHIM, SPOOL - AS REQUIRED

1шт.

4

SPRING, SPOOL RETURN

1шт.

5

WASHER

1шт.

6

RING, SNAP

1шт.

7

WASHER

1шт.

8

TAPPET, SPOOL

1шт.

9

HOUSING, WITH SPOOL - ORDER 3145178R92

1шт.

10

PIN, ROLL

1шт.

11

3217300R1

SPRING

FLOW DIVIDER

1шт.

12

SHIM, FLOW DIVIDER SPRING

1шт.

13

RING, PACKING

1шт.

14

PLUG

1шт.

15

CIRCLIP

1шт.

16

RETAINER, O-RING

1шт.

17

O-RING

1шт.

18

PISTON, CONTROL BLOCK VALVE

1шт.

19

PIN, THRUST

1шт.

20

RING, PACKING, ON BLOCK VALVE

1шт.

21

BLOCK, VALVE, W/VALVE CONE

1шт.

22

SPRING, BLOCK VALVE

1шт.

23

SHIM, BLOCK VALVE SPRING

1шт.

24

CIRCLIP

1шт.

25

SCREW, HOLLOW

1шт.

26

O-RING

1шт.

27

RING, BACK-UP

1шт.

28

CIRCLIP

1шт.

29

PLUG, M20

1шт.

30

718957R1

SEALING RING,M20 x 24 x 1.5

PACKING

2шт.

31

SCREW, HOLLOW SEE HYDRAULIC PUMP, CONTROL VALVE, OIL LINES -

1шт.

32

SPRING

1шт.

33

NOZZLE, DAMPING

1шт.

34

3217463R1

PLUG

SPARE PART

1шт.

35

3145895R1

O-RING,2.4mm Thk x 13.3mm ID, 70 Duro

1шт.

36

3217459R92

VALVE

RELIEF

1шт.

37

NUT, LOCK

1шт.

38

PLUG

1шт.

39

SPRING

1шт.

40

VALVE, POPPET

1шт.

41

BALL NON-RETURN VALVE

1шт.

42

SPRING

1шт.

43

PIN, THRUST

1шт.

44

SEAT, VALVE

1шт.

45

SLEEVE

1шт.
