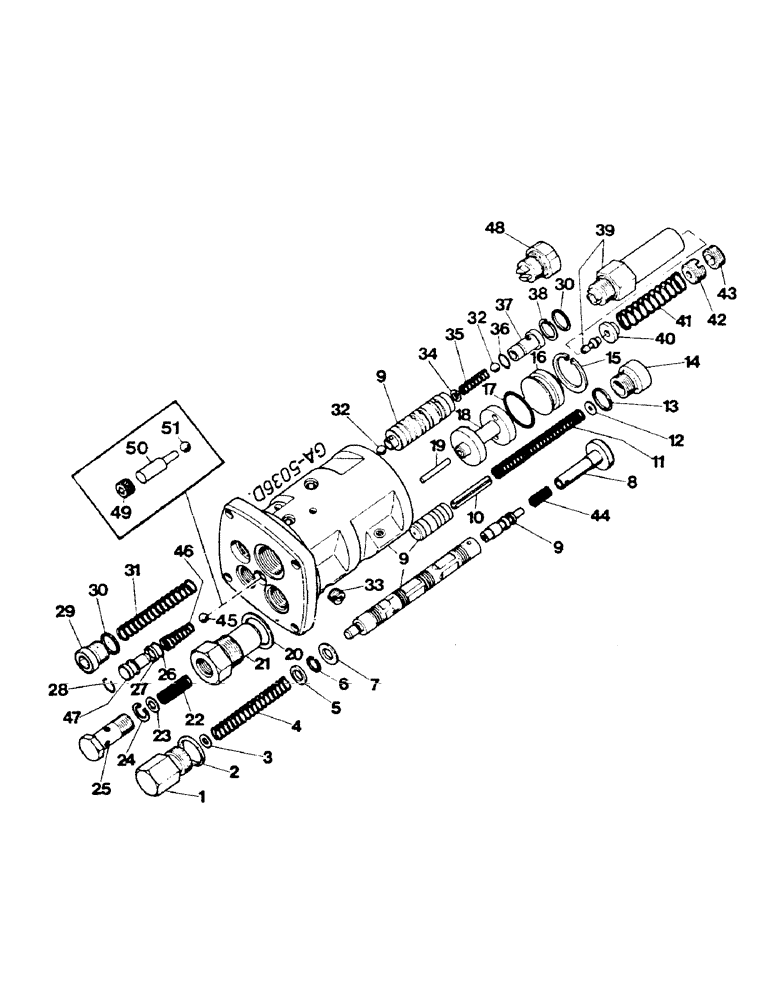

Запчасти Case IH 844S (10-52) - DRAFT CONTROL VALVE (-XXX) (07) - HYDRAULICS

3145178R92

VALVE, CONTROL

W/CUT-OUT VALVE

1шт.

932625R1

LOCK PIN,M3 x 8, Slotted

ROLL 3 X 28 MM

1шт.

3225058R91

PACKAGE

KIT, REPAIR WITH 10-12, 14, 29, 31, 33

1шт.

3225059R91

PACKAGE, REPAIR

KIT, REPAIR WITH 15, 16, 18, 19

1шт.

3225060R91

PACKAGE

KIT, REPAIR - OVERSIZE - WITH 15, 16, 18, 19

1шт.

3225061R91

PACKAGE

KIT, REPAIR WITH 1, 3-8, 44

1шт.

3225062R91

PACKAGE

KIT, REPAIR WITH 26-28, 45-47

1шт.

3225063R91

VALVE, CHECK

KIT, REPAIR, WITH 21-24

1шт.

3225064R91

PACKAGE, REPAIR

GASKET - W/ITEMS 2, 13, 17, 20, 25, 30, 36 - AS REQUIRED

1шт.

1

3145186R1

PLUG

ORDER 3225061R91

1шт.

2

717183R1

O-RING,2mm Thk x 19mm ID, 70 Duro

ORDER 3225064R91

1шт.

3

3053113R1

SHIM

SPOOL - ORDER 3225061R91 - AS REQUIRED

1шт.

4

3145185R1

SPRING

SPOOL RETURN - ORDER 3225061R91

1шт.

5

3054834R1

LOCK WASHER

ORDER 3225061R91

1шт.

6

3054835R1

RING

SNAP - ORDER 3225061R91

1шт.

7

3053110R2

WASHER

ORDER 3225061R91

1шт.

8

3145183R1

TAPPET

SPOOL - ORDER 3225061R91

1шт.

3148793R1

ROLL PIN

ROLL 4.25 X 14 MM - ORDER 3145178R92

1шт.

10

932724R1

LOCK PIN,M7 x 45, Slotted

ORDER 3225058R91

1шт.

11

3217300R1

SPRING

FLOW DIVIDER - ORDER 3225058R91

1шт.

12

3053131R1

SHIM

FLOW DIVIDER SPRING - ORDER 3225058R91

1шт.

13

933222R1

SEALING WASHER,M18 x 22 x 1.5

Order 3225058R91

1шт.

14

3056341R2

PLUG

ORDER 3225058R91

1шт.

15

933327R1

SNAP RING,M36, Int

CIRCLIP, - ORDER 3225059R91 OR 3225060R91

1шт.

16

3053118R4

SPARE PART O-RING - ORDER 3225059R91 OR 3225060R91

1шт.

17

3051823R1

O-RING

- ORDER 3225064R91

1шт.

18

3053115R2

PISTON ASSY.

CONTROL BLOCK VALVE - ORDER 3225059R91 OR 3225060R91

1шт.

19

3053120R1

DOWEL,4mm OD x 32mm L

THRUST - ORDER 3225059R91 OR 3225060R91

1шт.

20

933608R1

SEALING RING,M26 x 31 x 2

On block valve - Order 3225064R91

1шт.

21

3145187R91

BLOCK

VALVE, W/VALVE CONE - ORDER 3225063R91

1шт.

22

3147495R1

SPARE PART BLOCK VALVE - ORDER 3225063R91

1шт.

23

3053125R1

SHIM

BLOCK VALVE SPRING 15 X 7.2 X 1 MM -

1шт.

23

3148794R1

SHIM

BLOCK VALVE SPRING 16.1 X 7.1 X 1 MM - - ORDER 3225063R91

1шт.

24

3053126R1

SNAP RING,M16, Int

ORDER 3225063R91

1шт.

25

930259R1

BANJO BOLT,M18 x 1 x 42mm

HOLLOW - ORDER 3225064R91

1шт.

26

3147862R1

O-RING

ORDER 3225062R91

1шт.

27

3147861R1

BACK-UP RING

ORDER 3225062R91

1шт.

28

934265R1

RETAINER

CIRCLIP, - ORDER 3 25062R91

1шт.

29

3056332R2

PLUG

ORDER 3225058R91

1шт.

30

718957R1

SEALING RING,M20 x 24 x 1.5

PACKING - ORDER 3225064R91

1шт.

31

3147493R1

VALVE SPRING

SAFETY - ORDER 3225058R91

1шт.

32

17006R1

BALL

VALVE

2шт.

33

3216758R91

NOZZLE CAP

DAMPING - ORDER 3225058R91

1шт.

34

3136924R1

WASHER

0.1 MM

1шт.

34

933722R1

SHIM

0.5 MM

1шт.

34

3136921R1

WASHER

0.2 MM - AS REQUIRED

1шт.

35

3134341R1

SPRING

NON RETURN VALVE

1шт.

36

3142195R1

O-RING

ORDER 3225064R91

1шт.

37

3148791R1

BODY

VALVE

1шт.

38

933403R1

SNAP RING,M12, Int

CIRCLIP

1шт.

39

3134338R92

VALVE, PRESSURE RELI

EF WITH 40-43

1шт.

40

3136928R1

BUSHING

IF FITTED

1шт.

41

3142175R1

SPRING

IF FITTED

1шт.

42

3136929R1

PLUG

IF FITTED

1шт.

43

3059465R1

NUT

SPARE PART LOCK IF FITTED

1шт.

44

3147496R1

SPRING

ORDER 3225061R91

1шт.

45

17016R1

BALL,1/2" Dia

Order 3225062R91

1шт.

46

3147859R1

SPRING

ORDER 3225062R91

1шт.

47

3147860R1

PIN

THRUST - ORDER 3225062R91

1шт.

48

3220798R1

PLUG

1шт.

49

NOT-USED

1шт.

50

NOT-USED

1шт.

51

NOT-USED

1шт.
