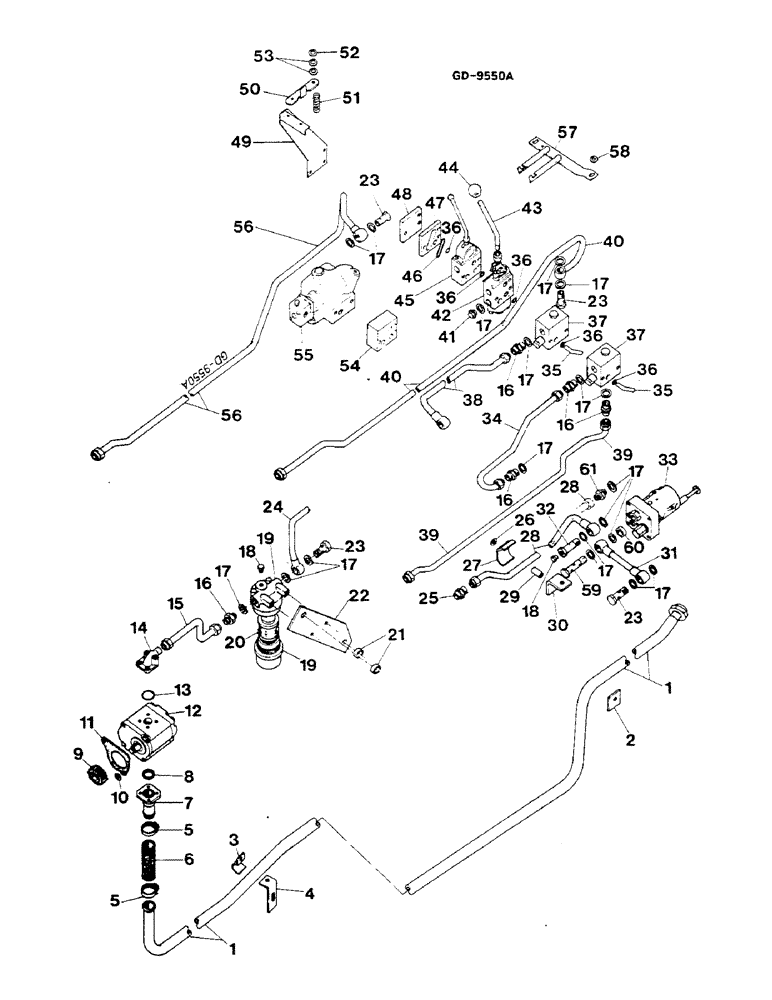

Запчасти Case IH 844S (10-41) - HYDRAULIC PUMP, CONTROL VALVES, OIL LINES (07) - HYDRAULICS

1

3145253R2

PIPE

SUCTION - 743/745S -

1шт.

1

3221747R1

PIPE

SUCTION - 743/745S - - ON TRACTORS WITH CAB -

1шт.

1

3145252R2

PIPE

SUCTION - 844S -

1шт.

1

3221749R1

LINE

PIPE, SUCTION - 844S - - ON UNITS WITH CAB -

1шт.

2

3220183R1

PLATE

SPARE PART 32 X 60 X 6 MM - ON TRACTORS WITH CAB -

1шт.

179803

BOLT,1/4" - 20 x 1 3/4", Gr 5

1шт.

103319

LOCK WASHER,1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

3

3133694R1

CLAMP

- ON TRACTORS WITH CAB -

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

102635

NUT,3/8"-16, G5

1шт.

4

3220222R1

SUPPORT

SPARE PART ANGLE, - ON TRACTORS WITH CAB -

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

1шт.

5

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

2шт.

6

3147010R1

HOSE

1шт.

7

3147009R1

FLANGE

CONNECTION, SUCTION PIPE

1шт.

931118R1

HEX SOC SCREW,M6 x 1 x 20mm, Cl 8.8

4шт.

933825R1

LOCK WASHER,M6

4шт.

8

3057400R1

O-RING,2.5mm Thk x 24mm ID, 70 Duro

1шт.

9

3057396TR1

GEAR, DRIVE - 20 TEETH

1шт.

10

20285H

WASHER

1шт.

11

3057397R3

GASKET

1шт.

12

PUMP, HYDRAULIC - SEE HYDRAULIC PUMP -

1шт.

3058427R1

STUD

3/8 X 120 MM

1шт.

20507R1

BOLT,Hex, 3/8" - 16 x 6 3/4", Gr 5

1шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

(3/8")

2шт.

21070R1

NUT,3/8"-16, G8

2шт.

13

3057401R1

O-RING,2.5mm Thk x 18mm ID, 70 Duro

1шт.

14

3057399R1

FLANGE

CONNECTION, PRESSURE PIPE

1шт.

931119R1

HEX SOC SCREW,M6 x 33mm, Cl 8.8

2шт.

931118R1

HEX SOC SCREW,M6 x 1 x 20mm, Cl 8.8

2шт.

933825R1

LOCK WASHER,M6

4шт.

15

3224470R1

TUBE

1шт.

15

3230191R1

TUBE, - FOR CANADA

1шт.

16

3058415R1

UNION

2шт.

17

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

As Required

1шт.

18

FOR444613

PLUG

AS REQUIRED

1шт.

19

3224668R91

FILTER

OIL, - WITH 18, 20 - AS REQUIRED

1шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

20

3224623R1

FILTER

INSERT

1шт.

21

3134145R1

BUSHING

SPACER

2шт.

22

3224473R1

PLATE

1шт.

170910

BOLT, 9/16 X 51 MM

2шт.

934066R1

WASHER

2шт.

23

930259R1

BANJO BOLT,M18 x 1 x 42mm

HOLLOW - AS REQUIRED

1шт.

24

3224471R2

PIPE

PRESSURE - 743/745S -

1шт.

24

3224472R2

PIPE

PRESSURE - 844S -

1шт.

24

3224474R2

PIPE

PRESSURE - 743/745S - - ON TRACTORS WITH CAB -

1шт.

24

3224475R2

PIPE

PRESSURE - 844S - - ON UNITS WITH CAB -

1шт.

25

3057803R1

HYD CONNECTOR,M22 x 1.5

1шт.

26

3055521R1

WASHER

2шт.

27

3146331R1

CLAMP

1шт.

27

3223106R1

CLAMP

ON UNITS WITH CAB -

1шт.

28

3145251R2

PIPE

PRESSURE OIL FILTER - DRAFT CONTROL VALVE USED WITH DRAFT CONTROL VALVE 3217457R92 AND 3145178R92 - (-XXX)

1шт.

28

3232860R1

PRESSURE USED WITH DRAFT CONTROL VALVE 3233852R91 (XXX-)

1шт.

28

3221746R1

PIPE

PRESSURE - FOR TRACTORS WITH CAB, USED WITH DRAFT CONTROL VALVE 3217457R92 AND 3145178R92 - (-XXX)

1шт.

28

3233861R1

PIPE

PRESSURE - FOR TRACTORS WITH CAB, USED WITH DRAFT CONTROL VALVE 3233852R91 - (XXX-)

1шт.

29

3146330R1

SPACER

SPARE PART

1шт.

30

3146332R1

ANGLE

CLAMP

1шт.

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

31

3057631R91

PIPE

CONNECTING USED WITH DRAFT CONTROL VALVE 3217457R92 AND 3145178R92 - (-XXX)

1шт.

31

3233858R1

PIPE

CONNECTING - USED W/DRAFT CONTROL VALVE (XXX-)

1шт.

32

3139133R1

PIPE FITTING

UNION, IF FITTED (-XXX) - USED W/DRAFT CONTROL VALVE 3217457R92 AND 3145178R92 -

1шт.

32

930259R1

BANJO BOLT,M18 x 1 x 42mm

HOLLOW (-XXX) - USED W/DRAFT CONTROL VALVE 3217457R92 AND 3145178R92 -

1шт.

33

VALVE, DRAFT CONTROL (-XXX) - SEE DRAFT CONTROL VALVE - 3145178R92, 3217475R92 -

1шт.

33

3233852R91

VALVE

DRAFT CONTROL (XXX-)

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

4шт.

103320

LOCK WASHER,5/16"

4шт.

34

3229956R1

PIPE

RETURN, TO DRAFT CONTROL - USED WITH 3229262R1 - - ON TRACTORS W/OUT CAB, USED WITH DRAFT CONTROL VALVE 3217457R92 AND 3145178R92 - (-XXX)

1шт.

34

3233864R1

PIPE

RETURN, TO DRAFT CONTROL (XXX-) - ON TRACTORS W/OUT CAB, USED WITH DRAFT CONTROL VALVE 3233852R91 -

1шт.

35

3058859R1

PIPE

RETURN

1шт.

36

3225027R91

GASKET KIT

O-RING, SET OF THREE AS REQUIRED -

1шт.

37

BLOCK, MOUNTING - SEE MOUNTING BLOCK -

1шт.

38

3145786R2

TUBE

RETURN, TO DRAFT CONTROL VALVE (-XXX) - USED WITH DRAFT CONTROL VALVE 3217457R92 AND 3145178R92 -

1шт.

38

3233863R1

PIPE

RETURN, TO DRAFT CONTROL VALVE (XXX-) - USED WITH DRAFT CONTROL VALVE 3233852R91 - 3233852R91 -

1шт.

38

3145494R1

TUBE

RETURN, TO DRAFT CONTROL VALVE (-XXX) - VERSION WITH HYDR. TRAILER BRAKE USED WITH DRAFT CONTROL VALVE 3217457R92 AND 3145178R92 -

1шт.

38

3233862R1

PIPE

SPARE PART RETURN, TO DRAFT CONTROL VALVE (XXX-) - VERSION WITH HYDR. TRAILER BRAKE USED WITH DRAFT CONTROL VALVE 3233852R91 -

1шт.

39

3229954R1

PIPE

PRESSURE OIL FILTER - MOUNTING BLOCK - USED WITH 3229262R1, FOR UNITS W/OUT CAB -

1шт.

40

3145785R1

TUBE

PRESSURE OIL FILTER - MOUNTING BLOCK -

1шт.

40

3221739R1

PIPE

PRESSURE OIL FILTER - MOUNTING BLOCK - FOR TRACTORS WITH CAB

1шт.

41

933233R1

SNAP RING,M45, Int

PLUG, - AS REQUIRED

1шт.

42

VALVE, CONTROL, FOR DOUBLE ACTING POWER CYLINDER - THREE CONTOL POSTION - - SEE DOUBLE ACTING CONTROL VALVE - AS REQUIRED

1шт.

42

3229348R91

VALVE

CONTROL FOR DOUBLE ACTING POWER CYLINDER - FOUR CONTROL POSITIONS - - AS REQUIRED -

1шт.

43

3226921R1

LEVER

CONTROL - AS REQUIRED

1шт.

43

3059906R1

LEVER

CONTROL - FOR FRANCE -AS REQUIRED -

1шт.

43

3221738R1

LEVER

CONTROL ON UNITS WITH CAB - - AS REQUIRED

1шт.

44

3142351R1

BALL KNOB,32 MM x M10

BALL, LEVER - AS REQUIRED

1шт.

45

VALVE, CONTROL, FOR SINGLE ACTING POWER CYLINDER - SEE SINGLE ACTING CONTROL VALVE - AS REQUIRED

1шт.

46

3054999R1

O-RING

1шт.

47

3134814R1

PLATE

INTERMDIATE

1шт.

48

3134815R1

PLATE

COVER

1шт.

930980R1

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

934999R1

BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8, Full Thd

1шт.

930911R1

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

1шт.

3225838R1

BOLT,Hex, M8 x 1.25 x 105mm, Cl 8.8

1шт.

930805R1

BOLT,Hex, M8 x 1.25 x 110mm, Cl 8.8

2шт.

3225837R1

BOLT,Hex, M8 x 1.25 x 115mm, Cl 8.8

BOLT, M8 X 115 MM

2шт.

930915R1

BOLT,Hex, M8 x 1.25 x 140mm, Cl 8.8

1шт.

930916R1

BOLT,Hex, M8 x 1.25 x 150mm, Cl 8.8

2шт.

3225839R1

BOLT,Hex, M8 x 1.25 x 155mm, Cl 8.8

2шт.

931083R1

BOLT,Hex, M8 x 1.25 x 175mm, Cl 8.8

1шт.

930917R1

BOLT,Hex, M8 x 1.25 x 190mm, Cl 8.8

2шт.

931511R1

BOLT,Hex, M8 x 1.25 x 230mm, Cl 10.9

2шт.

103320

LOCK WASHER,5/16"

3шт.

49

3225833R91

SUPPORT

HOLDER, - AS REQUIRED

1шт.

50

3225836R1

LATCH

AS REQUIRED

1шт.

51

3145214R1

SPRING

AS REQUIRED

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

1шт.

9413946

LOCK NUT,1/4"-20, GA

AS REQUIRED

1шт.

52

3145213R1

WASHER

AS REQUIRED

1шт.

53

3058090R1

WASHER

AS REQUIRED

1шт.

54

3137736R1

SPACER

- TRACTORS W/OUT BRAKE VALVE -

1шт.

54

3229959R91

SPACER

- FOR TRACTORS WITH 3229262R1 -

1шт.

931103R1

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

120320

PLATE

SPARE PART WASHER, LOCK 8 MM

2шт.

55

VALVE, BRAKE SEE HYDRAULIC TRAILER BRAKE AND HYDRAULIC TRAILER BRAKE, MANUALLY OPERATED -

1шт.

56

3145493R1

TUBE

PRESSURE, OIL FILTER - BRAKE VALVE

1шт.

57

3229589R1

LATCH

- FOR TRACTORS WITH CAB -

1шт.

930161R1

BOLT,Hex, M8 x 55, 8.8

1шт.

930980R1

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

43362

NUT,M8 x 1.25, Cl 10

2шт.

58

934006R1

WASHER,M8 x 16 x 1.6

17 X 8.4 X 1.5 MM - FOR TRACTORS WITH CAB -

2шт.

58

934673R1

WASHER,M8.4 x 25 x 2

25 X 8.4 X 2.0 MM FOR TRACTORS WITH CAB

2шт.

59

930259R1

BANJO BOLT,M18 x 1 x 42mm

HOLLOW (-XXX) - USED W/DRAFT CONTROL VALVE 3217457R92 AND 3145178R92 -

1шт.

59

3233854R1

PIPE FITTING

SCREW, HOLLOW (XXX-) - USED W/DRAFT CONTROL VALVE 3233852R91 -

1шт.

60

3233859R1

SPACER

(XXX-) - USED W/DRAFT CONTROL VALVE 3233852R91 -

1шт.

61

3058415R1

UNION

(XXX-) - USED W/DRAFT CONTROL VALVE 3233852R91 -

1шт.
